Diamond Cutting Discs

Eco for Universal Segmented Diamond Cutting Disc

For small angle grinders

Eco for Universal Segmented Diamond Disc is the preferred choice for reliable cuts in general construction materials

  • Sintered cutting segments for good performance in a variety of materials
  • Suitable for use in concrete, brick, limestone and roofing tile
  • With 22.23 mm bore for standard locking nut angle grinders

Materials

Concrete
Reinforced concrete
Concrete building block
Lime and sand bricks
Solid brick
Select options

Diameter mm 2 options

Bore diameter mm 22.23

Cutting width mm 2.0

Choose a pack size 1 Pcs

Available product options (3)
from
4,932.00 AOA
Recommended retail price including VAT

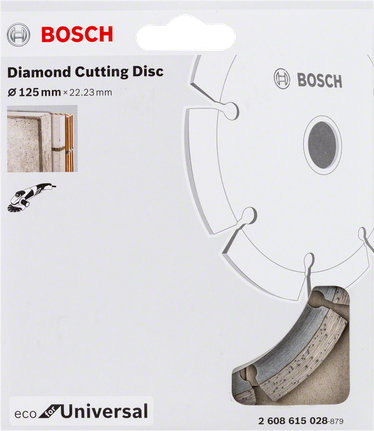

Eco for Universal Segmented Diamond Cutting Disc
from
4,932.00 AOA
Recommended retail price including VAT
For small angle grinders
imageAlt
imageAlt
imageAlt

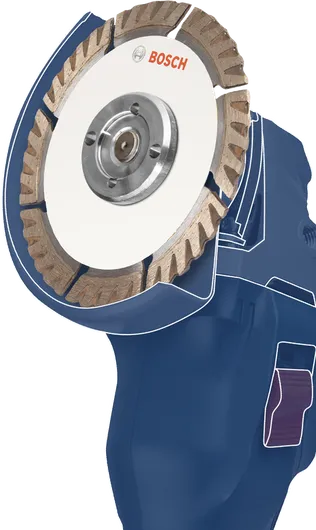

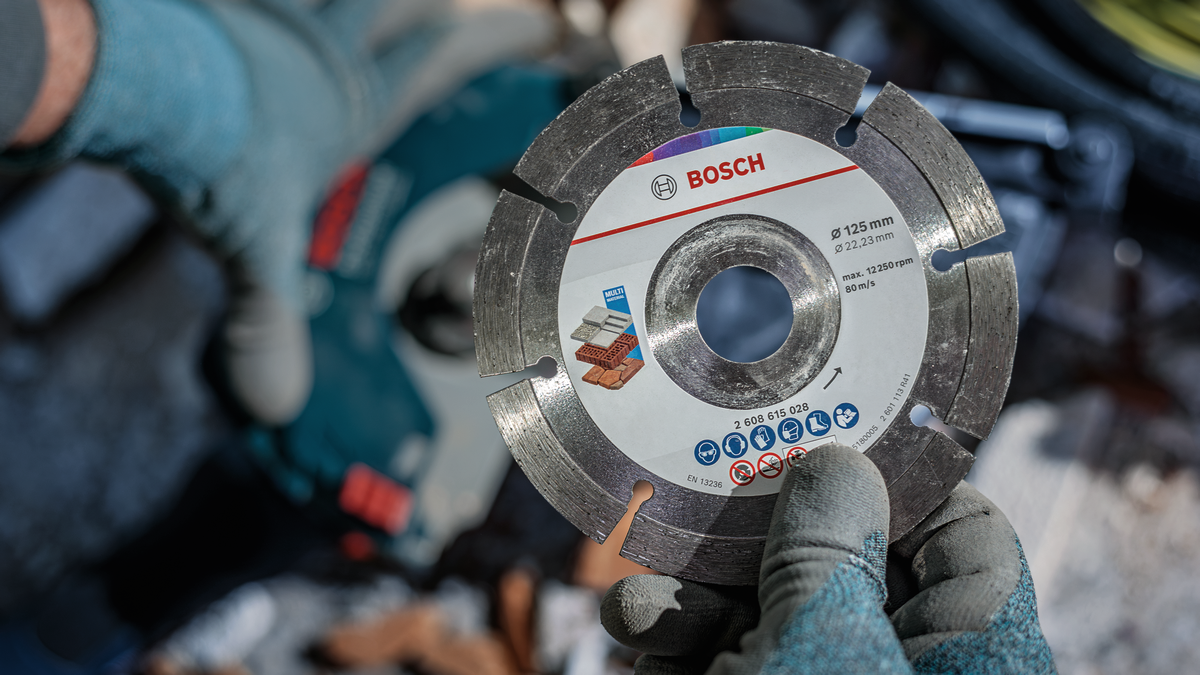

With 22.23 mm bore for standard locking nut angle grinders

For Reliable Cuts in General Construction Materials

Eco for Universal Segmented Diamond Disc is the preferred choice for reliable cuts in general construction materials

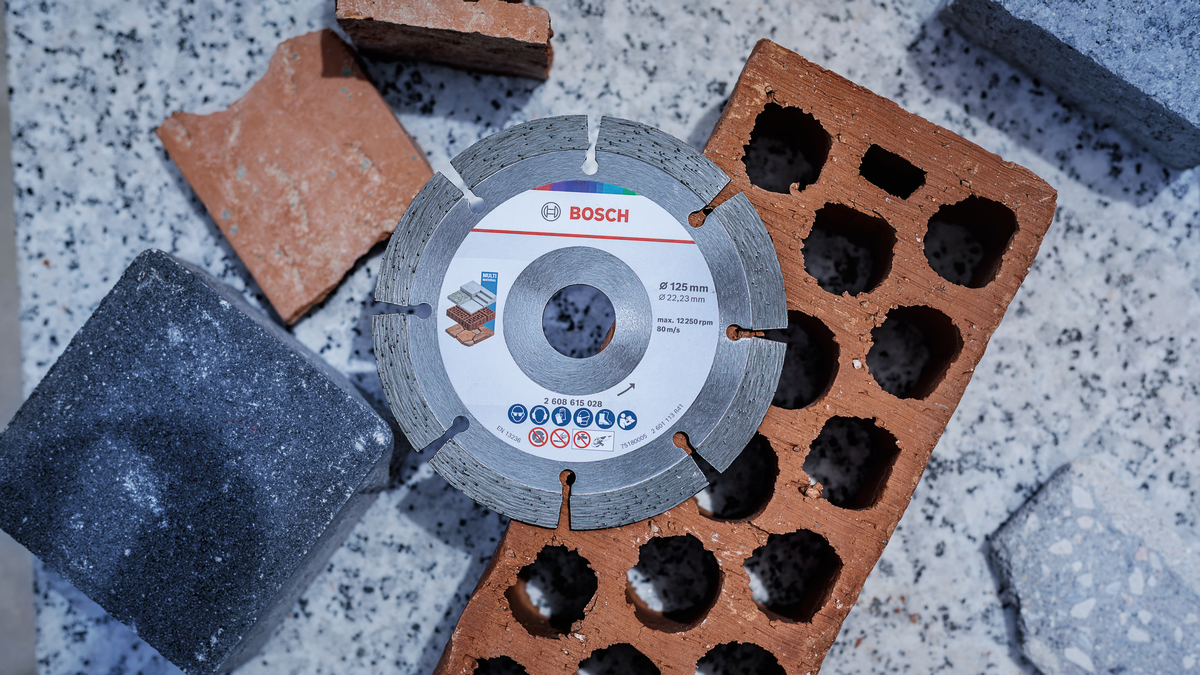

  • Suitable for use in concrete, brick, limestone and roofing tile

Product Options

Available product options: 3

Part number Diameter mm Bore diameter mm Cutting width mm Segment height mm Pack quantity Price

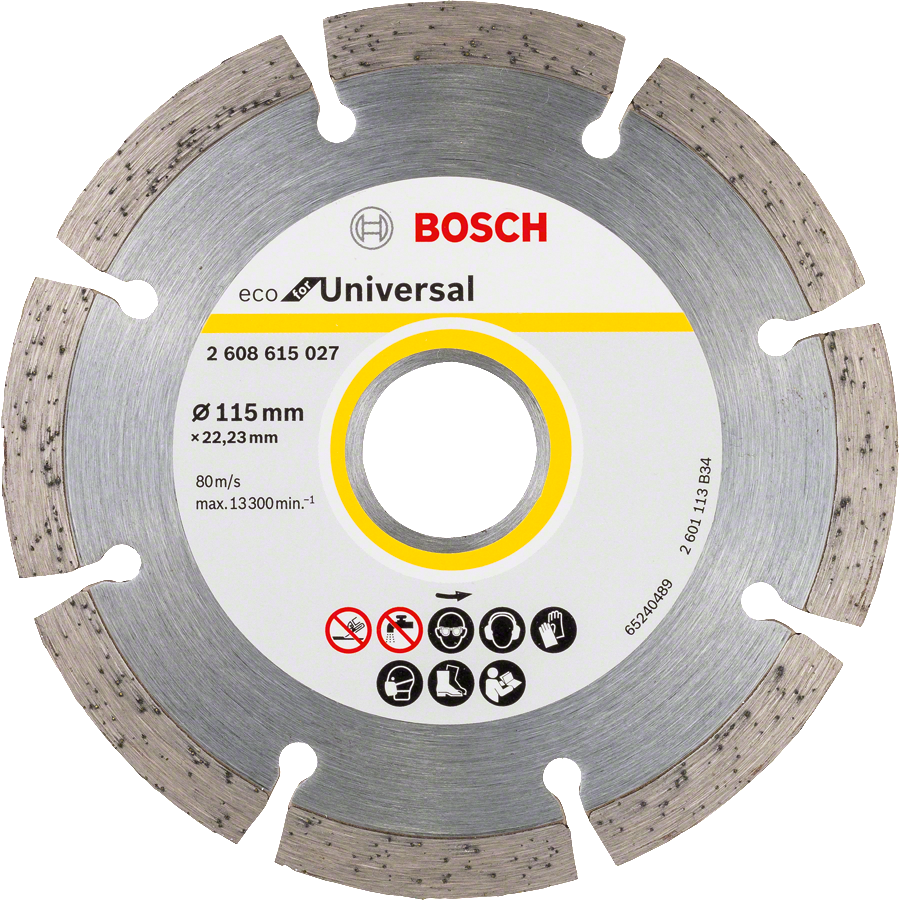

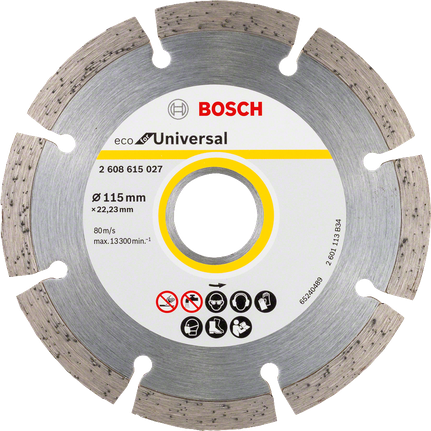

2 608 615 027 115 22.23 2.0 7 1 Pcs 4,932.00 AOA Find a local dealer

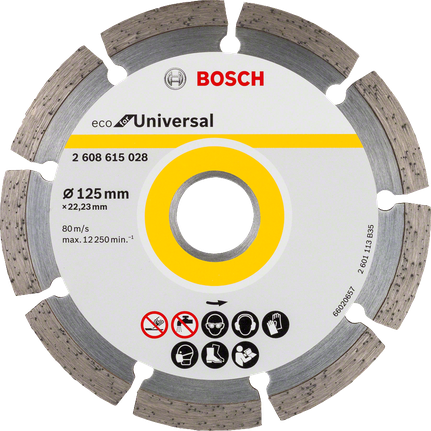

2 608 615 028 125 22.23 2.0 7 1 Pcs 5,178.00 AOA Find a local dealer

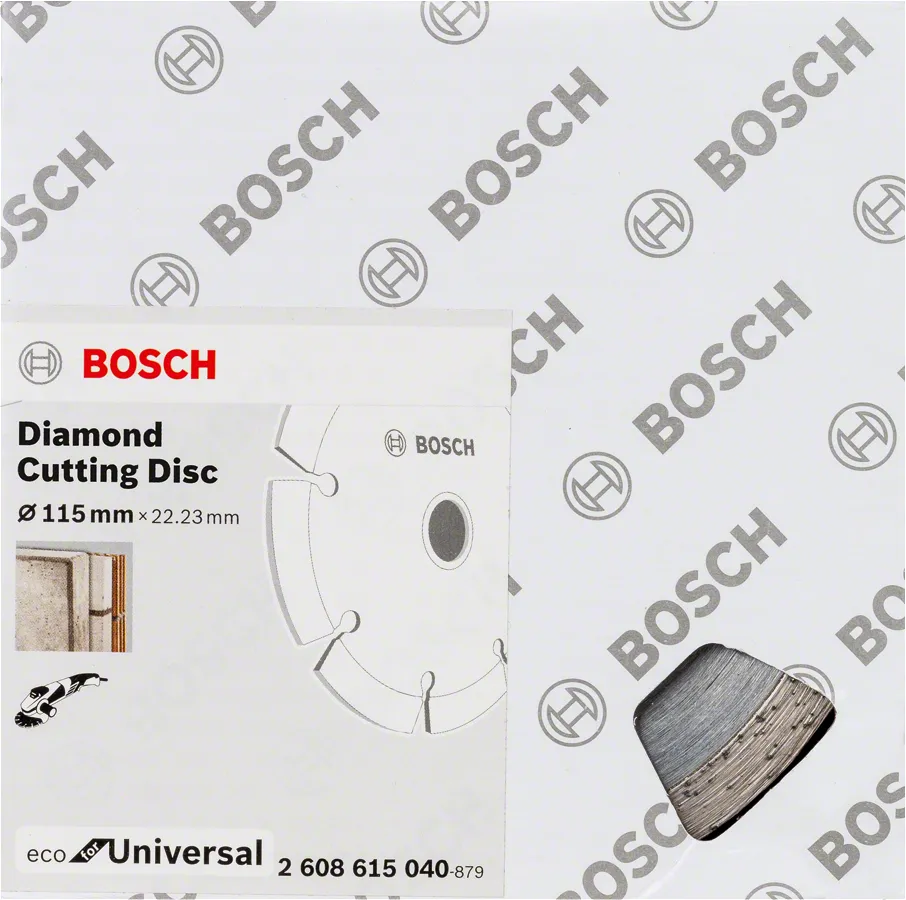

2 608 615 040 115 22.23 2.0 7 1 Pcs 44,699.00 AOA Find a local dealer

out of products

Frequently asked questions

Most Bosch accessories are also compatible with competitors' power tools - look out for the ‘Universal Brand Fit’ logo on the packaging.

Diamond cutting blades are developed for specific machines and their diameters, therefore you should always use the diameter that’s mentioned in the power tool manual.

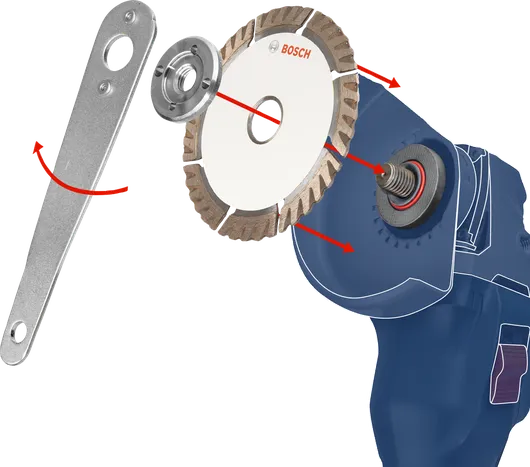

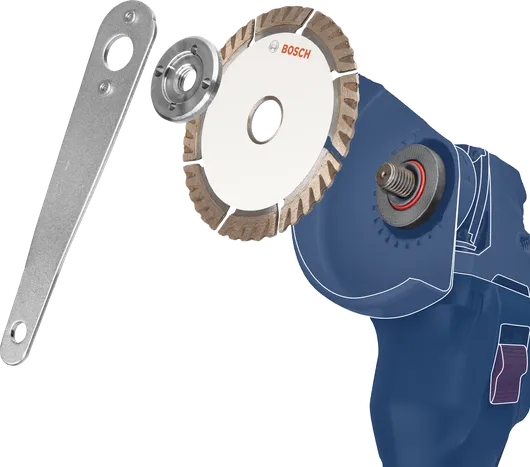

Never use a cutting disc without a flange. Use only the original Bosch nut and flange. Make sure you mount the flange on the correct side. You can use a BOSCH SDS click nut instead of the normal nut.

An indicator of the rotation direction is usually positioned on the head of the power tool. The rotation direction is also displayed on the label and the laser marking of the accessory. The rotation direction of the disc and the power tool has to match.

Never enlarge the cutting disc's borehole because the accessory is released only for specific machines. Diamond cutting discs are available with different boreholes and outer diameters - please choose a disc with the right dimensions for your machine and do not adapt them yourself.

No, you should only use blades that fit your power tool. Never remove the safety guard to fit a bigger diameter. The spindle should fit the disc's borehole.

Yes, reduction rings can be removed and you can use the disc for another machine type - both borehole diameters are displayed on the packaging. To press the removed reduction ring back into the blade, use a stable base to make sure you don't bend the blade. Do not insert a reduction ring if the product was delivered without one, and never use third party reduction rings.

Our products are generally only recommended for materials that are displayed on the packaging.

The EXPERT Diamond Metal Wheel has been specifically designed to cut metal; most other diamond cutting discs are not suitable. Some multi material discs like Best for Universal or Best for Concrete can be used to cut rebar inside reinforced concrete, but they should not be used for pure metal applications. Each accessory has the materials you should use it for displayed on the back of the packaging.

We don't currently have a glass-cutting diamond blade in our portfolio.

Diamond cutting blades are not designed for this application and might damage the tiles. We recommend using a Bosch oscillating multitool to remove the joints without damaging the tiles.

Diamond accessories don't expire and you can use them for a very long time. If you see a date on your diamond accessory, it's the manufacturing date we need to trace the product.

Slight vibrations are normal. They are due to the high power of the machine and the tolerances of the accessory. The system will automatically reduce the level of vibrations when you start using your tool. Stronger vibrations can be caused by the damage to the spindle or the blade itself. In this case, you'll need to replace these parts.

Bosch changed the naming of different performance classes in the past. Standard was called Professional, but it's the same product. We are currently updating the naming to Bosch, PRO and EXPERT.

Outer diameter x bore hole x thickness x segment height (e.g. 180 x 22.23 x 2.2 x 5)

Designed to cut tiles, the disc has continuous rims to reduce chipping, but with the hardest tiles even this is not always enough. The EXPERT HardCeramic tile disc is Bosch’s top performance diamond disc for hard tiles. Thanks to a series of technologies and design features it makes the cleanest cuts. In thicker tiles and stone slabs (over 10 mm), using a wet cutter and a designated tile blade will give you the best results.

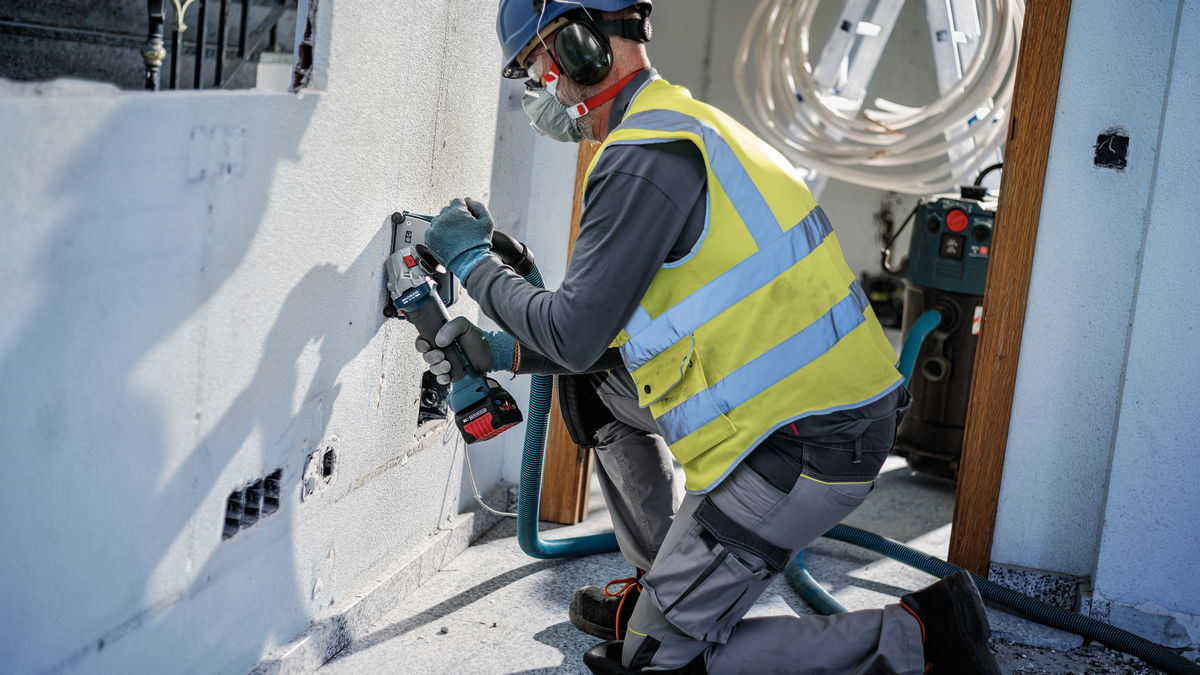

You need safety googles, ear protection, dust mask, working gloves and safety shoes to work with diamond cutting discs.

No, this is unsafe. You should inspect blades regularly and throw away damaged ones.

All products are released with the maximum possible RPM for their diameter. We recommend using the full RPM of your machine, provided it does not exceed the RPM displayed on the cutting disc.

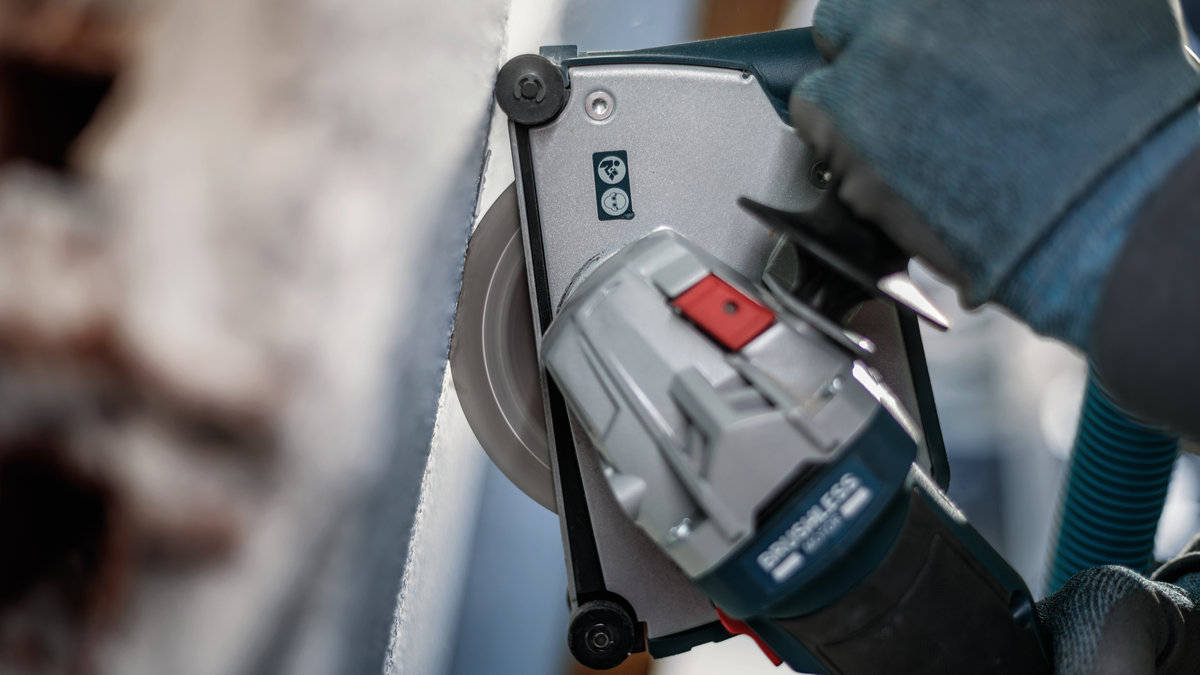

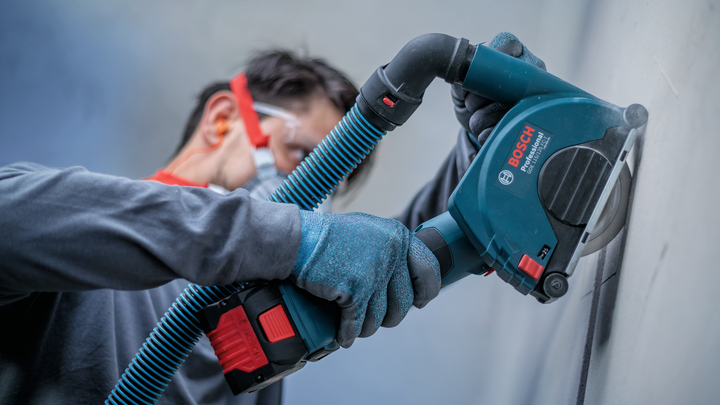

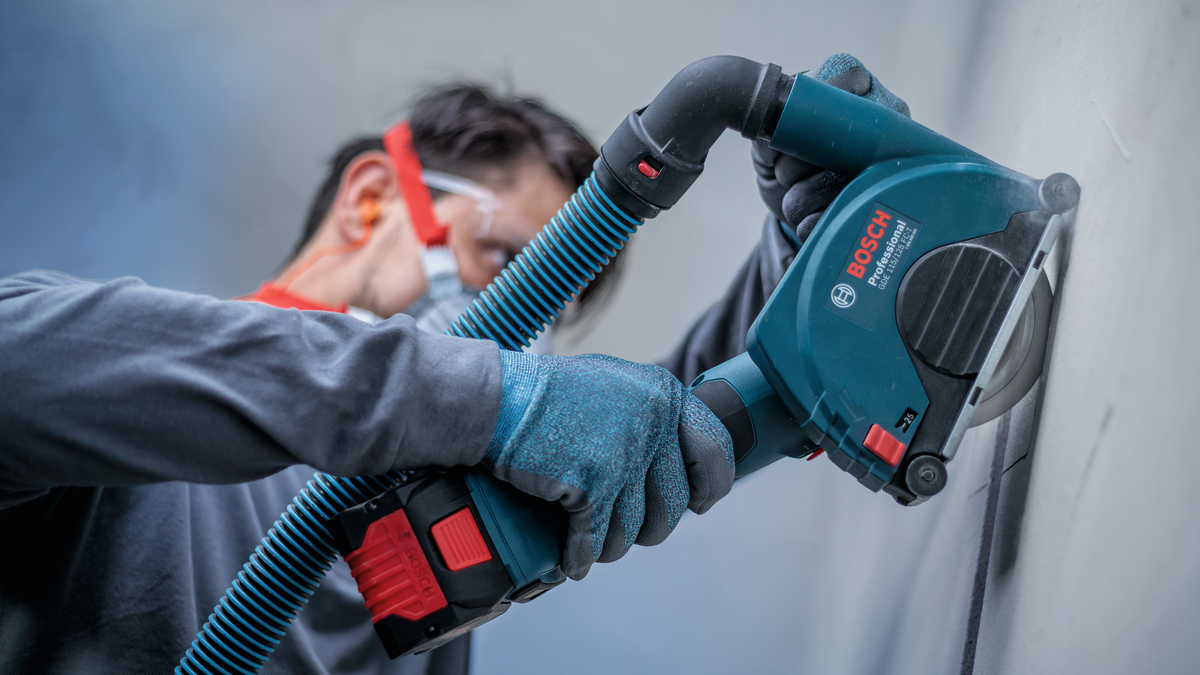

You should use safety guards with combined dust extraction linked to a vacuum cleaner. They are the best solution, as they keep you safe and reduce the amount of airborne dust. Never use the angle grinder with no safety guard!

Diamond grits can get damaged through overheating or wear out with time, leading to slow cutting speeds. However, diamond discs are self-sharpening: a few cuts in abrasive materials like concrete or stone should bring new diamond edges to the surface of the matrix, improving the cutting speed.

Please always read the manuals of your power tool and accessories to ensure you can use them for either wet or dry cutting. For example, electric angle grinders are not suitable for wet cutting due to the risk of an electric shock – no matter which accessory you're using.

No. Diamond cutting discs are only designed to cut. Side grinding can damage the blades and lead to major injuries. Please use suitable diamond cup wheels for grinding.
