Metal Drill Bits

HSS AlTiN Step Drill Bit, 3-Flat Shank

For rotary drills/drivers

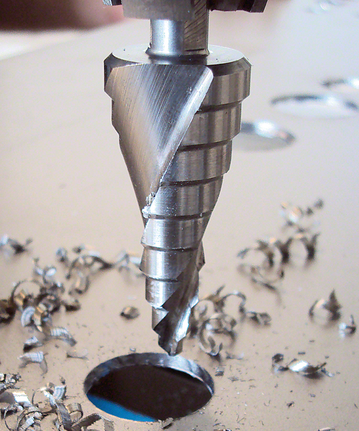

HSS AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • Pre-punching is not necessary as the split-point tip allows for an easy start
  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • 3-flat shank prevents slipping in the chuck of rotary drills and drivers

Materials

Metal pipes and profiles
Non-ferrous metals
Aluminium
Plastics
Metal sandwich
Select options

Step diameter (range) mm 4-12

Step height mm 4

Shank diameter mm 6.0

Choose a pack size 1 Pcs

Available product options (1)
31,300.00 AOA
Recommended retail price including VAT
Check availability on location Find a local dealer Check availability on location

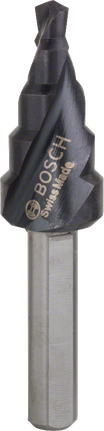

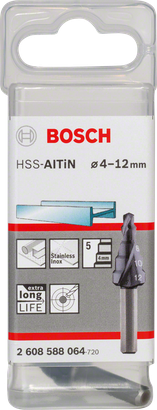

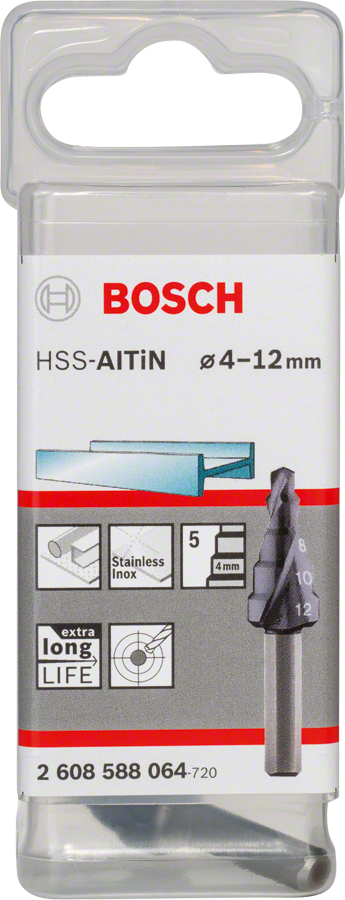

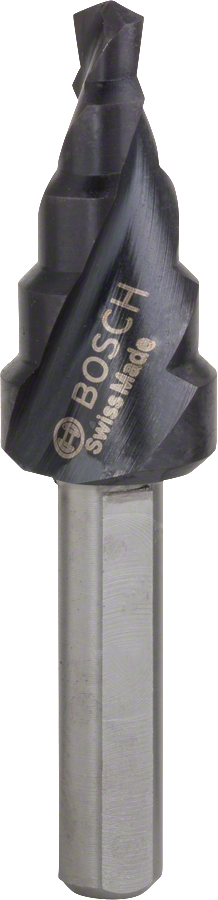

HSS-AlTiN step drill bits 2 608 588 064
31,300.00 AOA
Recommended retail price including VAT

Smooth Drilling in Several Diameters with One Drill Bit

HSS AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • Highest cutting smoothness due to axial and radial relief grinding
  • Made of HSS for a long lifetime. Laser-markings for hole diameters.
  • AlTiN coating for maximum lifetime, laser-markings for hole diameters, 3-flat shank for high-torque transmission
View more

Product Options

Available product options: 1

Part number Version Step diameter (range) mm Step height mm Shank diameter mm Pack quantity Price
2 608 588 064 HSS-AlTiN 4-12 4 6.0 1 Pcs 31,300.00 AOA Find a local dealer
