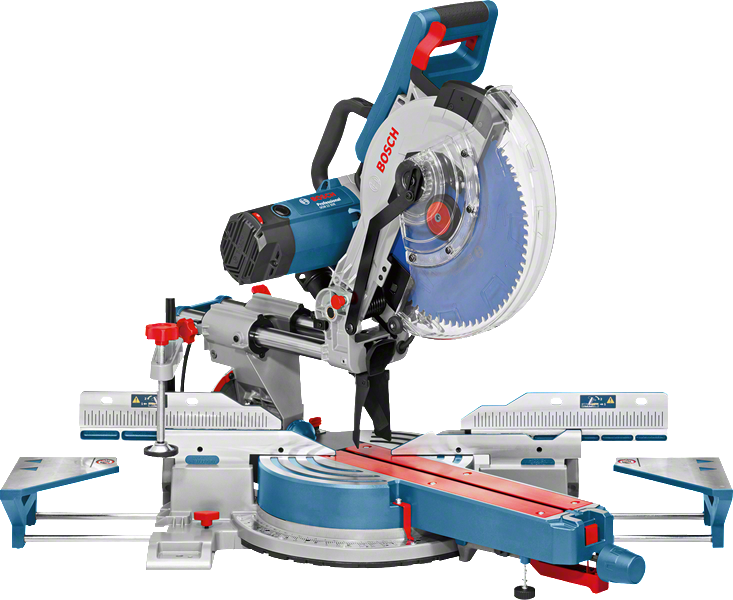

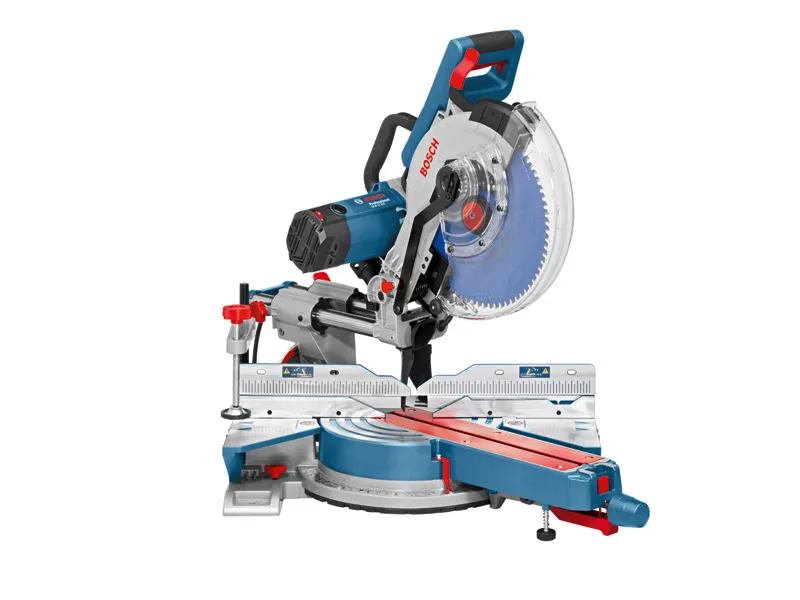

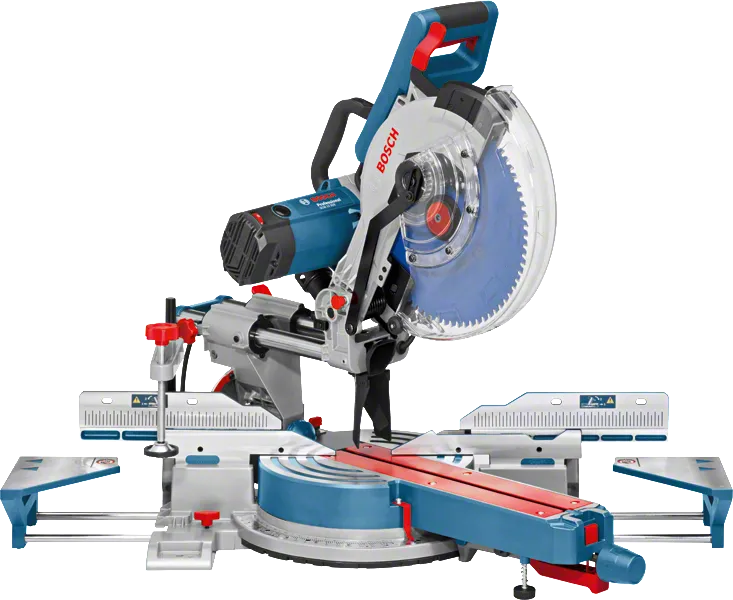

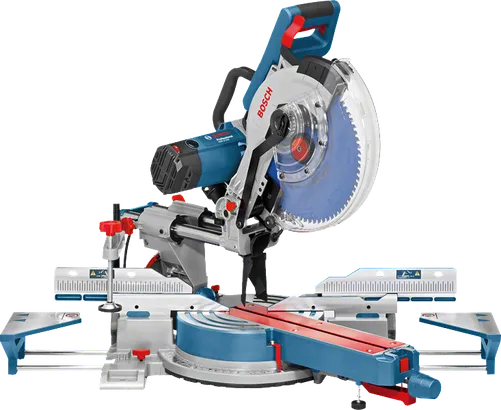

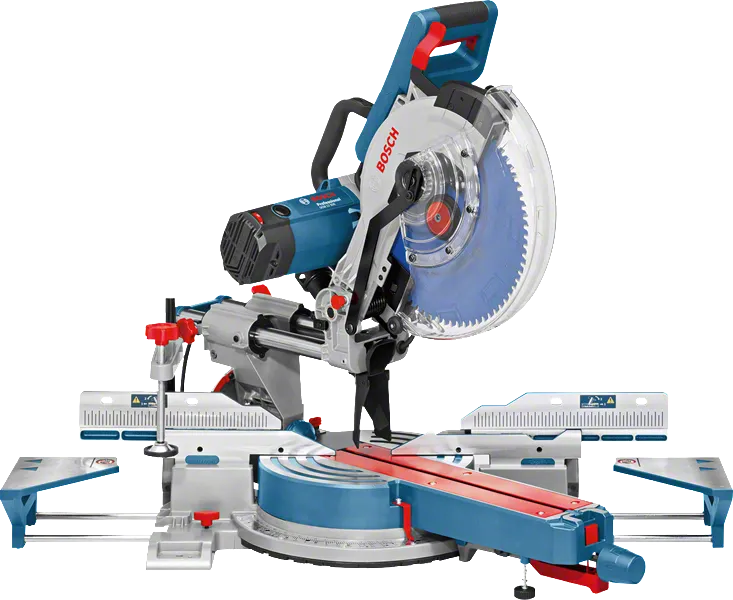

GCM 12 SDE Professional

Sliding Mitre Saw

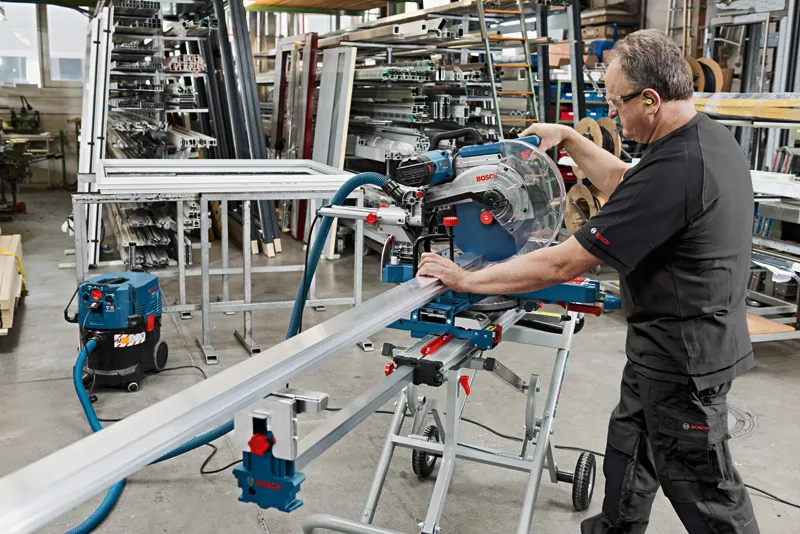

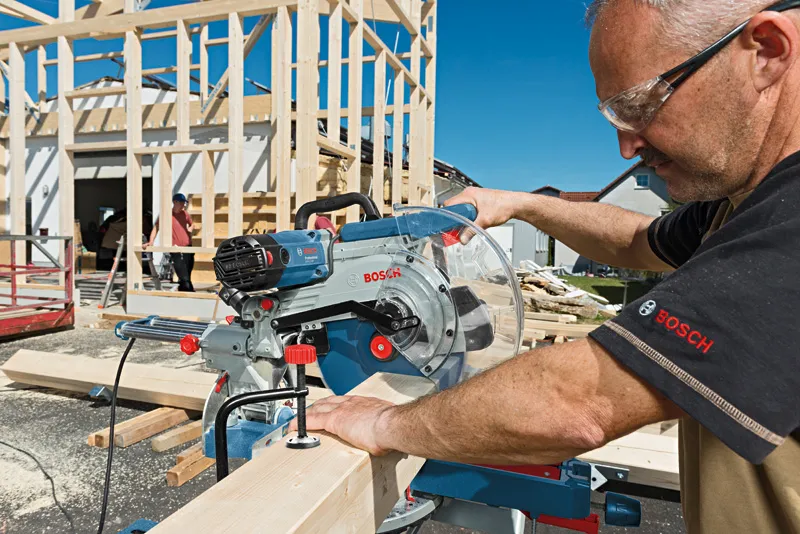

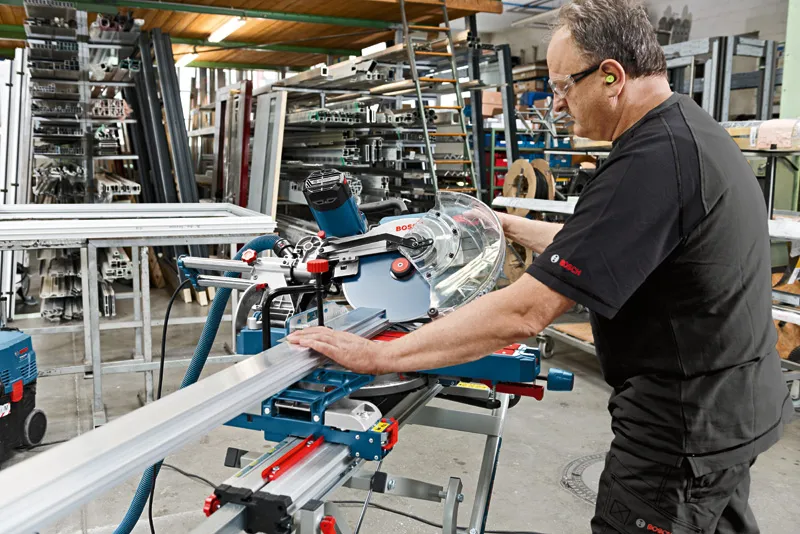

High cutting capacity and variable speed for a wide variety of applications

  • Vertical cutting capacity of 120 mm
  • Variable speed for adapting the cutting speed to the material
  • SDS saw blade changes

Functions & key features

Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
 Best work results with speed pre-selection for applications requiring material-specific speed
Show variant
1,545,600.00 KZ
Recommended retail price including VAT
Find a local dealer

GCM 12 SDE Professional 0 601 B23 100
1,545,600.00 KZ
Recommended retail price including VAT

GCM 12 SDE Professional

Your Selection

GCM 12 SDE

Order number: 0 601 B23 100

1,545,600.00 KZ
Recommended retail price including VAT
Find a local dealer

Included in this variant

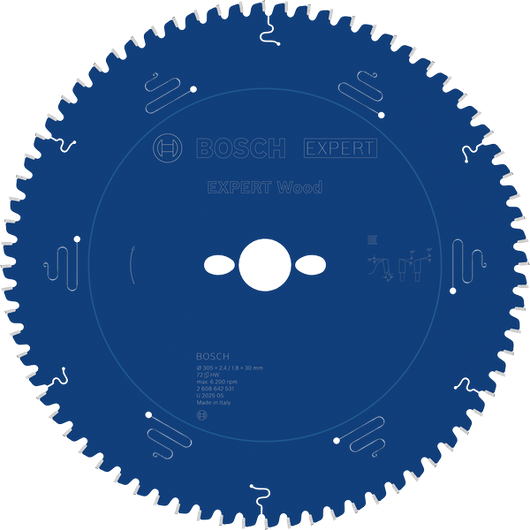

  • 1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72
    Order number: 2 608 642 531
  • Clamp
    Order number: 1 609 B06 203

Technical data

Additional data

Rated input power
1,800 W
Saw blade diameter
305 mm
Mitre setting
52 ° L / 60 ° R
Bevel setting
47 ° L / 47 ° R
Saw blade bore diameter
30 mm
Cutting capacity, 0°
85 x 370 mm
Cutting capacity 0° with spacer (max. vertical)
120 x 200 mm
Cutting capacity 0° with spacer (max. horizontal)
70 x 400 mm
Cutting capacity, 45° mitre
85 x 250 mm
Cutting capacity, 45° bevel
60 x 360 mm

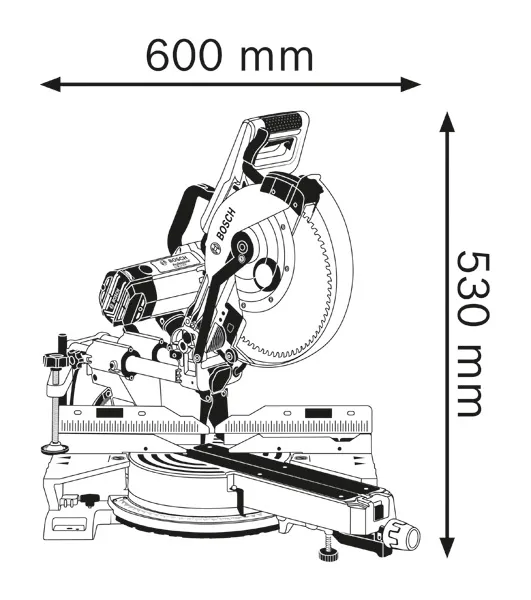

Tool dimensions (width x length x height)
860 x600 x530 mm
No-load speed
3,100 – 4,000 rpm
Weight
28.6 kg
GCM 12 SDE

* You can find more information about the deviations in the following link: Technical features of products
