New

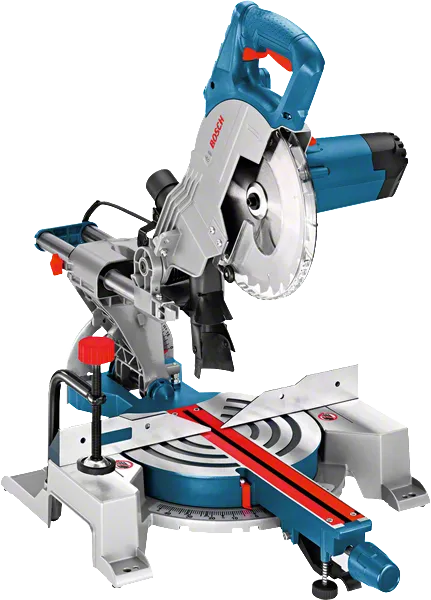

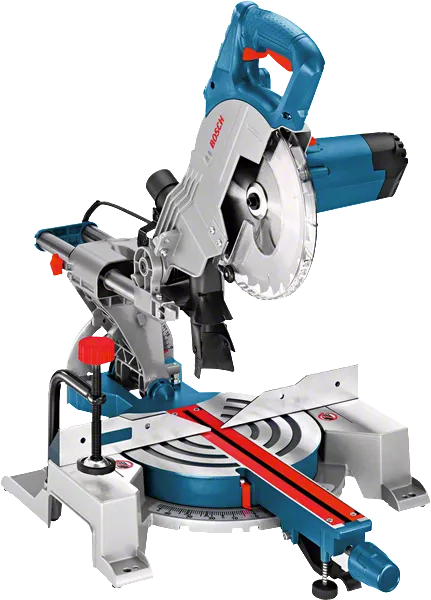

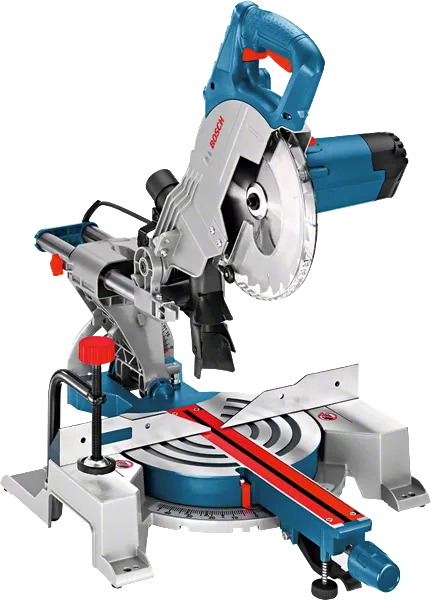

Sliding Mitre Saw GCM 800 SJ Professional

Compact, lightweight tool for standard cuts
GCM 800 SJ Professional
Technical data
Additional data
Mitre setting* 47 ° L / 47 ° R
Saw blade diameter* 216 mm
Bevel setting* 45 ° L / 0 ° R
Rated input power 1,400 W
Cutting capacity, 0° 70 x 270 mm
Cutting capacity, 45° mitre 70 x 190 mm
Cutting capacity, 45° incline 48 x 270 mm
No-load speed 5,500 rpm
Saw blade bore diameter 30 mm
Weight 13.5 kg
Total vibration values (Sawing wood)
Vibration emission value ah 3 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.

Advantages

Compact, lightweight tool for standard cuts

  • Only 13.5 kg machine weight for optimum handling
  • 270 mm horizontal cutting capacity for standard applications

Functions

Easy disc / tool change thanks to spindle lock
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 B19 000
  • Allen key

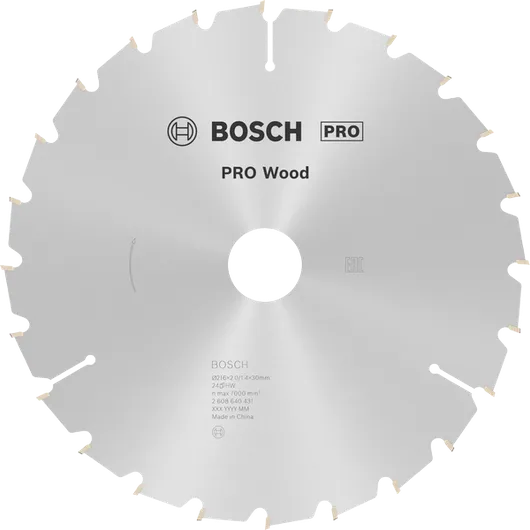

  • 1 x circular saw blade, Optiline Wood, 216 x 30 x 2.8 mm, 24 2 608 640 431
