Technical data
| Additional data | |
|---|---|
| Rated input power | 700 W |
| Planing width | 82 mm |
| Planing depth | 0 – 2.6 mm |
| Adjustable rebating depth | 0 – 9 mm |
| Weight | 2.7 kg |
| No-load speed | 16,500 rpm |

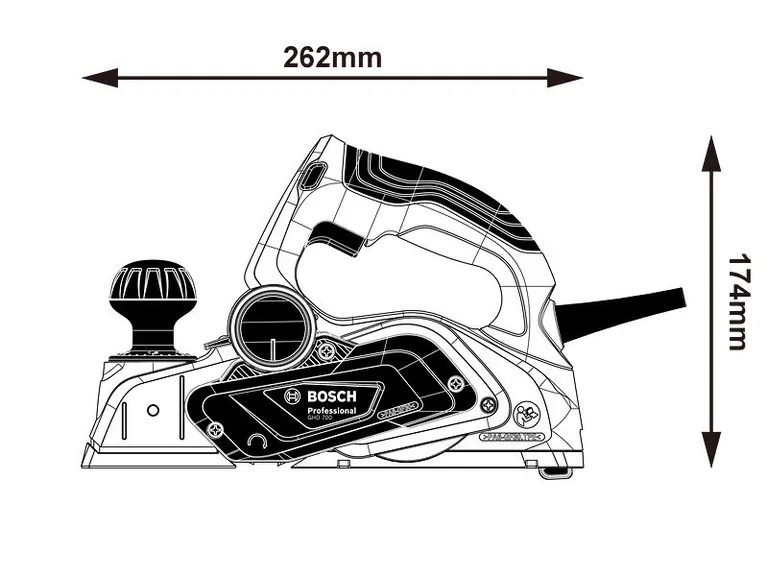

| Tool dimensions (width) | 160 mm |
| Tool dimensions (length) | 262 mm |
| Tool dimensions (height) | 174 mm |
Advantages
Experience control and comfort for a smooth finish

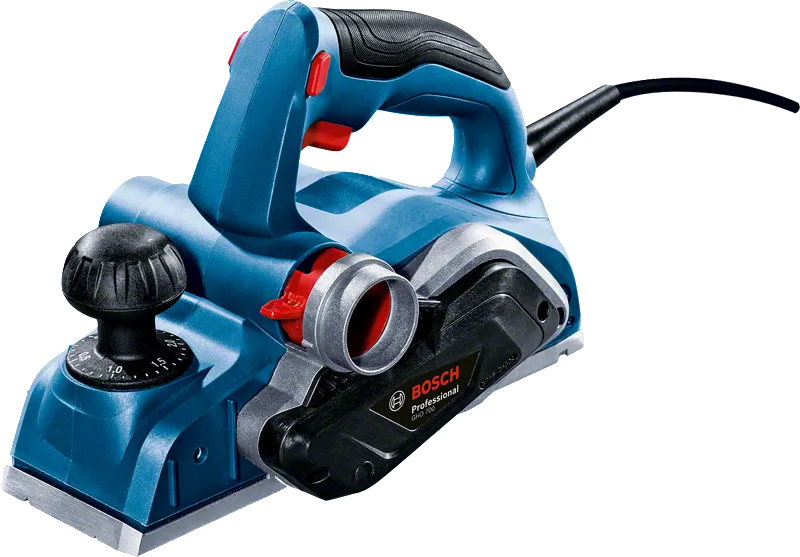

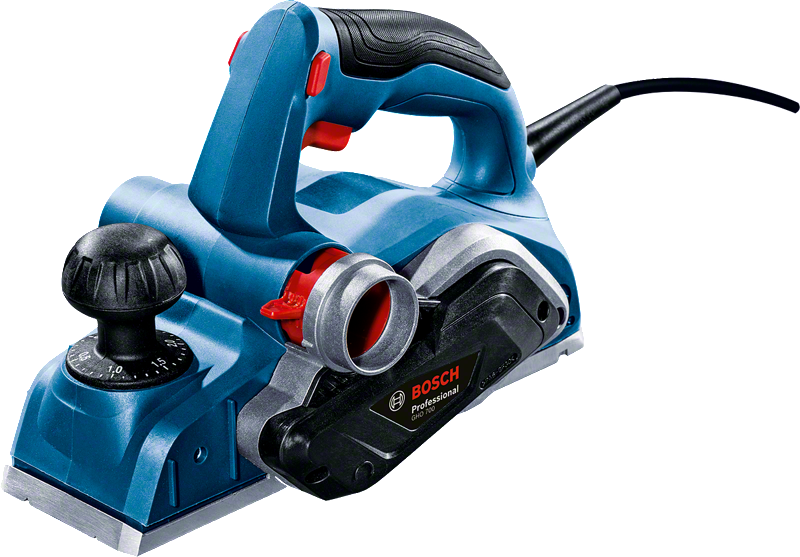

- Smooth and flat finish enabled by consistent depth control mechanism and precisely machined flat aluminium base.
- Controlled planing due to compact design and optimised centre of gravity for steady planing
- Eliminates wood chip blockage via improved airflow design and providing flexibility to discard wood chips from either right or left side
Functions

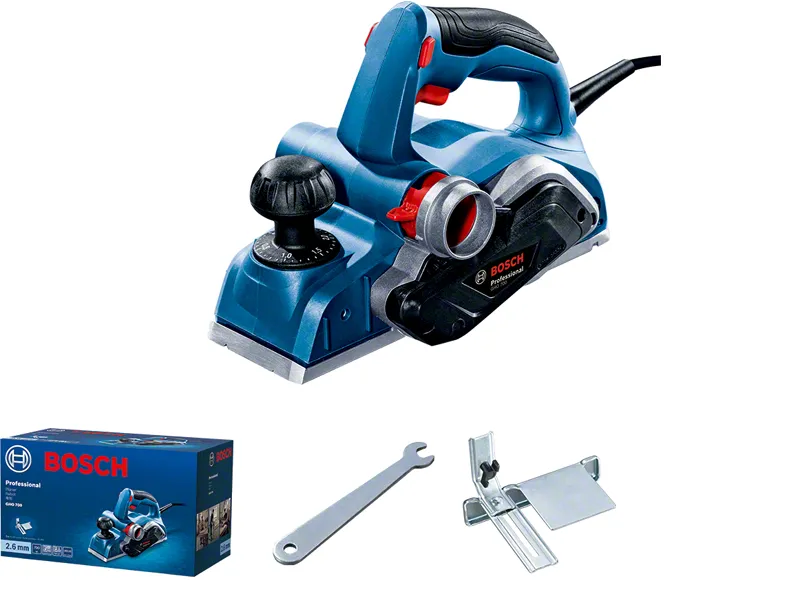

What’s Included in this Package
in cardboard box
Order number:
0 601 5A9 0K1
- Assembly wrench 1 619 PB4 239
- Guide bracket 1 619 PB4 338
- Cardboard box
