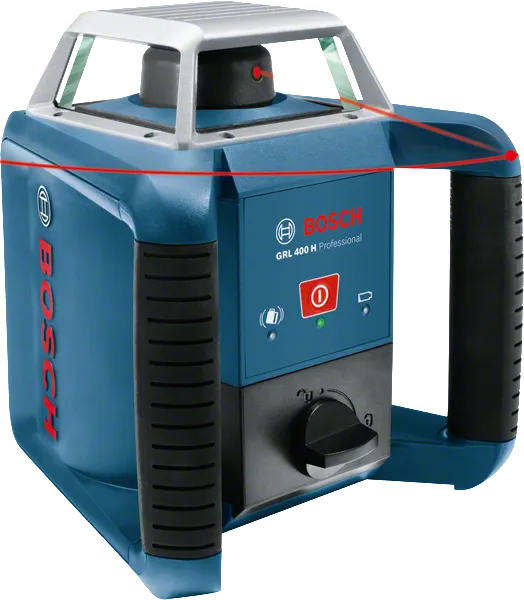

Rotation Laser GRL 400 H Professional

Jobsite-ready – the intuitive, single-button tool for outdoor levelling applications

Technical data
Additional data
Working range with receiver, value 400   m
Slope function no
Accuracy ± 2.4 mm at 30 m* (*plus use-dependent deviation)
Working range with receiver up to 400 m (Diameter)
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Working range without receiver up to 20 m (Diameter)
Laser diode 635 nm, < 1 mW
Laser class 2
Self-levelling range ± 8% (± 5°)
Levelling time 15   s
Dust and splash protection IP 56
Rotation speed 600 rpm
Power supply NiMH battery pack, 2 x 1.5 V LR20 (D)
Tripod thread 5/8"-11

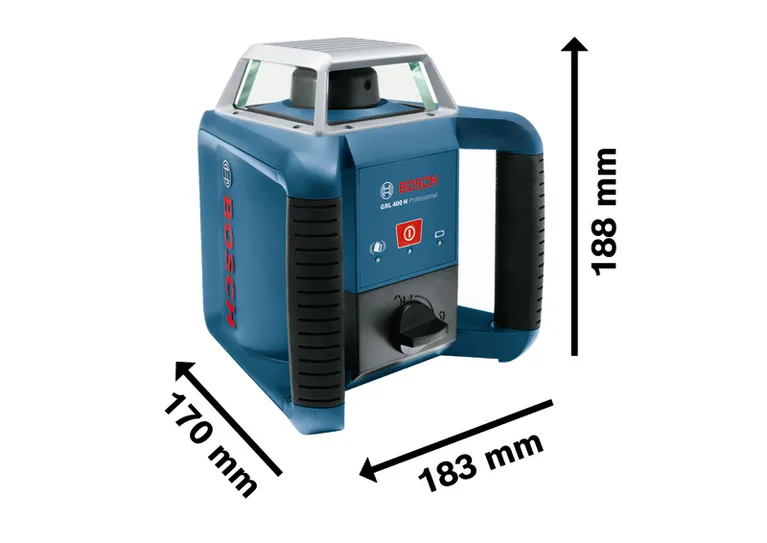

Weight, approx. 2   kg
Colour of laser line red
Compatible laser receivers LR 1

Advantages

Jobsite-ready – the intuitive, single-button tool for outdoor levelling applications

  • One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
  • Consistently accurate results with 0.08 mm/m levelling accuracy and an ADS shock warning system
  • Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56

Functions

Icon
Icon
Icon
Icon
Icon

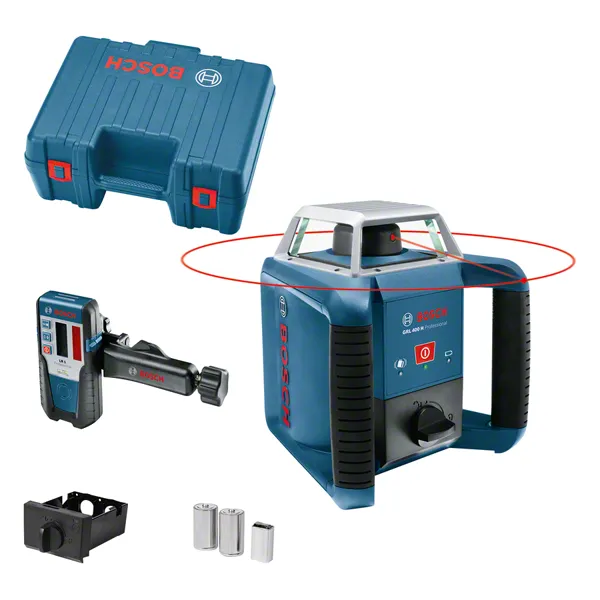

What’s Included in this Package
in carrying case with Accessory, receiver
in carrying case with Accessory, receiver
Order number: 0 601 061 800
  • Carrying case (spare part number 1 608 M00 05F)

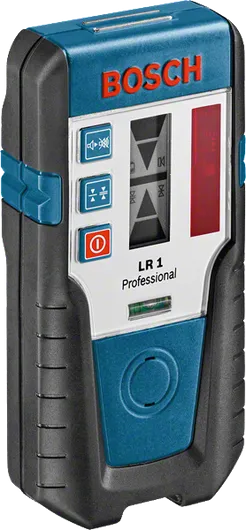

  • Laser Receiver LR 1 Professional 0 601 015 400
  • Non-rechargeable battery compartment 1 609 203 M02
  • 1 x NiMH battery (spare part number 1 608 M00 05G)
  • Charger set with adapter (spare part number 1 600 A00 1W3)
  • 2 x 1.5 V LR20 battery (D)
  • 1 x 9 V block battery (6LR61)

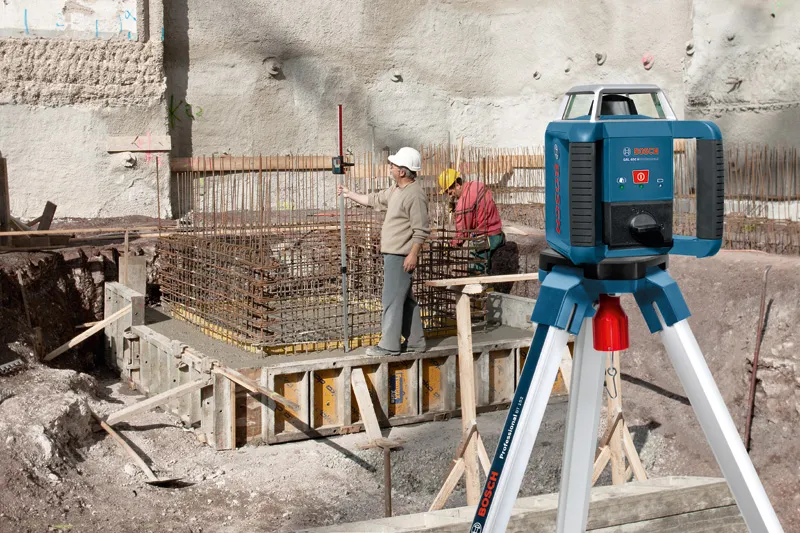

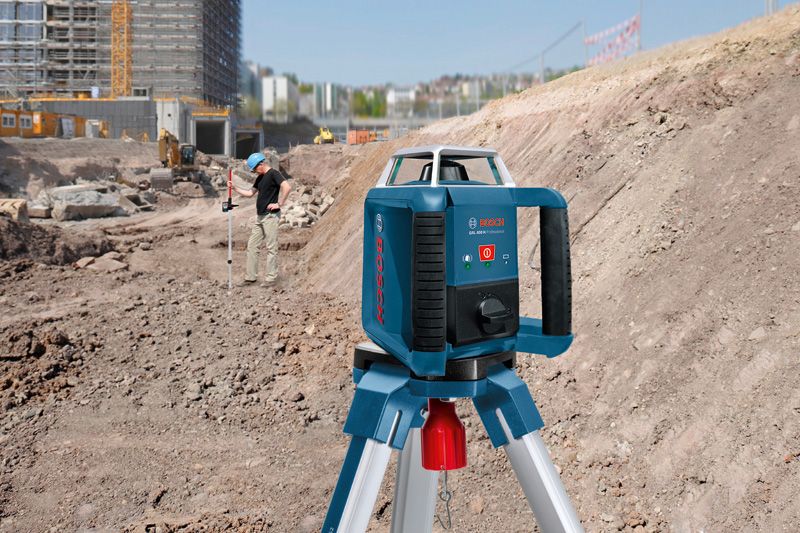

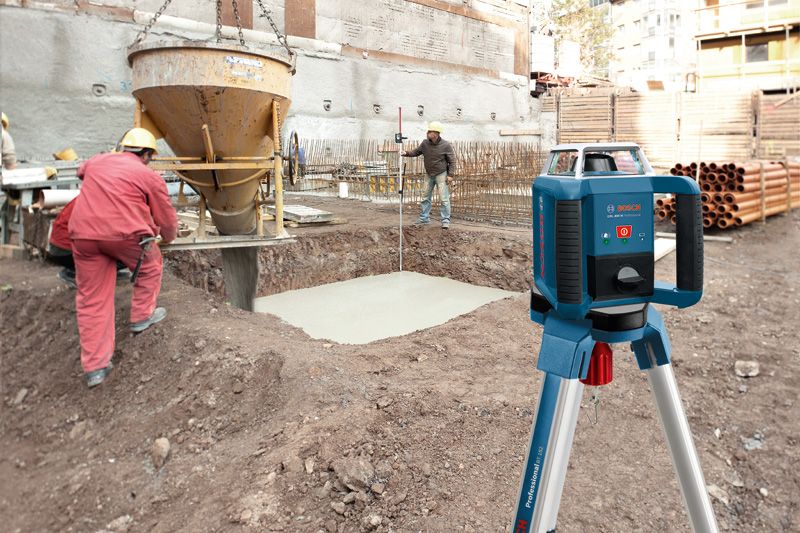

The GRL 400 H in action!
