Impact drills

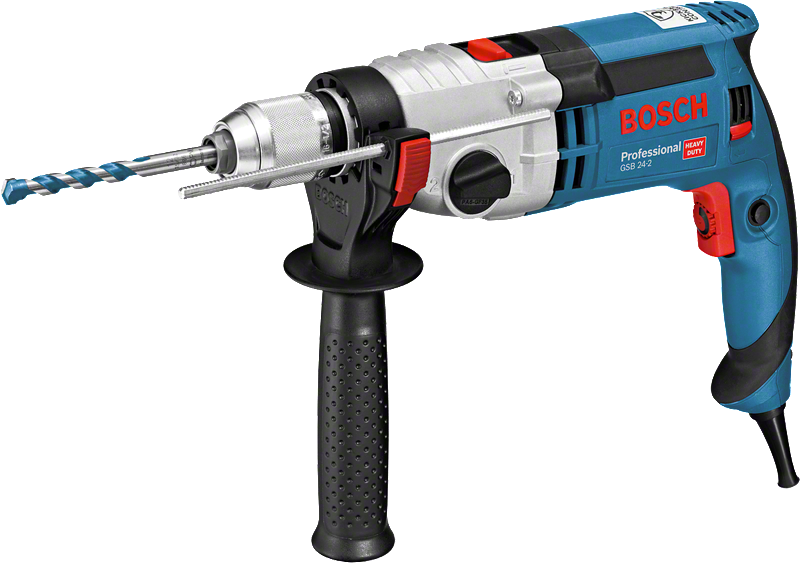

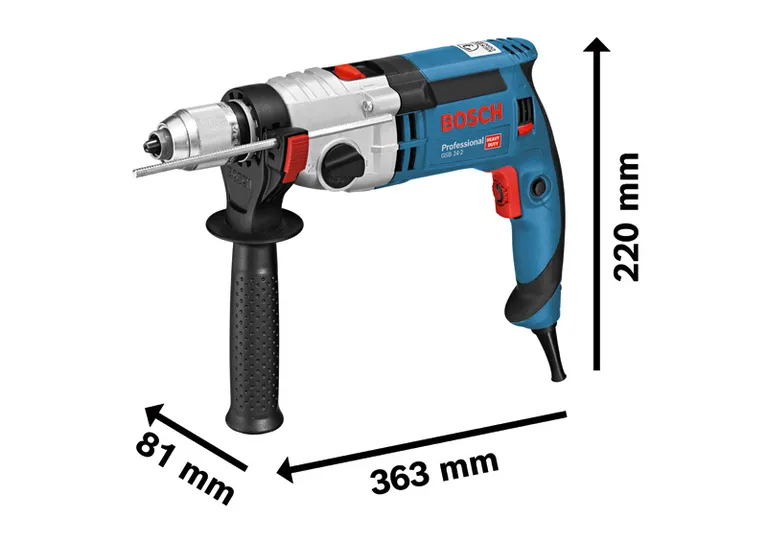

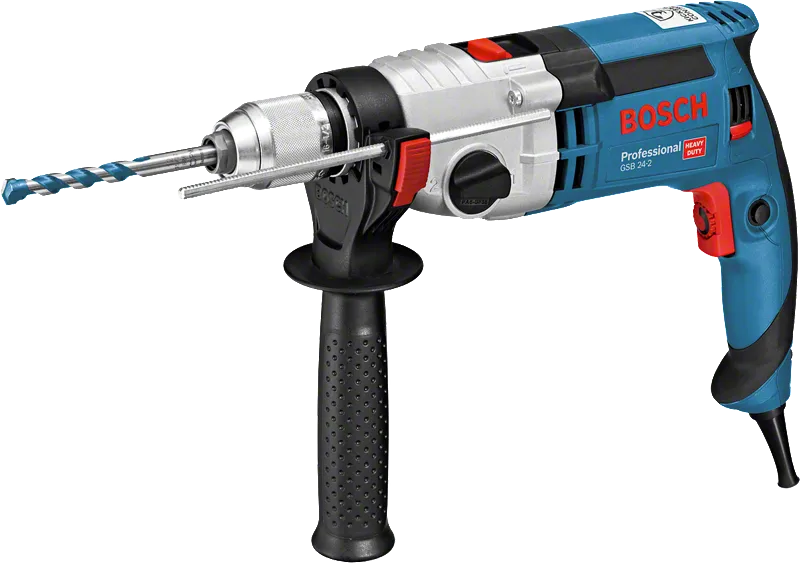

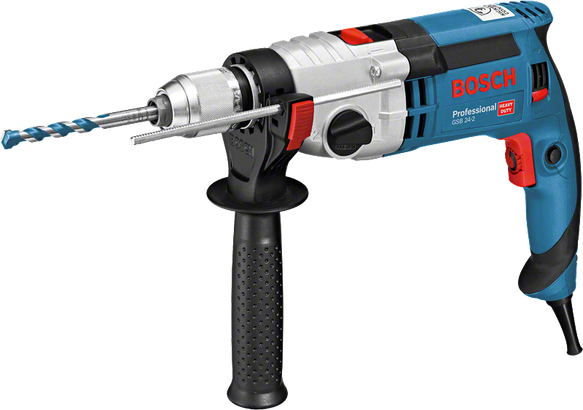

GSB 24-2 Professional

Impact Drill

The powerful tool for toughest applications - now with the intelligent KickBack Control.

Heavy-duty applications with large diameters due to the 1,100 W Bosch high-performance motor and high torque

Functions & key features

Your Selection

with chuck

Show variant

348,000.00 KZ Recommended retail price including VAT

Check availability on location

Find a local dealer

Your Selected Variant

with chuck 0 601 19C 801

348,000.00 KZ Recommended retail price including VAT

Find a local dealer

GSB 24-2 Professional

Your Selection

with chuck

Order number: 0 601 19C 801

348,000.00 KZ

Recommended retail price including VAT

Find a local dealer

Included in this variant

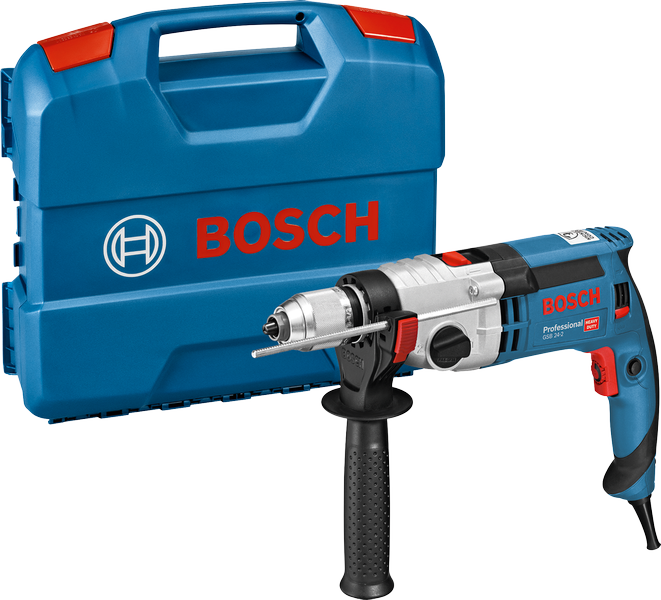

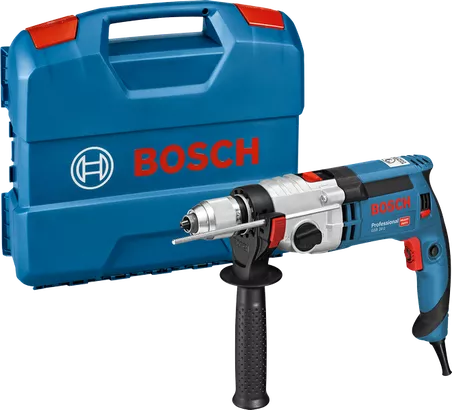

L-Case

Order number: 1 600 A00 M7X
Keyless chuck 13 mm

Order number: 2 608 572 150
Auxiliary handle

Order number: 2 602 025 193
Depth stop 210 mm

Order number: 1 613 001 010

Your selection

Technical data

Additional data
Rated input power	1100 W
Weight	2.9 kg
Drill chuck, version	13-mm keyless chuck
No-load speed, 1st gear	0 – 900 rpm
No-load speed, 2nd gear	3,000 rpm
Power output	630 W
Impact rate at no-load speed	0 – 15,300 / 51,000 bpm
Rated speed	580 / 1,900 rpm
Rated torque	9.6 / 3.2 Nm
Chuck capacity, min./max.	1.5 – 13 mm
Max. torque	40.0 Nm

Drilling range
Drilling diameter in wood	40 / 25 mm
Drilling diameter in steel	16 / 8 mm
Drilling dia. in stone	24 / 16 mm
Drilling diameter in masonry	24 / 16 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	5.6 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah	14.6 m/s²
Uncertainty K	1.8 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Thread-cutting)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	95 dB(A)
Sound power level	106 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	5.6 m/s²
Uncertainty K	1.5 m/s²

Impact drilling in concrete
Vibration emission value ah	14.6 m/s²
Uncertainty K	1.8 m/s²

Screwdriving
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Thread-cutting
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

GSB 24-2 Professional: Further information

Product Highlights

The GSB 24-2 Professional is a 2-gear corded impact drill with KickBack Control designed for the toughest jobs. Its strong 1,100 W high-performance motor and high torque make it ideal for most heavy duty applications. It also features KickBack Control for increased user protection. Equipped with a sturdy metal gear housing, this impact drill is extremely robust for a long tool lifetime.

Equipment & Application

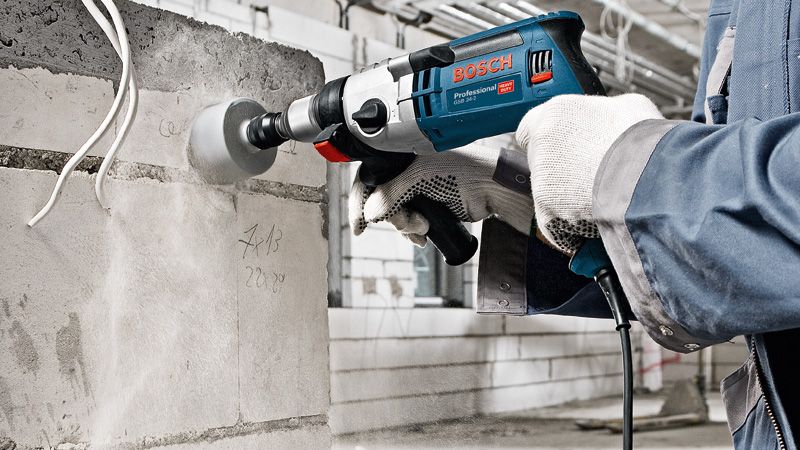

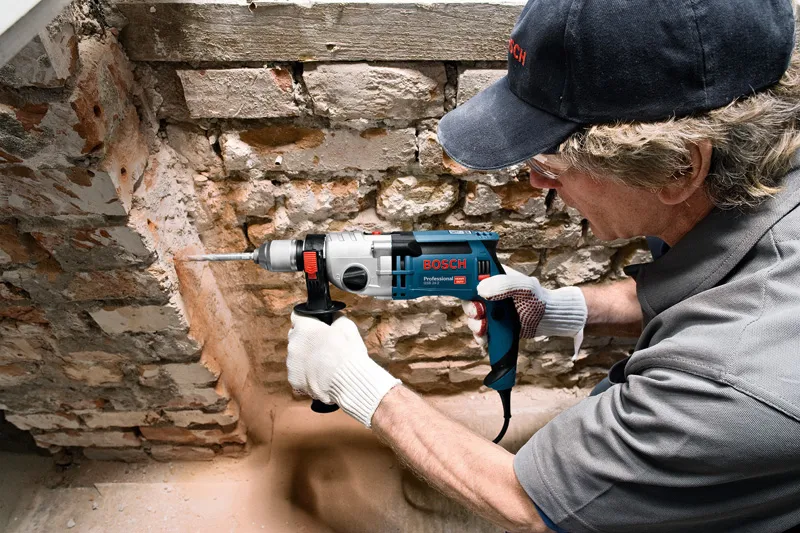

This tool is intended for drilling in concrete, stone, and masonry. It is compatible with the dust attachment GDE 16 Cyl Professional.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
