Technical data
| Additional data | |
|---|---|
| Rated input power | 650 W |
| Stroke rate at no load | 500 – 3,100 spm |
| Weight | 2.6 kg |
| Cable length | 2.5 m |

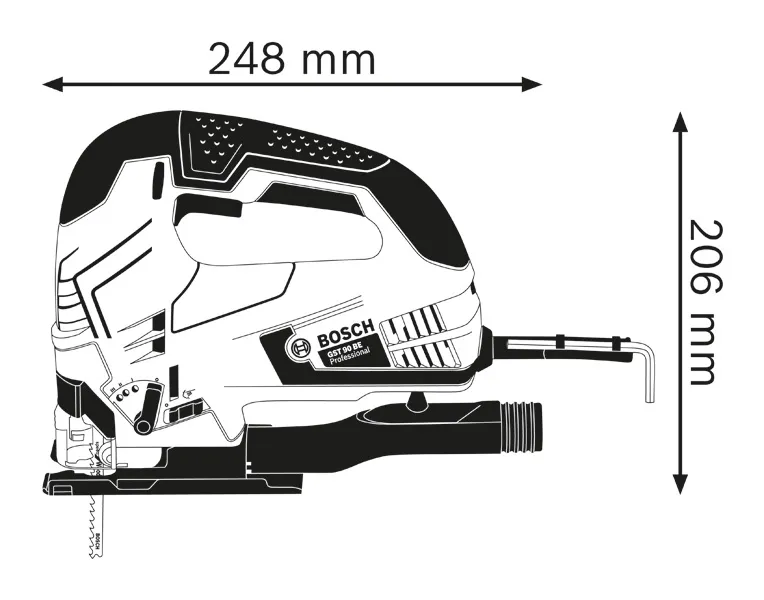

| Tool dimensions (width) | 80 mm |
| Tool dimensions (length) | 332 mm |
| Tool dimensions (height) | 212 mm |
| Cutting depth | |
|---|---|
| Cutting depth in wood | 90 mm |
| Cutting depth in aluminium | 20 mm |
| Cutting depth in non-alloyed steel | 10 mm |
| Total vibration values (Sawing wood) | |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Sawing sheet metal) | |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
Top-class convenience in the entry level class
- The reliable partner for day-to-day use
- High level of convenience with Bosch “SDS” for easy, tool-free, two-hand saw blade changes
- Switch with accelerator function for smooth pilot sawing of the material
Functions
What’s Included in this Package

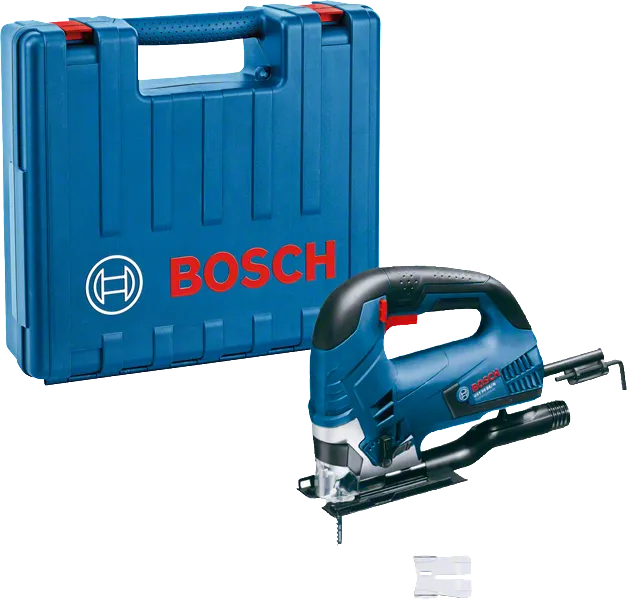

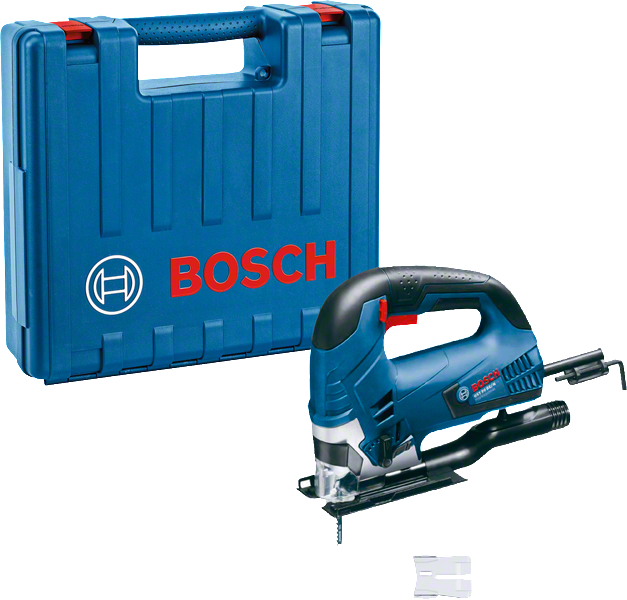

in carrying case with dust extraction accessory
Order number:
0 601 58F 000

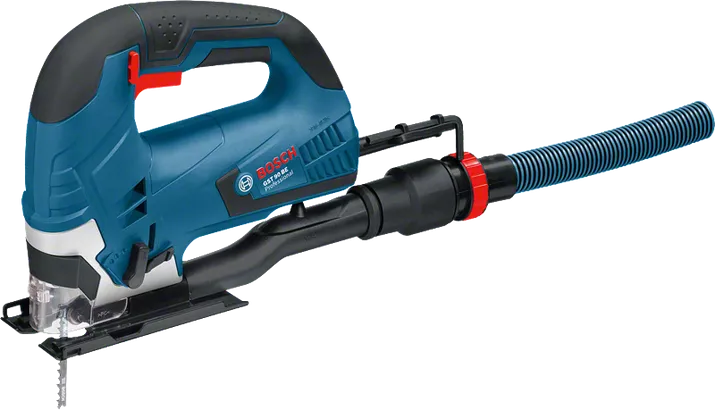

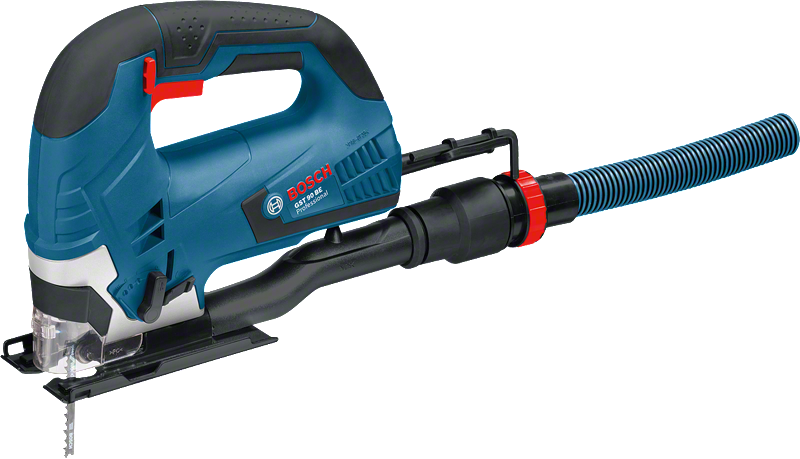

- Dust extraction set (spare part number 1 619 P07 167)
- Carrying case
- Hex key WAF 5 (spare part number 1 907 950 006)
- Anti-splinter guard (spare part number 2 601 016 065)
- 1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560)
