Metal Drill Bits

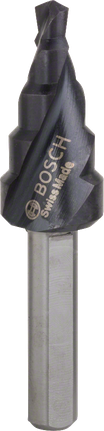

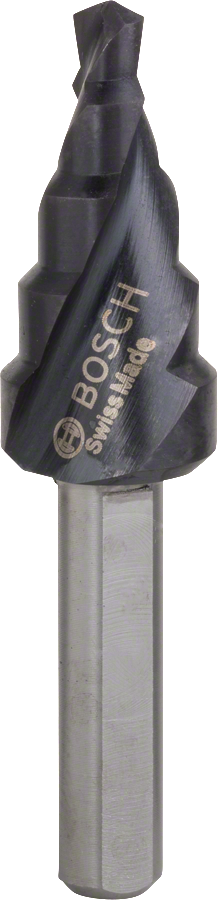

HSS AlTiN Step Drill Bit, 3-Flat Shank

For rotary drills/drivers

HSS AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • Pre-punching is not necessary as the split-point tip allows for an easy start
  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • 3-flat shank prevents slipping in the chuck of rotary drills and drivers

Materials

Metal pipes and profiles
Non-ferrous metals
Aluminium
Plastics
Metal sandwich
Select options

Step diameter (range) mm 4-12

Step height mm 4

Shank diameter mm 6.0

Choose a pack size 1 Pcs

Available product options (1)
Check availability on location Find a local dealer Check availability on location

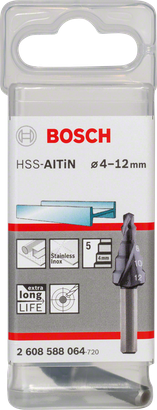

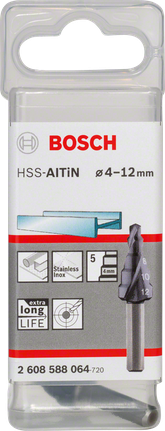

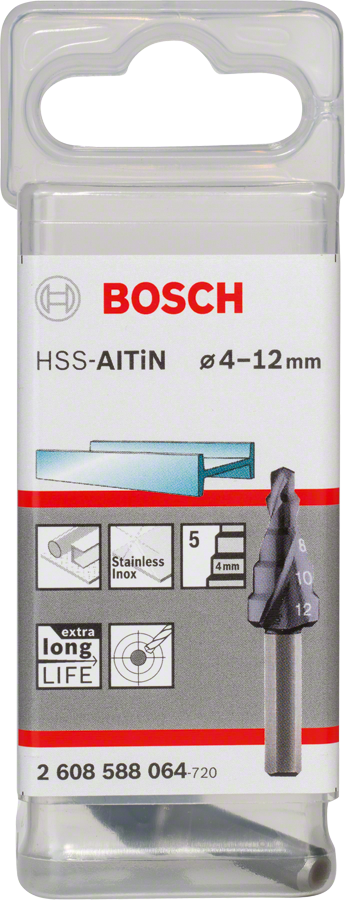

HSS-AlTiN step drill bits 2 608 588 064

Smooth Drilling in Several Diameters with One Drill Bit

HSS AlTiN Step Drill Bit performs smooth drilling in several diameters with one drill bit

  • CNC ground spiral flute enables optimised chip removal and less vibration for even drilling
  • Highest cutting smoothness due to axial and radial relief grinding
  • Made of HSS for a long lifetime. Laser-markings for hole diameters.
  • AlTiN coating for maximum lifetime, laser-markings for hole diameters, 3-flat shank for high-torque transmission
View more

Product Options

Available product options: 1

Part number Version Step diameter (range) mm Step height mm Shank diameter mm Pack quantity
2 608 588 064 HSS-AlTiN 4-12 4 6.0 1 Pcs Find a local dealer
