Metal Drill Bits

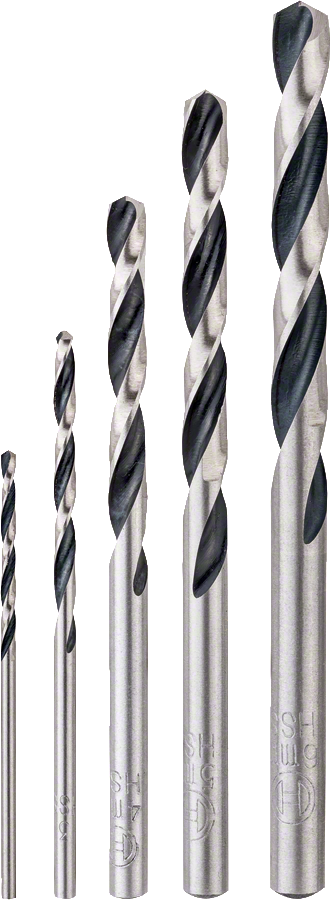

HSS Twist Drill Bit PointTeQ Set, 5-Pieces

For rotary drills/drivers

  • Self-centering tip prevents wandering, making quick and easy drilling starts possible
  • Increased drilling rate generates less heat and wear

Materials

Steel
Cast iron
Choose your Variant

7 options


HSS Twist Drill Bit PointTeQ Set, 5-Pieces
from
For rotary drills/drivers

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Cylindrical shank compatible with three-jaw drill chucks.

Fast Drilling in Metal

HSS Twist Drill Bit PointTeQ enables fast drilling in metal due to PointTeQ tip design

  • Increased drilling rate generates less heat and wear
  • PointTeQ tip design remains sharp and ensures continuous durability
  • Low risk of breakage due to highly elastic body, black-oxide coated flute; DIN 338, Type N, 135-degree tip
View more

Product Options

Available product options: 7

Part number Diameter mm Working length mm Total length mm Pack quantity

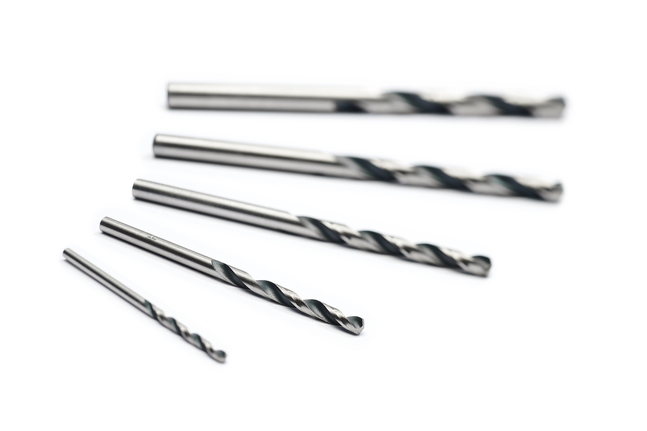

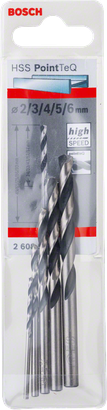

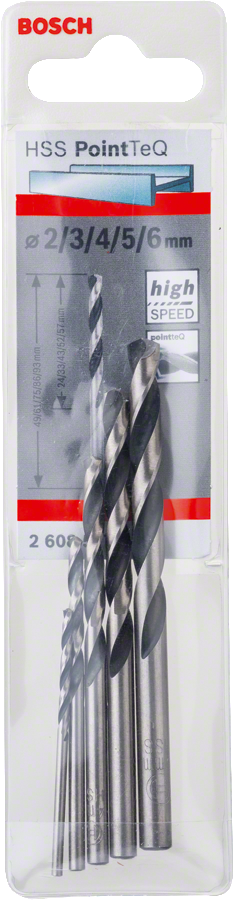

2 608 577 345 2.0 / 3.0 / 4.0 / 5.0 / 6.0 24 / 33 / 43 / 52 / 57 49 / 61 / 75 / 86 / 93 5 Pcs Find a local dealer

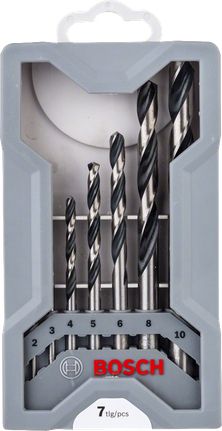

2 608 577 347 2.0 / 3.0 / 4.0 / 5.0 / 6.0 / 8.0 / 10.0 24 / 33 / 43 / 52 / 57 / 75 / 87 49 / 61 / 75 / 86 / 93 / 117 / 133 7 Pcs Find a local dealer

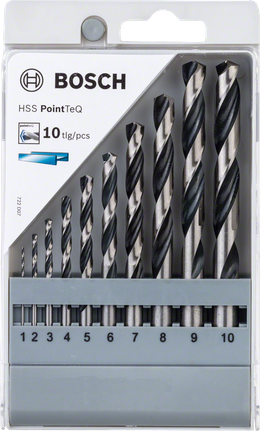

2 608 577 348 1.0 / 2.0 / 3.0 / 4.0 / 5.0 / 6.0 / 7.0 / 8.0 / 9.0 / 10.0 12 / 24 / 33 / 43 / 52 / 57 / 69 / 75 / 81 / 87 34 / 49 / 61 / 75 / 86 / 93 / 109 / 117 / 125 / 133 10 Pcs Find a local dealer
2 608 577 349 1.5 / 2.0 / 2.5 / 3.0 / 3.2 / 3.5 / 4.0 / 4.5 / 4.8 / 5.0 / 5.5 / 6.0 / 6.5 18 / 24 / 30 / 33 / 36 / 39 / 43 / 47 / 52 / 52 / 57 / 57 / 63 40 / 49 / 57 / 61 / 65 / 70 / 75 / 80 / 86 / 86 / 93 / 93 / 101 13 Pcs Find a local dealer

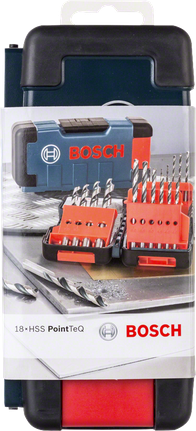

2 608 577 350 1.0 / 1.5 / 2.0 / 2.0 / 2.5 / 3.0 / 3.0 / 3.5 / 4.0 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 7.0 / 8.0 / 9.0 / 10.0 12 / 18 / 24 / 24 / 30 / 33 / 33 / 39 / 43 / 43 / 47 / 52 / 57 / 57 / 69 / 75 / 81 / 87 34 / 40 / 49 / 49 / 57 / 61 / 61 / 70 / 75 / 75 / 80 / 86 / 93 / 93 / 109 / 117 / 125 / 133 18 Pcs Find a local dealer

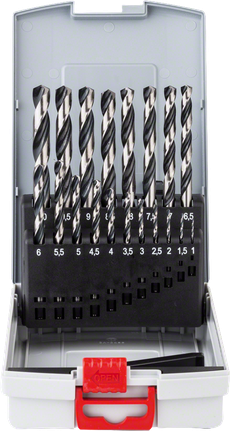

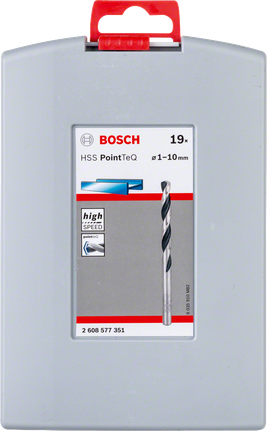

2 608 577 351 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 34 / 40 / 49 / 57 / 61 / 70 / 75 / 80 / 86 / 93 / 93 / 101 / 109 / 109 / 117 / 117 / 125 / 125 / 133 19 Pcs Find a local dealer

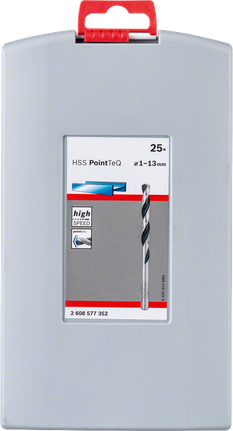

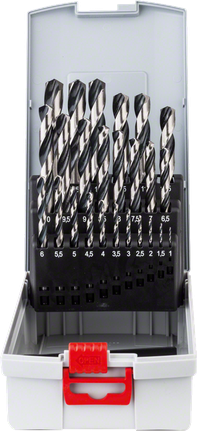

2 608 577 352 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0 / 6.5 / 7.0 / 7.5 / 8.0 / 8.5 / 9.0 / 9.5 / 10.0 / 10.5 / 11.0 / 11.5 / 12.0 / 12.5 / 13.0 12 / 18 / 24 / 30 / 33 / 39 / 43 / 47 / 52 / 57 / 57 / 63 / 69 / 69 / 75 / 75 / 81 / 81 / 87 / 87 / 94 / 94 / 101 / 101 / 101 34 / 40 / 49 / 57 / 61 / 70 / 75 / 80 / 86 / 93 / 93 / 101 / 109 / 109 / 117 / 117 / 125 / 125 / 133 / 133 / 142 / 142 / 151 / 151 / 151 25 Pcs Find a local dealer
