Rotary hammers

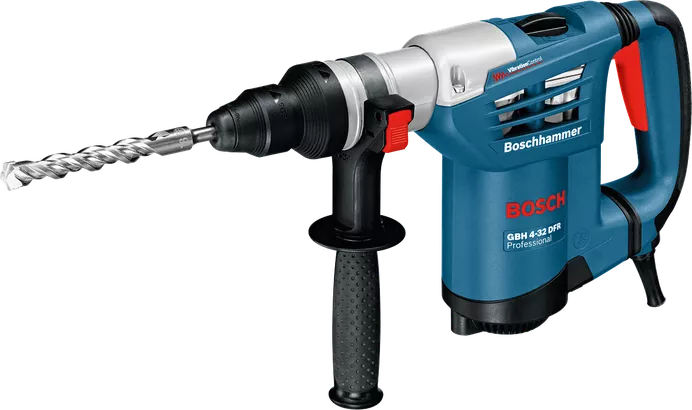

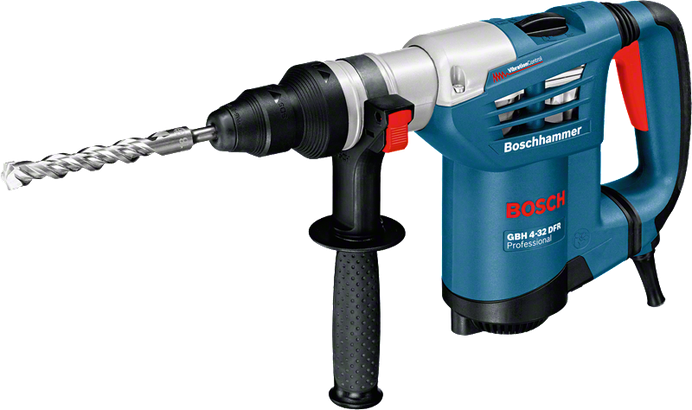

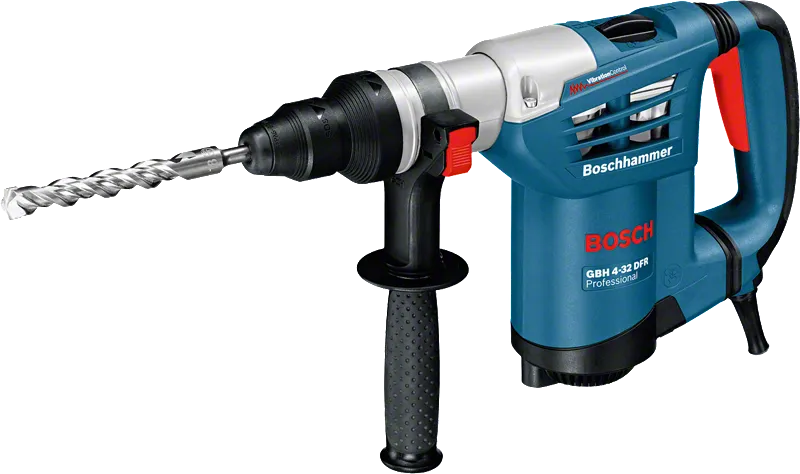

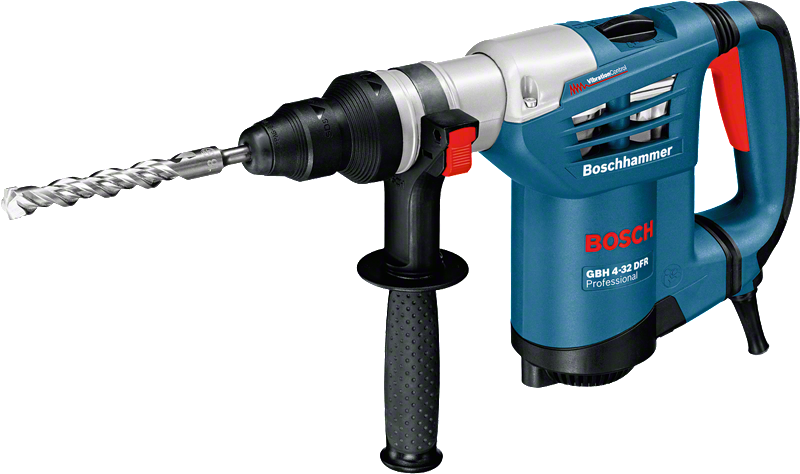

GBH 4-32 DFR Professional

Rotary Hammer with SDS plus

The fastest multi-hammer in the 4kg class

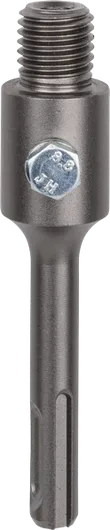

Wide range of applications in chiselling and drilling work and when working with a core cutter
Drills up to 30% faster (25 mm diameter) than other tools in its class
Low vibration levels of only 12 m/s² for less tiring work due to Bosch Vibration Control

Functions & key features

Your Selection

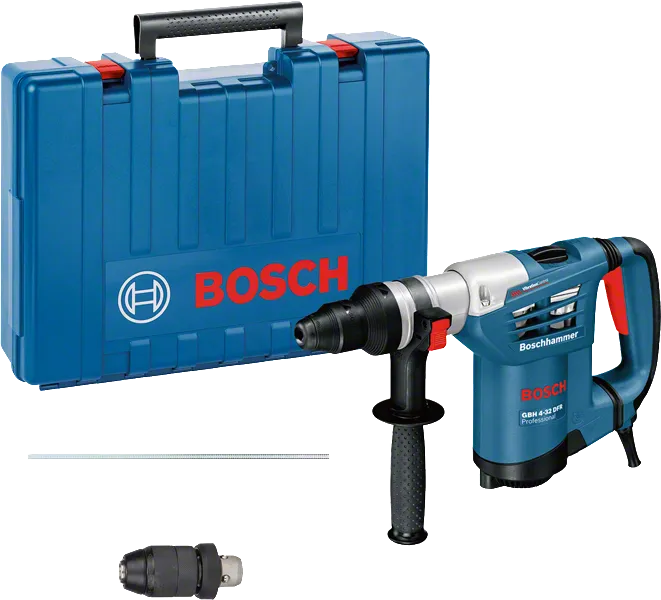

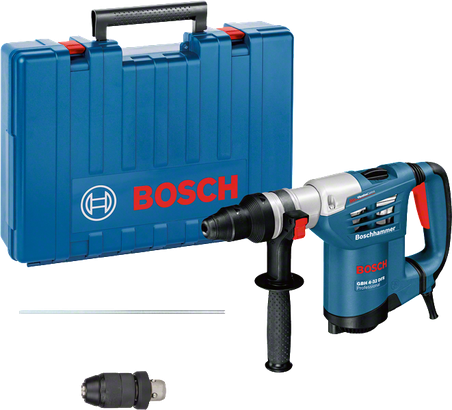

in carrying case with depth stop

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with depth stop 0 611 332 101

Find a local dealer

GBH 4-32 DFR Professional

Your Selection

in carrying case with depth stop

Order number: 0 611 332 101

Find a local dealer

Included in this variant

Depth stop 310 mm

Order number: 1 613 001 003
Auxiliary handle

Order number: 2 602 025 176
Quick change chuck 13 mm

Order number: 2 608 572 212
Grease tube (spare part number 1 615 430 010)
Machine cloth

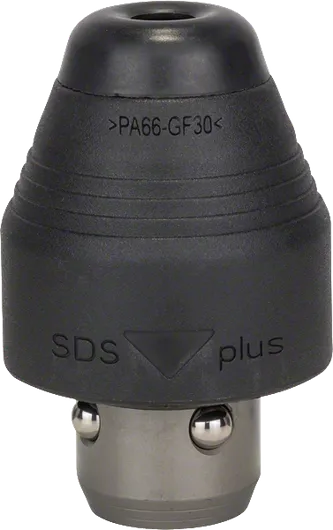

SDS plus quick-change chuck

Order number: 2 608 572 213
Carrying case

Your selection

Technical data

Performance data
Impact rate at rated speed	0 – 3,600 bpm

Additional data
Rated input power	900 W
Impact energy (according to EPTA 05/2016)	4.2 J
Voltage, electrical	230 V
Weight	4.7 kg
Tool holder	SDS plus
Rated speed	0 – 800 rpm

Drilling range
Drilling dia. concrete, hammer drill bits	6 – 32 mm
Opt. appl. range concrete, hammer drill bits	14 – 25 mm
Max. drilling diameter in metal	13 mm
Max. drilling diameter in wood	32 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	12.7 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	11.4 m/s²
Uncertainty K	1.5 m/s²

Hammer drilling in concrete
Vibration emission value ah	12.7 m/s²
Uncertainty K	1.5 m/s²

Chiselling in concrete
Vibration emission value ah	11.4 m/s²
Uncertainty K	1.5 m/s²

GBH 4-32 DFR Professional: Further information

Product Highlights

The GBH 4-32 DFR Professional is the most powerful tool within Bosch’s SDS plus corded rotary hammer category. Its 900 W motor delivers an outstanding 4.2 J of impact energy for the fastest chisel removal rates in Bosch’s SDS plus range. The rotary hammer is designed for durability, featuring a robust metal gearbox housing. Its Vibration Control enables effortless and continuous work in time intensive applications.

Equipment & Application

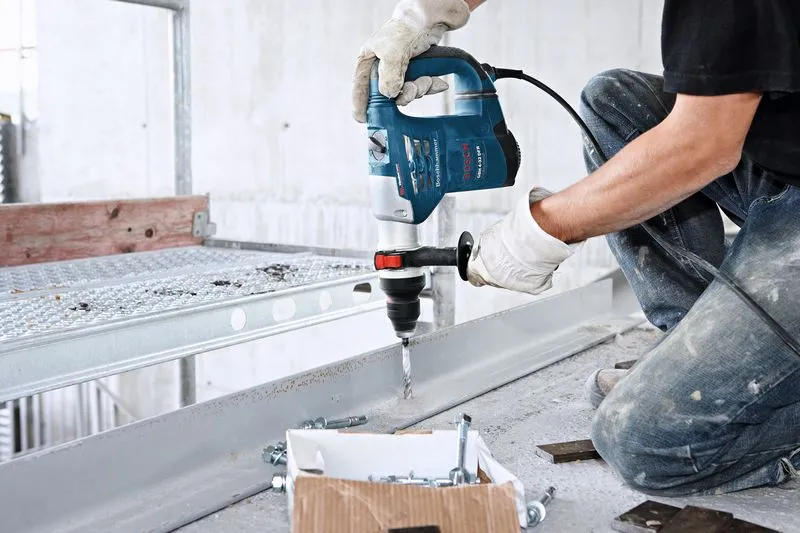

This tool is intended for drilling and chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments.
