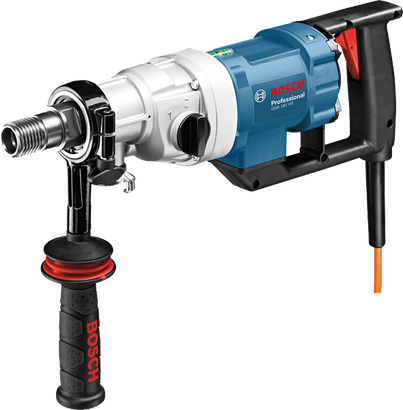

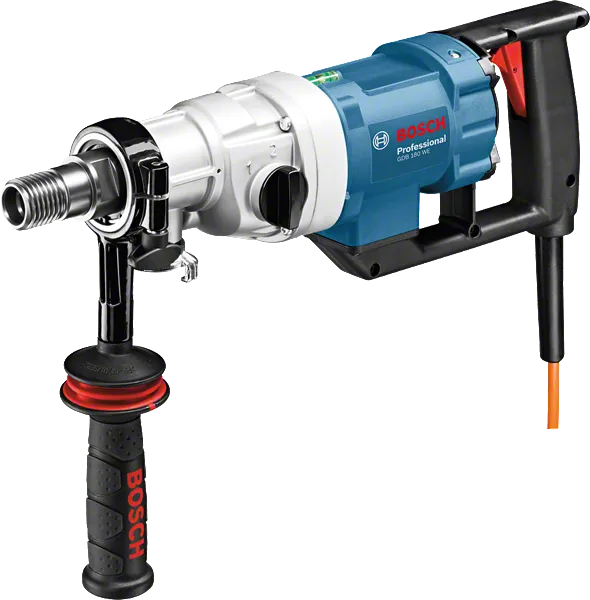

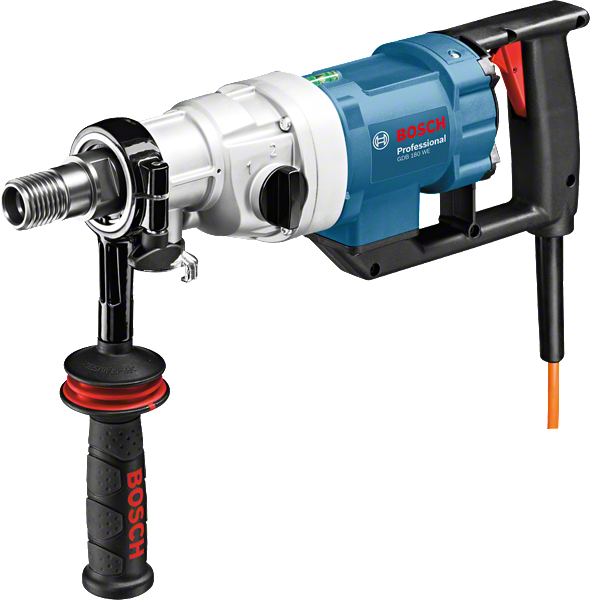

GDB 180 WE Professional
Diamond Drill
The compact powerhouse for drilling holes of up to 180 mm in concrete
- Powerful 2000 watt motor for breakthroughs in reinforced concrete up to 180 mm
- Long lifetime due to robust design and gearbox with oil-bath lubrication

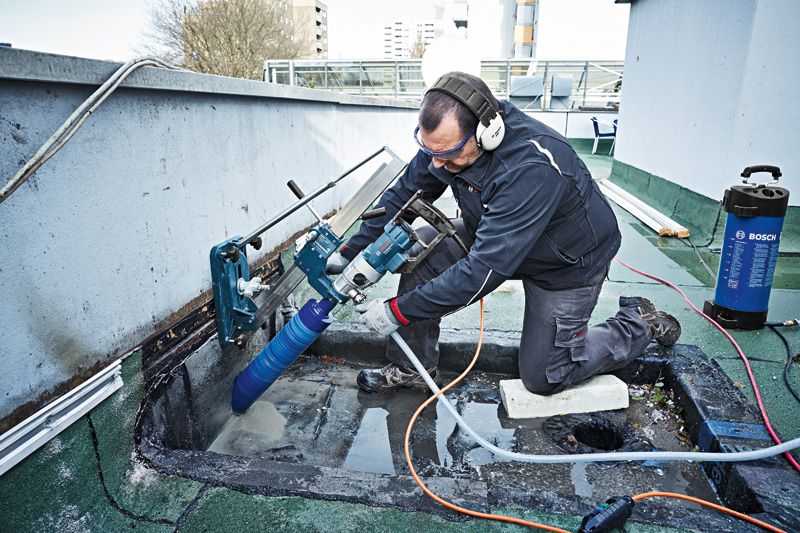

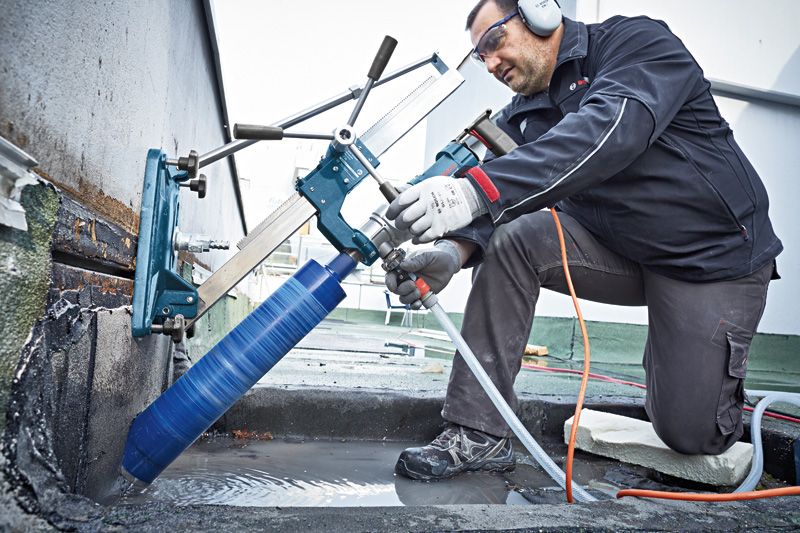

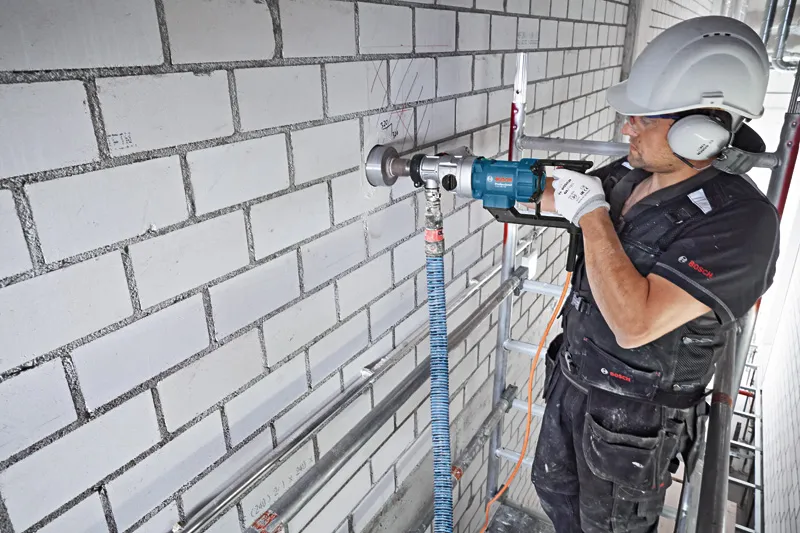

- Wet and dry application; both hand-held and stand-mounted
Functions & key features

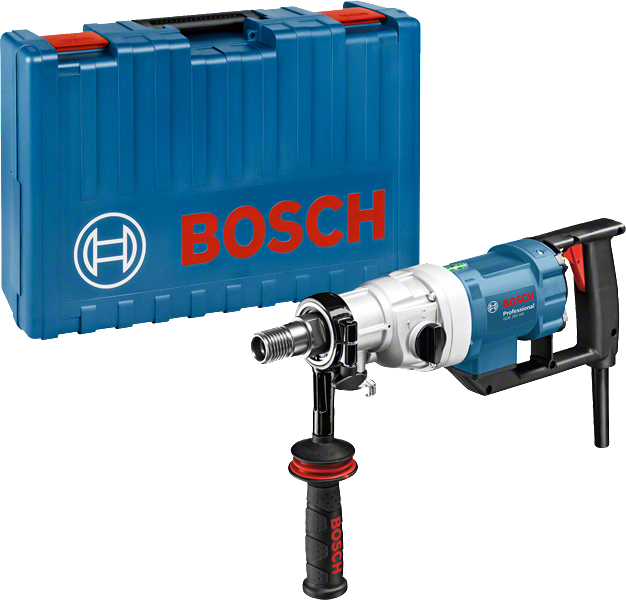

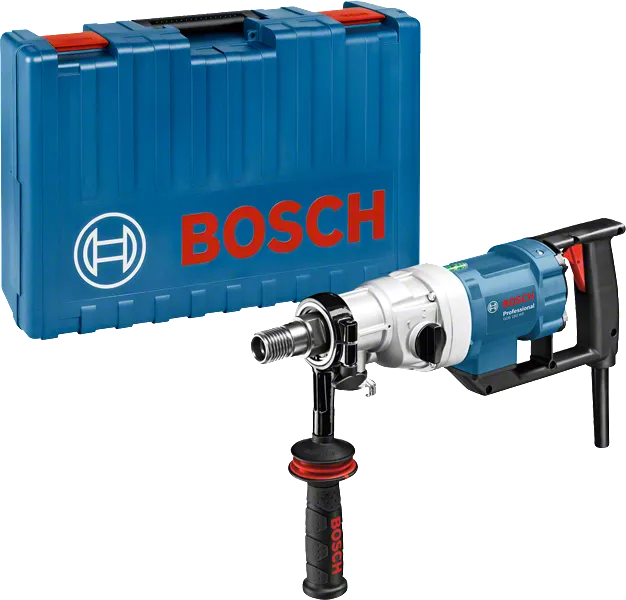

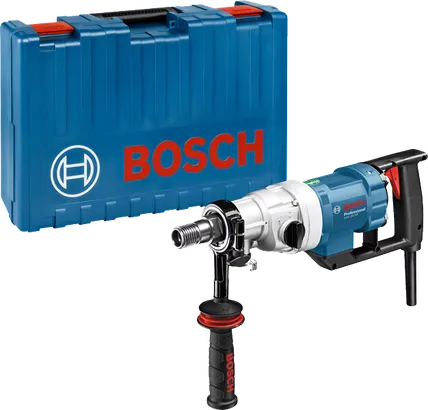

in carrying case with dust extraction accessory
0 601 189 800
GDB 180 WE Professional
Your Selection
in carrying case with dust extraction accessory
Order number: 0 601 189 800
This product includes
- Dust extraction adapter
- Ball valve
- Carrying case
Show less
Show more
Technical data
Additional data |
|
|---|---|
| Rated input power | 2,000 W |
| No-load speed | 900/2,800 rpm |
| Tool holder | 1 1/4" UNC |
| Weight | 5.2 kg |
| Drilling range | 180 mm |

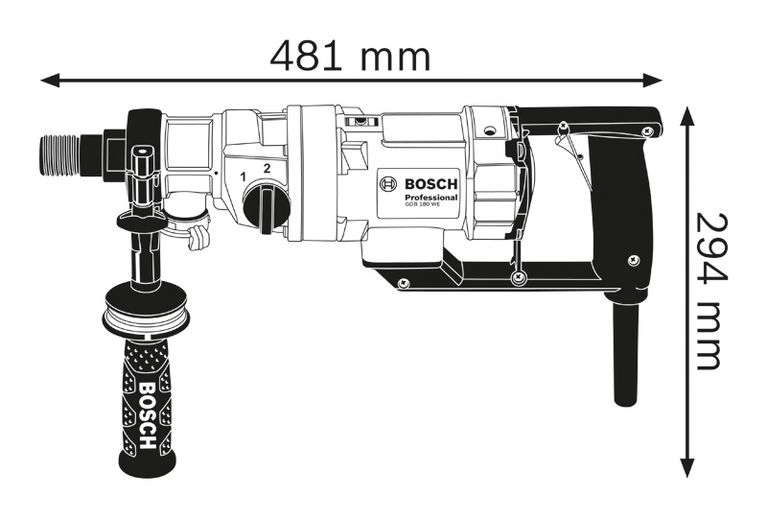

| Tool dimensions (width) | 109 mm |
| Tool dimensions (length) | 481 mm |
| Tool dimensions (height) | 294 mm |
| Suitability | Wet drilling in concrete |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.
