Laser measures
GLM 50-22
GLM 50-22

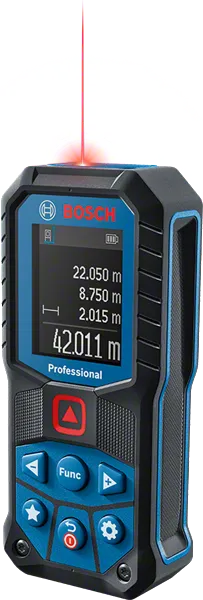

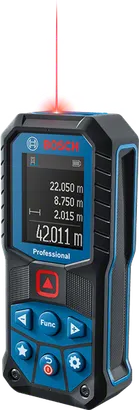

GLM 50-22 Professional

Laser Measure

GLM 50-22
GLM 50-22

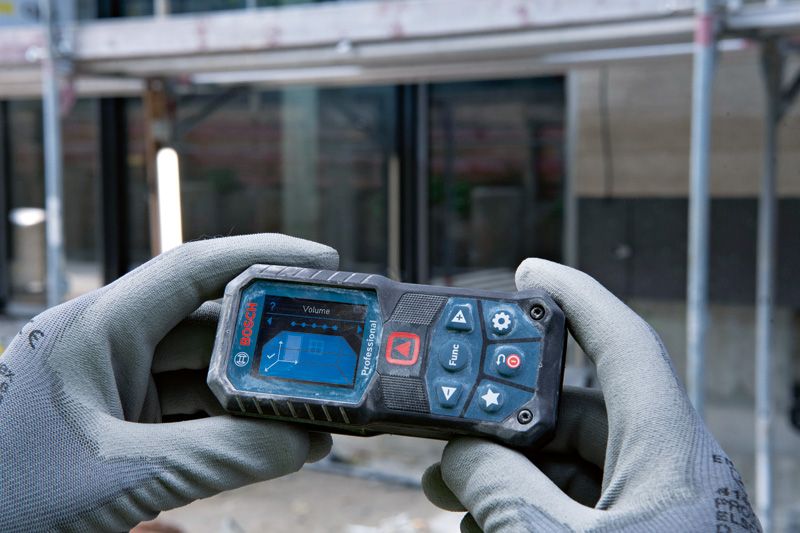

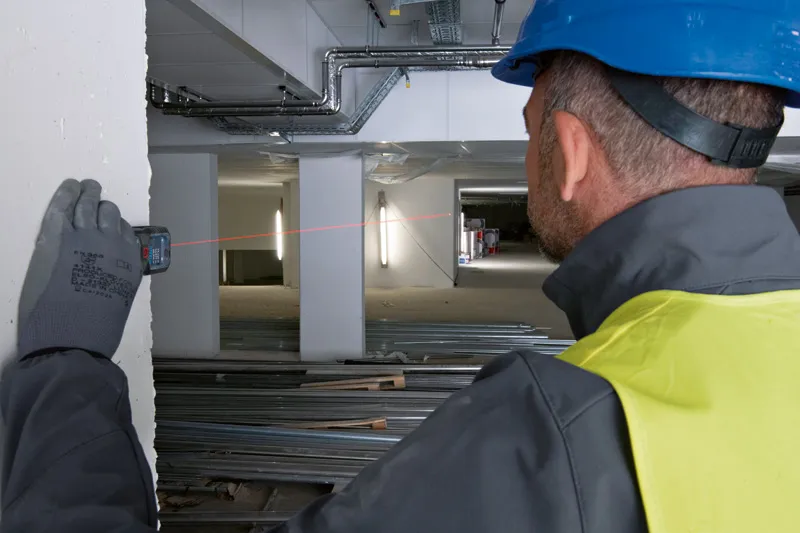

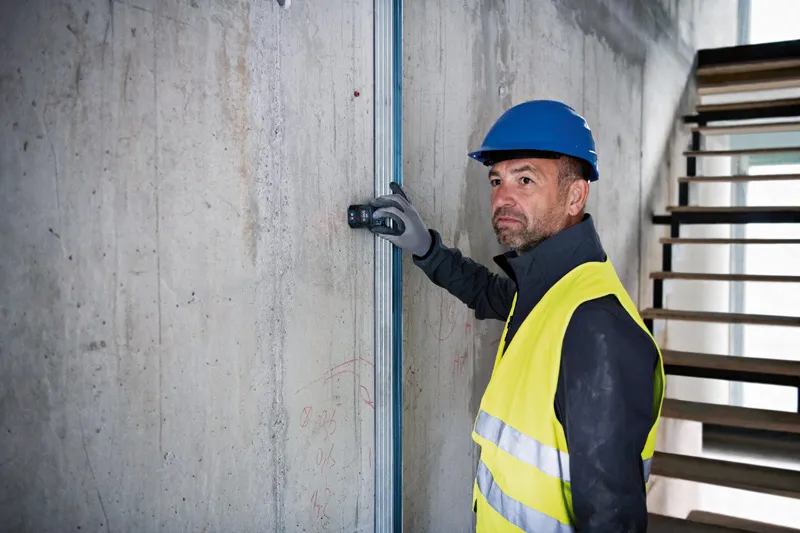

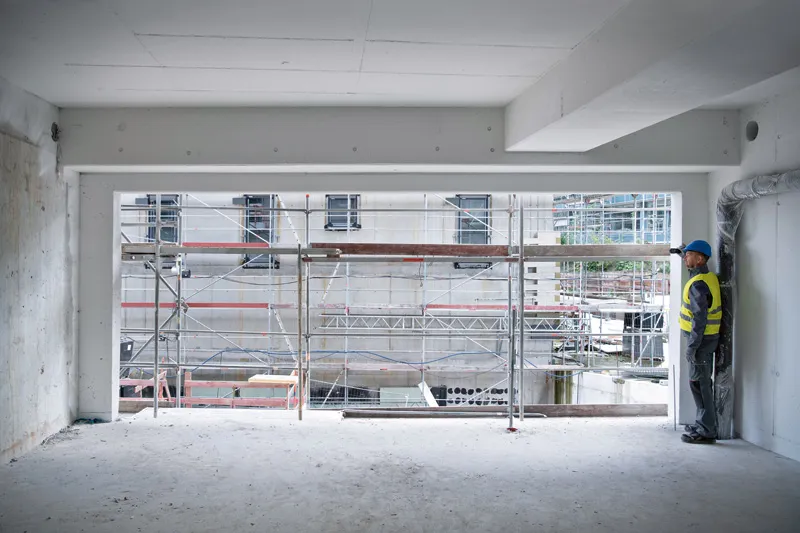

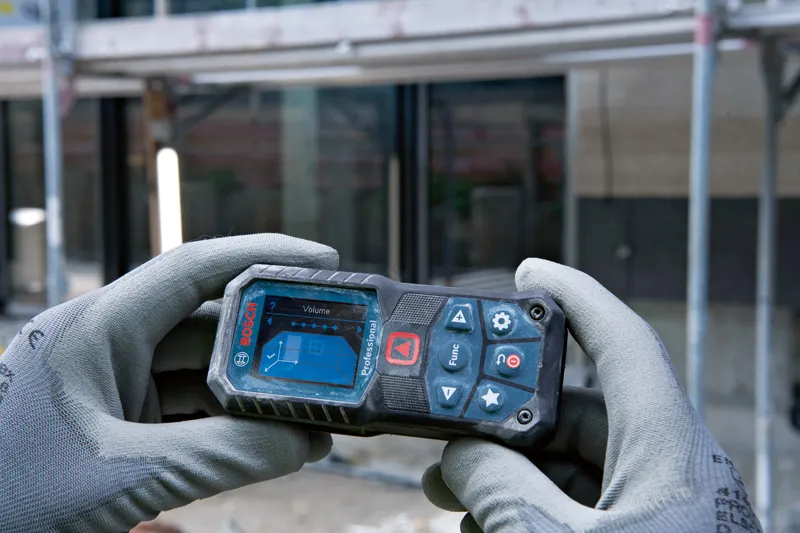

Laser measuring for rough job sites and easily adjustable to individual needs

  • Ideal for rough construction sites thanks to IP65 certification, shock-absorbing housing, and 1.5-m drop resistance

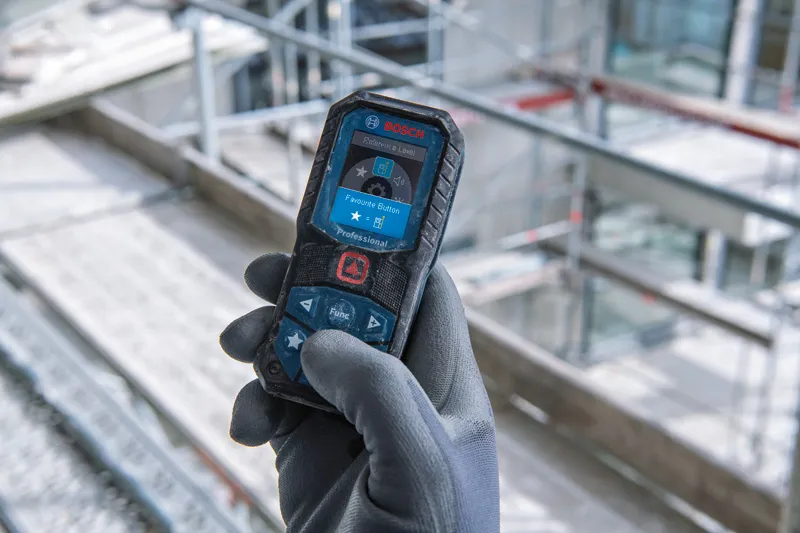

  • Customisable favourite button for preferred measurement functions or settings

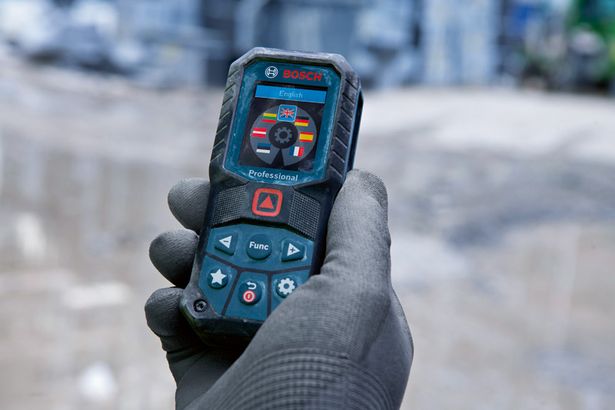

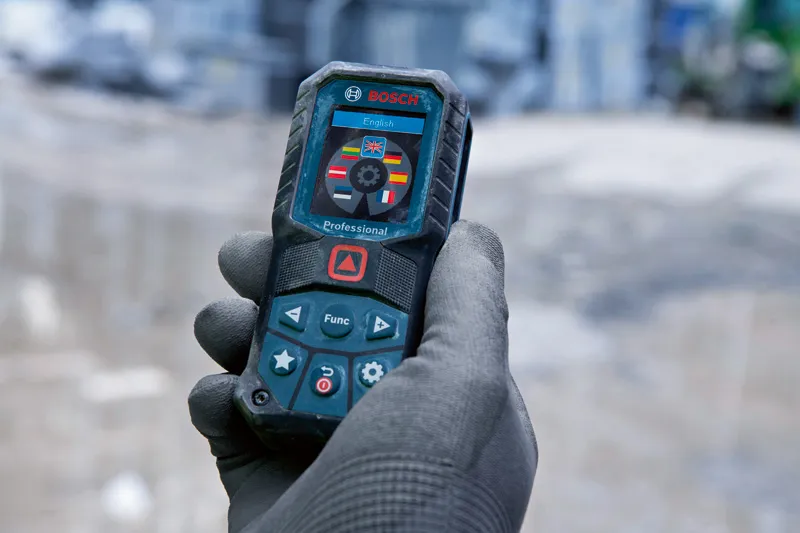

  • Intuitive user interface with a Big Numbers Mode for better readability, supporting 30 languages and a new help function

Functions & key features

Iso-Norm-16331 1-Icon-positive
Working range up to 50 m
IP65 dust tight and water jets protection
Colour display
Measurement accuracy ± 1.5 mm plus use-dependent deviation

Your Selection

  • with 2 x battery (AA), protective acc.
Show variant
Check availability on location
Find a local dealer
with 2 x battery (AA), protective acc. 0 601 072 S00
Find a local dealer

GLM 50-22 Professional

Your Selection

with 2 x battery (AA), protective acc.

Order number: 0 601 072 S00

Find a local dealer

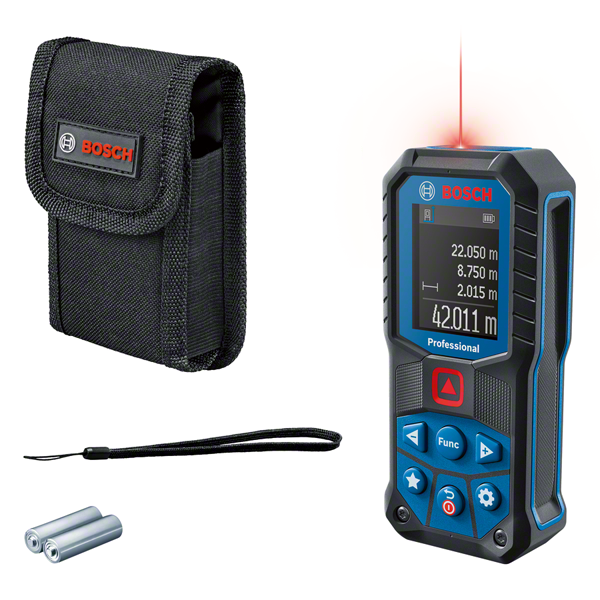

Included in this variant

  • Protective Bag
  • Carrying Strap
  • 2 x 1.5 V LR6 battery (AA)
Your selection

Technical data

Additional data
Dust and splash protection IP 65
Laser diode 635 nm, < 1 mW
Measurement range 0.05 – 50.00 m
Weight, approx. 0.2 kg
Measurement time, typical < 0.5 s
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement time, max. 4 s
Power supply 2 x 1.5 V LR6 (AA)
Automatic deactivation 5 min
Units of measurement m/cm/mm/ft/inch/ft-inch
Memory capacity (values) 10
Tripod thread 1/4"
Laser colour Red
Measuring range, up to 50 m

GLM 50-22 Professional: Further information

Product Highlights

The GLM 50-22 Professional withstands rough conditions on construction sites. Its IP65 design provides complete protection from dust particles and jets of water, while its shock-absorbing housing brings 1.5-m drop resistance even on hard concrete. With a customisable button, favourite measurement functions or settings can be defined. Its intuitive user interface supports 30 languages and consists of a colour display and Big Numbers Mode for better readability. For self-explaining usage it features a new help function that shows all measurement options.

Equipment & Application

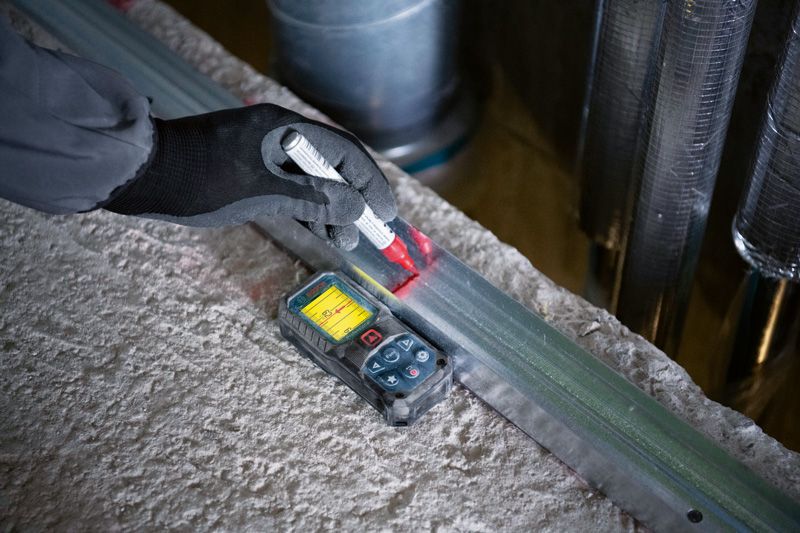

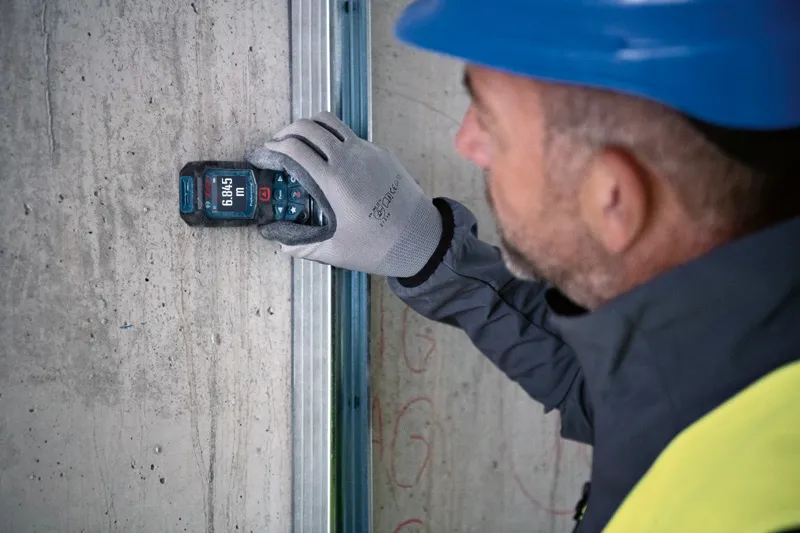

For electricians, HVAC installers, and plumbers, it is ideal when placing and fitting elements on wood, general, or drywall constructions. When used for finishing, it is perfect for painters, floor layers, tilers, or carpenters to calculate material needs.

Additional Information

Long battery runtime regardless of whether Alkaline batteries or the optional Li-ion battery pack is used.
