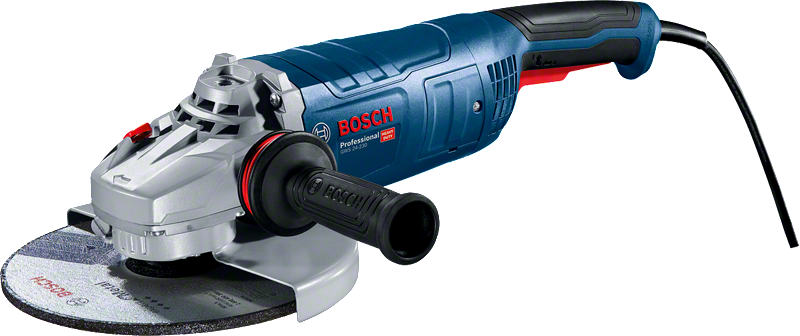

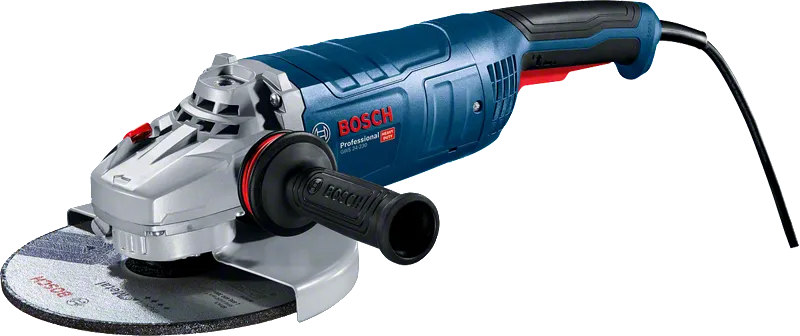

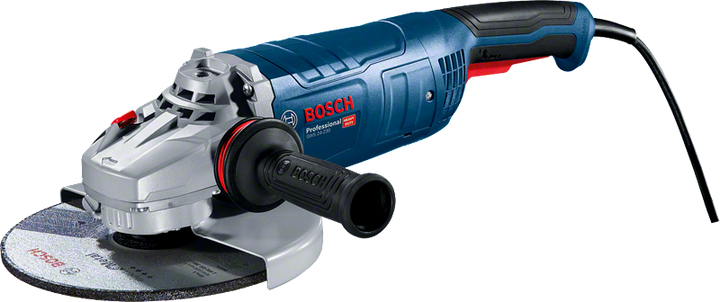

Angle Grinder GWS 24-230 P Professional

2400W of pure grinding power !

Technical data
Additional data
Rated input power 2,400   W
No-load speed 6,500 – 8,500   rpm
Disc diameter 230   mm
Grinding head, diameter 140   mm
Tool dimensions (width) 110   mm
Weight 5.8   kg
Grinding spindle thread M14
Main handle Barrel
Rubber backing pad, diameter 180   mm

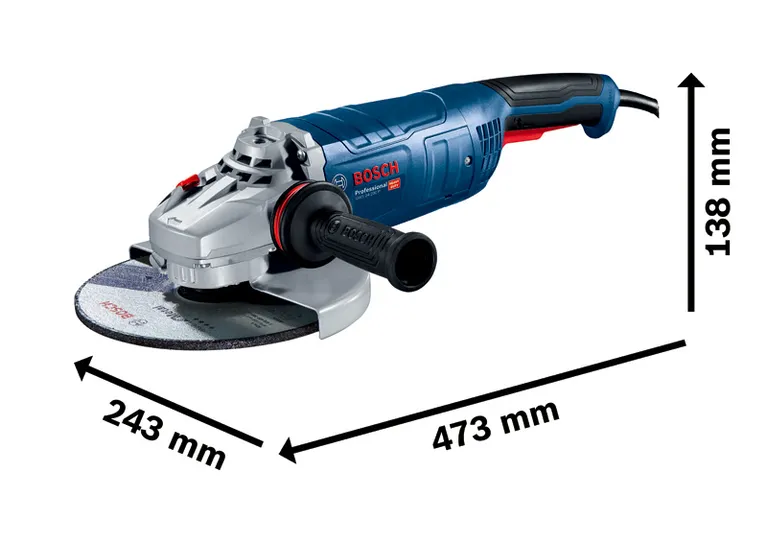

Tool dimensions (length) 480   mm
Tool dimensions (height) 140   mm
Switch Lockable Switch
Total vibration values (Surface grinding (roughing))
Vibration emission value ah 6.5   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Sanding with sanding sheet)
Vibration emission value ah 2.5   m/s²
Uncertainty K 1.5   m/s²

Advantages

2400W of pure grinding power !

  • • New patented motor has high overload capability and delivers up to 2X* increased material removal rate *compared to predecessor, under internal testing.
  • Precision engineered mechanical system together with the vibration control auxiliary handle reduces the vibration by 13%* for the operator *compared to predecessor, under internal testing.
  • Soft grip on rear handle improves tool grip and control while working

Functions

Ergonomic handling thanks to low weight and compact design
Metalworking The professional power tools for metalworking from Bosch.
Construction The professional power tools for construction from Bosch.
 Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles

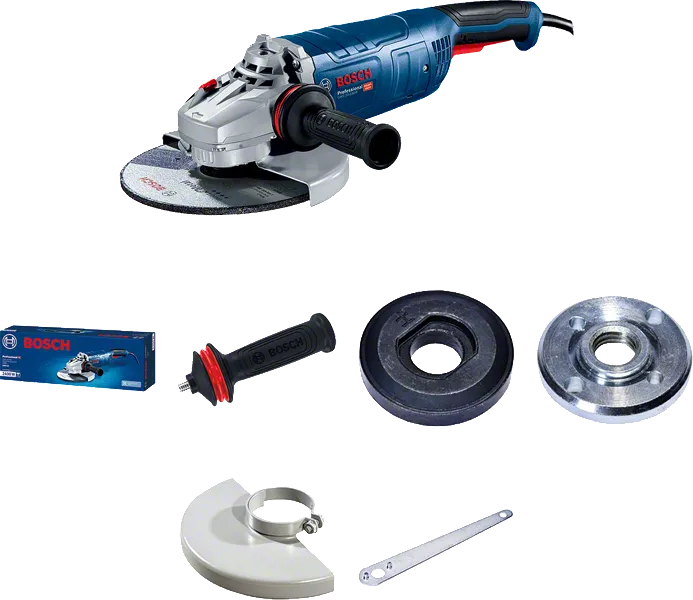

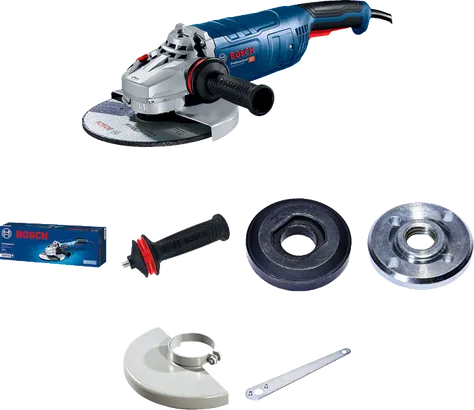

What’s Included in this Package
in cardboard box with spanner
in cardboard box with spanner
Order number: 0 601 8C3 101
  • Two-hole spanner 1 607 950 061
  • Backing flange (spare part number 2 605 703 014)
  • Locking nut 1 603 345 043
  • Cardboard box
  • Protective cover 1 619 P15 622
  • Auxiliary handle 1 602 025 030
Product variations (2)
The GWS 24-230 P in action!
