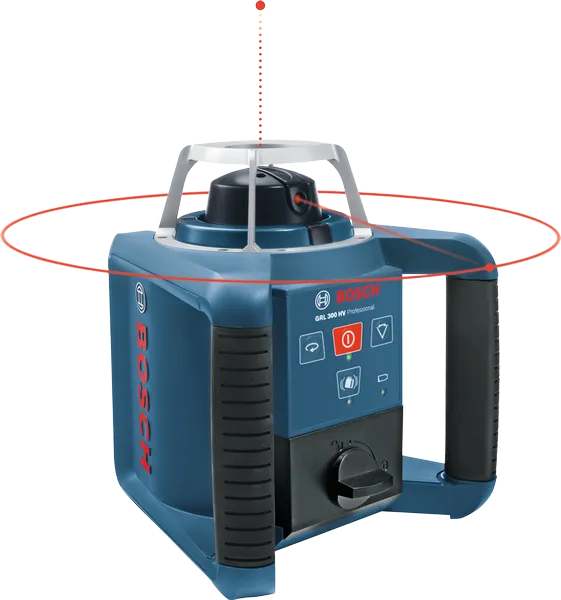

Technical data
| Additional data | |
|---|---|
| Working range* | 60 m |
| Working range with receiver* | 300 m (Diameter) |
| Accuracy* | ± 0.1 mm/m |
| Laser diode | 635 nm, < 5 mW |
| Operating temperature, from | -10 °C |
| Operating temperature, up to | 50 °C |
| Operating temperature | -10 – 50 °C |
| Storage temperature, from | -20 °C |
| Storage temperature, up to | 70 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 3R |
| Working range with receiver, value | 300 m |
| Working range with receiver, appendage | (Diameter) |
| Working range without receiver, value | 60 m |
| Working range without receiver, appendage | (Diameter) |
| Working range without receiver | 60 m (Diameter) |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Dust and splash protection | IP 54 |
| Rotation speed | 150, 300, 600 rpm |
| Power supply | 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D) |
| Operating time (max.) | Rechargeable batteries (NiMH) 30 h |
| Tripod thread | 5/8" |
| Weight, approx. | 1.8 kg |
| Colour of laser line | red |
* Highlighted Data
Advantages
Easy handling with horizontal and vertical self-levelling
- Easy to operate thanks to one button per function, and self-explanatory display
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations
Functions

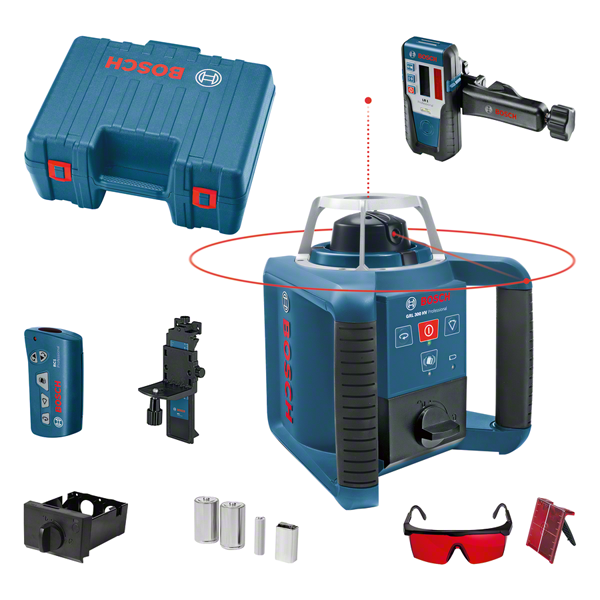

What’s Included in this Package
in carrying case with battery, accessory set
Order number:
0 601 061 501
- Battery compartment (spare part number 1 608 M00 05D)
- Carrying case
- Charger set with adapter (spare part number 1 600 A00 1W3)

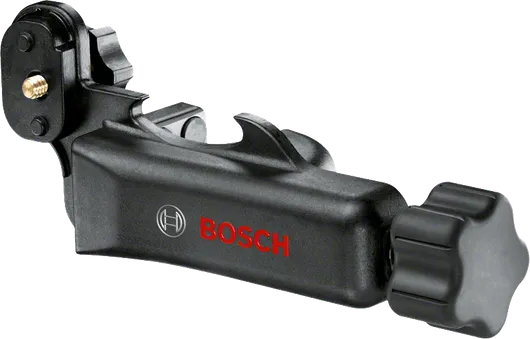

- Holder also available separately as an accessory (spare part number 1 608 M00 70F)

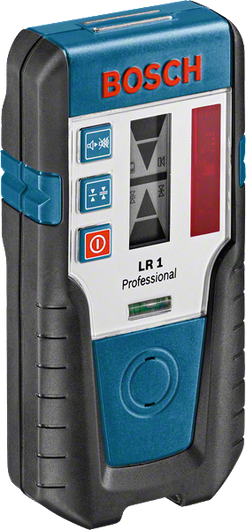

- Laser Receiver LR 1 Professional 0 601 015 400
- Laser target (red) (spare part number 1 608 M00 05C)

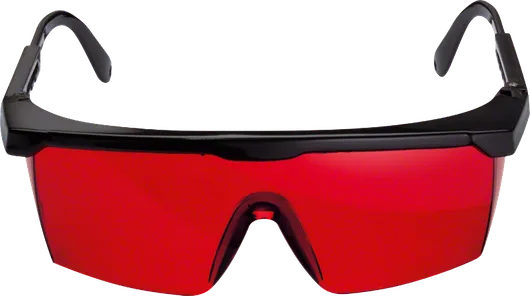

- Laser viewing glasses (red) (spare part number 1 608 M00 05B)
- Remote control RC1 Professional 0 601 069 900

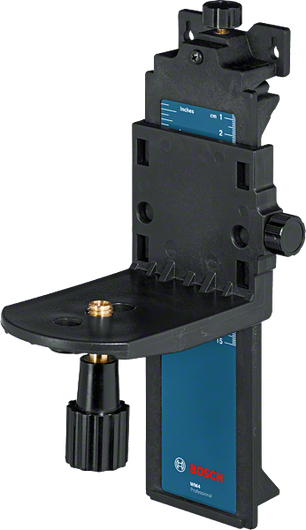

- Universal mount WM 4 Professional 0 601 092 400
- 1 x NiMH battery (spare part number 1 608 M00 05G)
- 1 x 9 V block battery (6LR61)
- 2 x 1.5 V LR20 battery
- 1 x 1.5 V LR6 battery (AA)
