Combi lasers

GCL 2-50 G Professional

Combi Laser

GCL 2-50 G
GCL 2-50 G

Durability and ease of use. Green laser lines and green plumb points

  • Durable design, featuring a rubberised housing with recessed glasses and dust and splash water protection IP 64 to withstand tough environments
  • ON/OFF switch and one-button keypad make for ease of use
  • Green laser lines and green plumb points provide enhanced visibility

Functions & key features

Easy to use
IP64 dust and splash water protection
Working with receiver for higher working range
Rotating mount RM 10 with very strong magnets
Power supply 4 x AA battery

Your Selection

  • with 4 x battery (AA), rotating mount RM 10
Change variant Find a local dealer

with 4 x battery (AA), rotating mount RM 10 0 601 066 M00

Select a variant

Your Selection

GCL 2-50 G
with 4 x battery (AA), rotating mount RM 10

Order number: 0 601 066 M00

Find a local dealer

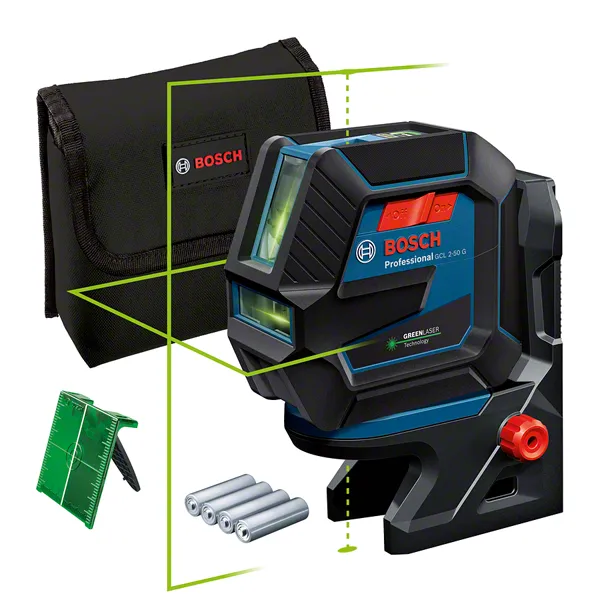

Included in all variants

  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Laser target plate
  • Rotating Mount RM 10 Professional
    Order number: 0 601 092 A00

Your Selection

GCL 2-50 G
with 4 x battery (AA), tripod

Order number: 0 601 066 M01

Find a local dealer

Included in all variants

  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Laser target plate
  • Rotating Mount RM 10 Professional
    Order number: 0 601 092 A00

Additional in this variant

  • Building tripod BT 150 Professional
    Order number: 0 601 096 B00

Your Selection

GCL 2-50 G
in carrying case with 4 x battery (AA), rotating mount RM 10

Order number: 0 601 066 M02

Find a local dealer

Included in all variants

  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Laser target plate
  • Rotating Mount RM 10 Professional
    Order number: 0 601 092 A00

Additional in this variant

  • Ceiling Clip DK 10 Professional
  • Carrying case

Technical data

Additional data

Colour of laser line green
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range up to 15 m
Working range with receiver up to 50 m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max. 10 m
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 64
Power supply 4 x 1.5 V LR6 (AA)
Tripod thread 1/4"
Weight, approx. 0.58 kg
Color of plumb points green
Projection 2 lines / 2 points
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Compatible laser receivers LR 7
Working range, value 15 m
Working range with receiver, value 50 m

GCL 2-50 G

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

GCL 2-50 G Professional: Further information

Product Highlights

The jobsite-ready combi laser GCL 2-50 G Professional makes alignment and transfer simple. Stay focussed on the task thanks to durable design, featuring a rubberised housing for better protection of the recessed glasses and dust and splash water protection IP 64. The ON/OFF switch and one-button keypad make for ease of use. For starting right away, the GCL’s laser receiver mode is always activated. Highly visible green laser lines and green plumb points give enhanced visibility in brighter environments.

Equipment & Application

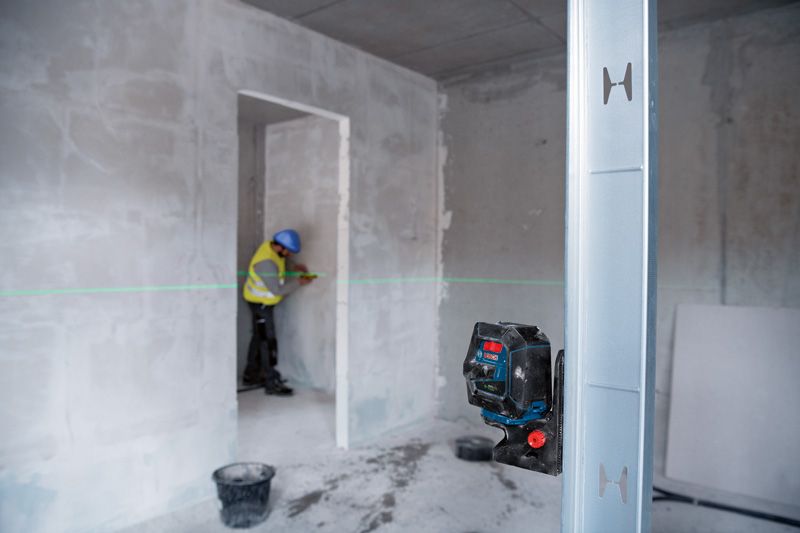

Fast and secure mounting thanks to the RM 10 Professional rotating mount with very strong magnets. The RM 10 Professional enables the precise positioning of laser lines around plumb points. The robust GCL 2-50 G Professional is ideal for many applications such as building framework for drywall, mounting sockets and doors, and point transfer for light mounting.

Additional Information

The GCL 2-50 G Professional provides working range lines up to 15 m (dots: up to 10 m), expandable up to 50 m with the optional receiver LR 7 Professional. The RM 10 Professional is compatible with the optional DK 10 Professional ceiling clip for ceiling applications or fine height adjustments.
