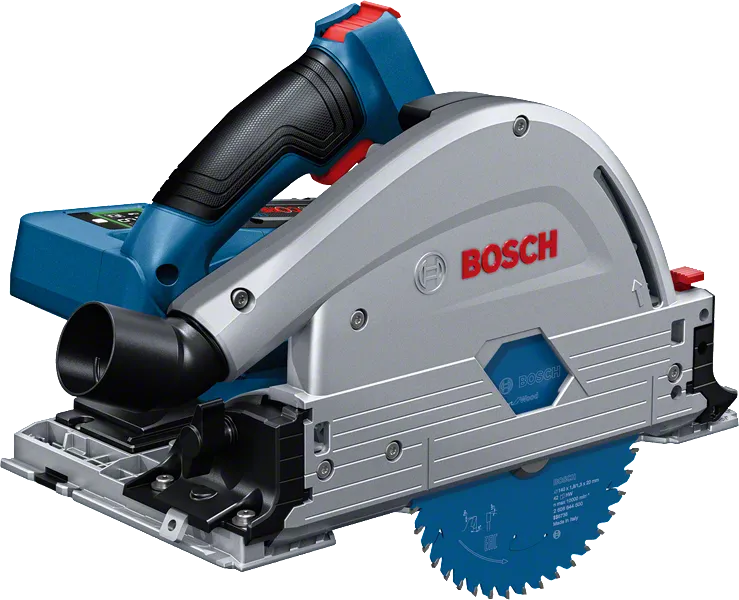

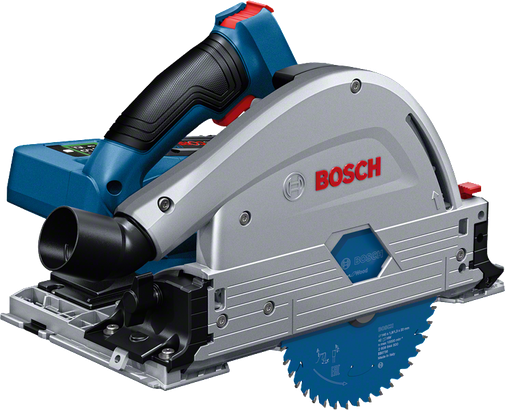

Technical data
| Additional data | |
|---|---|
| Weight excl. battery | 4.1 kg |
| Saw blade diameter | 140 mm |
| Saw blade bore diameter | 20 mm |
| No-load speed | 2,800 – 5,500 rpm |
| Baseplate | 305 x 169 mm |
| Bevel angle | -1 - 47 ° |

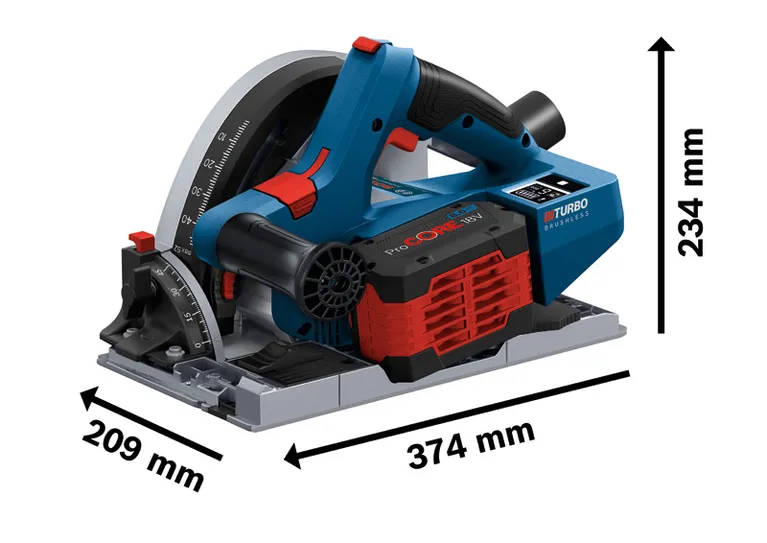

| Tool dimensions (width) | 209 mm |
| Tool dimensions (length) | 374 mm |
| Tool dimensions (height) | 234 mm |
| Cutting depth without guide rail (90°) | 52 mm |
| Cutting depth with guide rail (90°) | 46 mm |
| Cutting depth without guide rail (45°) | 32 mm |
| Cutting depth with guide rail (45°) | 32 mm |
| Total vibration values (Wood sawing) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
Better than a corded plunge saw: Superior mobility with corded performance in the 18V category
- Maximum cordless cutting performance equal to a corded saw due to the new BITURBO Brushless technology
- Superior mobility due to its uniquely compact design for less to carry and to handle

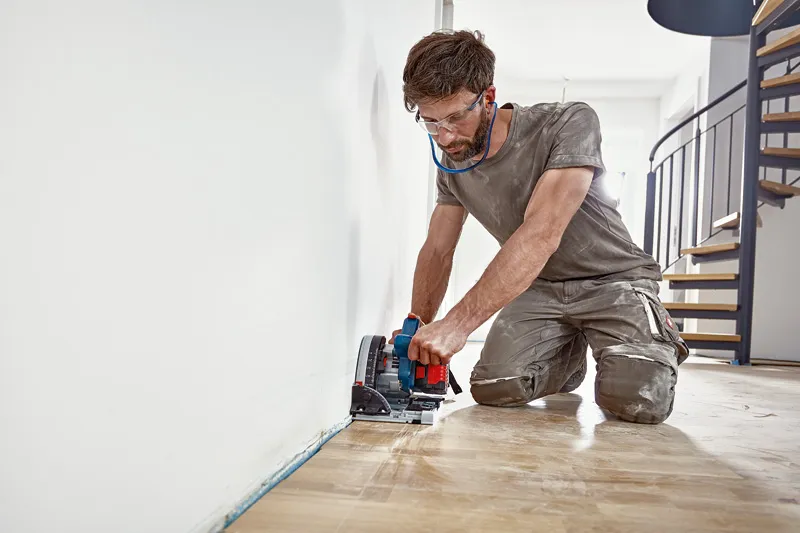

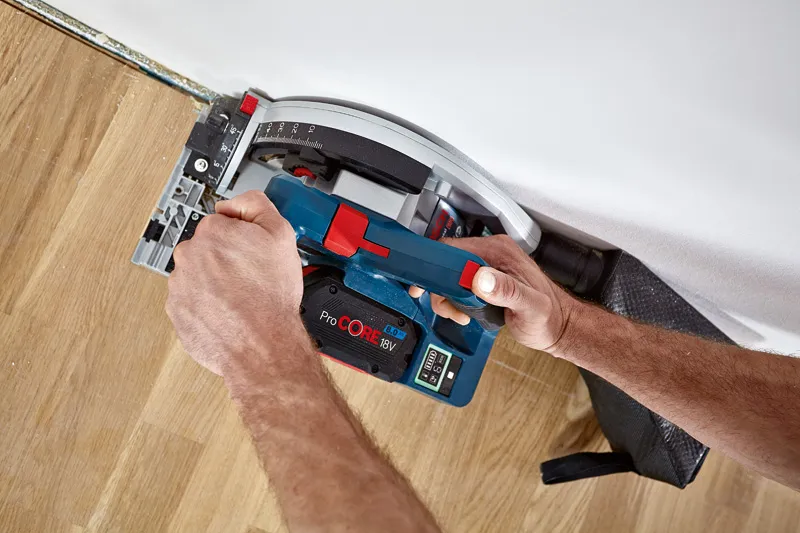

- Very compact design enables minimum distance between saw blade and wall of only 10 mm
Functions

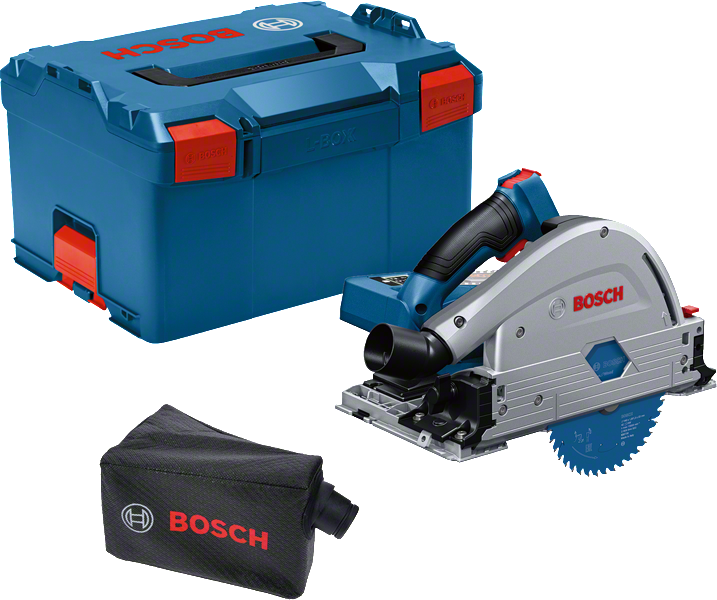

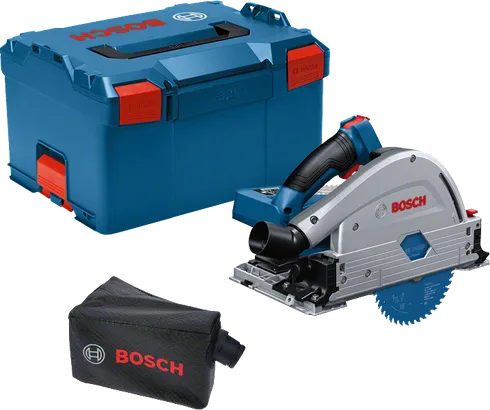

What’s Included in this Package
with Hex key
Order number:
0 601 6B4 000
- 1 x circular saw blade, Expert for Wood for cordless saws, 140 x 1.8/1.3 x 20 mm, 42 2 608 644 500
- L-BOXX 238 1 600 A01 2G2
- Dust bag 2 608 000 696
- 1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 3WF
- Hex key
481.00 JOD
Recommended retail price excluding VAT.
