Laser measures

GLM 100-25 C Professional

Laser Measure

GLM 100-25 C

Precise laser measure for easy indoor and outdoor measuring and documenting

  • Accurate, 100-m laser measuring thanks to digital camera viewfinder with zoom function
  • Large, high-contrast IPS colour display with flip screen ensures optimal reading
  • Laser measure connects via Bluetooth for efficient data documentation

Functions & key features

 Iso-Norm-16331 1-Icon-positive
 Bosch MT Icon GLM 100C Range Target 0.05-100 m pos
Real time view
IP54 dust and splash water protection
 Get connected – personalise your tool and exchange information with your App. Enables fast connection of tool and Bosch Power Tools App for easy access, customisation, maintenance and asset management.

Your Selection

  • with 3 x battery (AA), protective acc.
Show variant Find a local dealer

with 3 x battery (AA), protective acc. 0 601 072 Y00

GLM 100-25 C Professional

Your Selection

GLM 100-25 C
with 3 x battery (AA), protective acc.

Order number: 0 601 072 Y00

Find a local dealer

Included in this variant

  • Protective Bag
  • Carrying Strap
  • 3 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Dust and splash protection IP 54
Measurement time, typical < 0.5 s
Laser diode 650 nm, < 1 mW
Measurement range 0.08 – 100.00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mmᵈ
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°ᶜ
Measurement time, max. 4 s
Power supply 3 x 1.5 V LR6 (AA)
Automatic deactivation 5 min
Weight, approx. 0.23 kg
Units of measurement m/cm/mm/ft/inch/ft-inch
Memory capacity (values) 50
Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red
Measuring range, up to 100 m
GLM 100-25 C

GLM 100-25 C Professional: Further information

Product Highlights

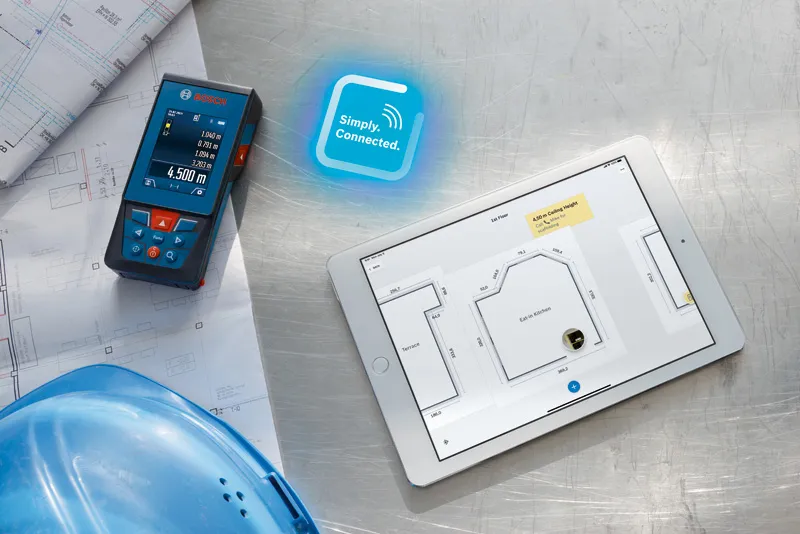

This professional outdoor laser measure features a digital camera viewfinder with a zoom function that precisely measures distances up to 100 m. The camera picture and measurements are easy to see on the big, high-contrast, 2.8” IPS colour display, which rotates for portrait or landscape view. For convenient documentation, measurement results can be transferred via Bluetooth to the Bosch MeasureOn App. This laser measure is the ideal solution for tough job sites thanks to IP54 dust and water protection, and scratch-resistant display glass.

Equipment & Application

Architects, construction managers, and electricians will appreciate the outdoor capability, easy readability, and convenient documentation of this robust laser measure.

Additional Information

The GLM 100-25 C Professional has a user-friendly HMI interface with a click wheel for access to all features. A useful help option displays detailed images of each measuring function for easy comprehension.
