Angle measurers and inclinometers

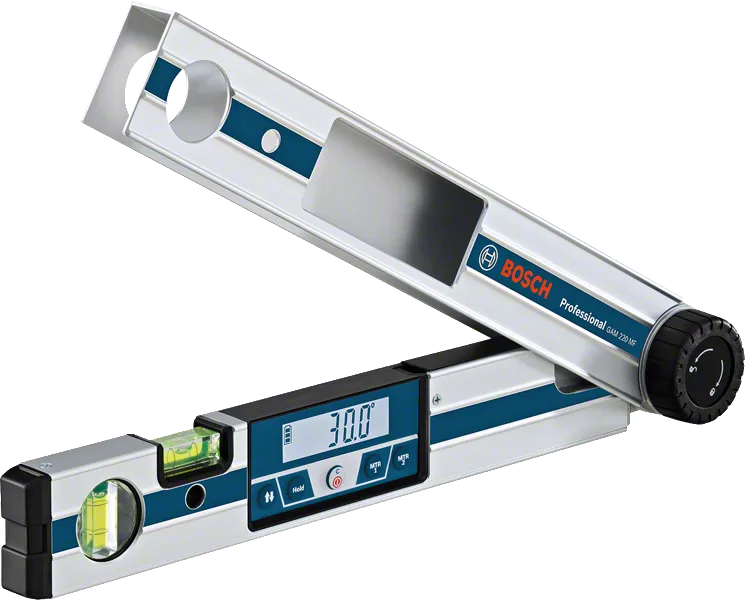

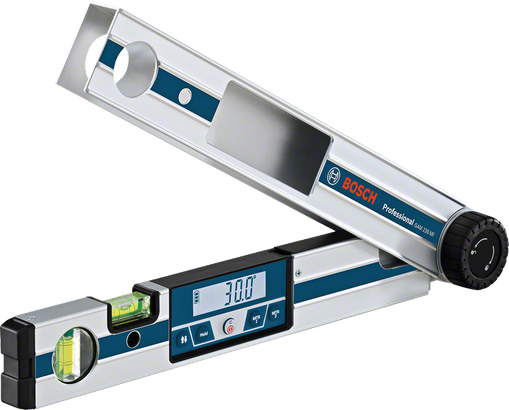

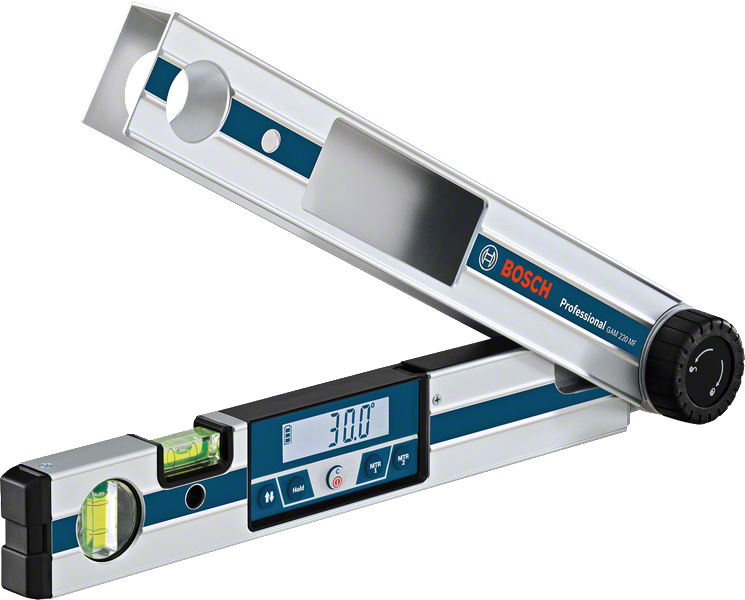

GAM 220 MF Professional

Angle Measurer

Fast calculation of mitre angles

  • Rapid calculation and transfer of angles by means of memory function for frequently used angle dimensions
  • Automatic calculation of single and double mitre angles without any other tools
See technical details

Functions & key features

MTR1/MTR2 Automatic calculation of mitre angles at the press of a button
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Hold Hold function for intermediate storage of measured values
Flip Display Rotating readout on display
Display lighting Illuminated display

Your Selection

  • with 4 x battery (AA), accessory set
Show variant Find a local dealer

with 4 x battery (AA), accessory set 0 601 076 600

GAM 220 MF Professional

Your Selection

with 4 x battery (AA), accessory set

Order number: 0 601 076 600

Find a local dealer

Technical data

Additional data

Measurement range 0 – 220°
Arm length 40 cm
Measurement accuracy, angles ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80 h
Automatic deactivation, approx. 30 min
Weight, approx. 1.2 kg
