Angle measurers and inclinometers

GIM 120 Professional

Digital Inclinometer

Longer for maximum precision

  • Measures precise tilts in degrees, percent or millimetres/metres
  • Direction arrows and audible signals at 0° and 90° for easy alignment
  • Measured values automatically turn on the display when working overhead
See technical details

Functions & key features

Hold and Copy Hold/Copy function
Flip Display Rotating readout on display
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54

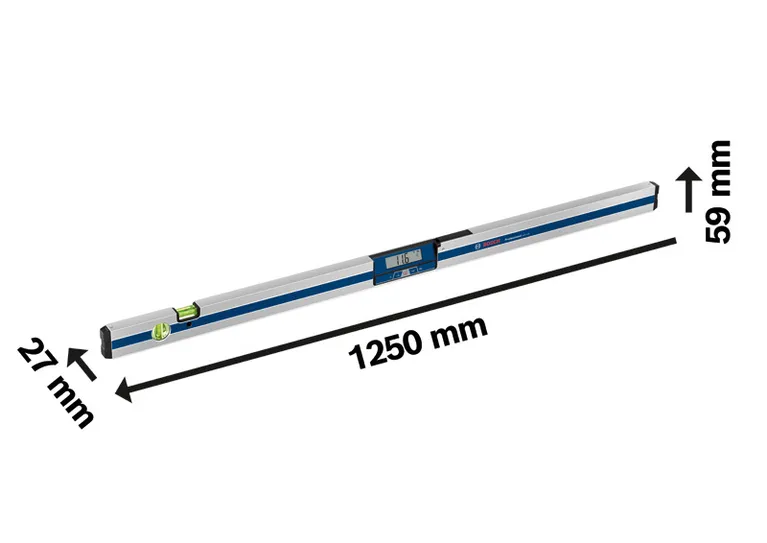

Length of GIM 120 Length 120 cm

Your Selection

  • with 4 x battery (AA), Protective Bag
Show variant Find a local dealer

with 4 x battery (AA), Protective Bag 0 601 076 800

GIM 120 Professional

Your Selection

with 4 x battery (AA), Protective Bag

Order number: 0 601 076 800

Find a local dealer

Technical data

Additional data

Length 120 cm
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.2°
Measurement accuracy, vials ± 0.057° = ± 1 mm/m
Operating duration, inclination measurem., approx. 200 h
Weight approx. 1.3 kg
Units of measurement °, %, mm/m
