GLL 3-80 CG Professional
Line Laser
3 x 360° bold green lines for optimal visibility. Simply connected.
- Bright green laser lines offer up to four times better visibility than red lines

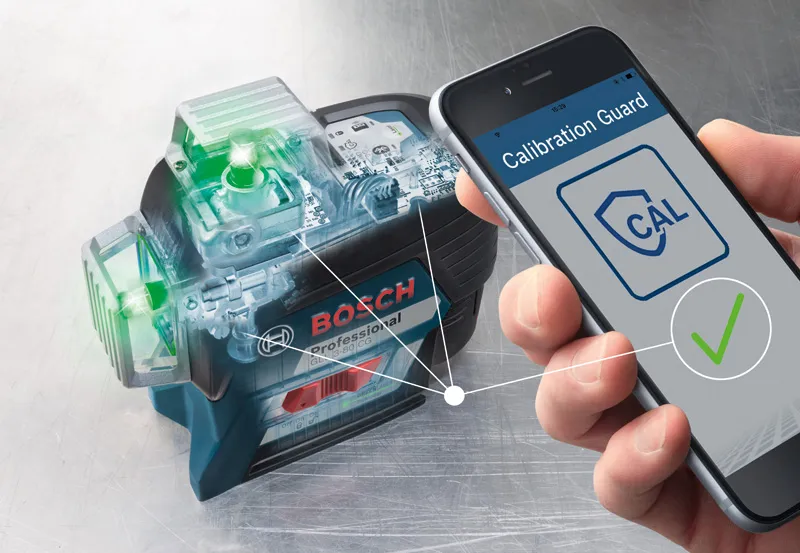

- Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
- 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work
Functions & key features
GLL 3-80 CG Professional
Your Selection
Order number: 0 601 063 T70

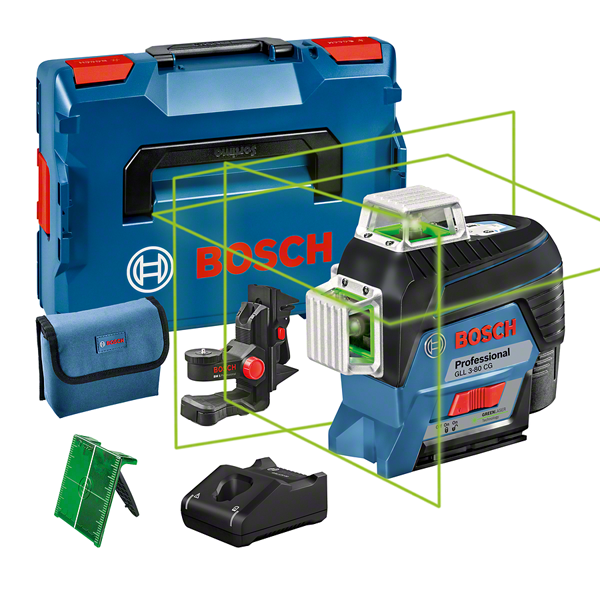

This product includes
- L-BOXX 136 1 600 A01 2G0
- Universal mount BM 1 Professional 0 601 015 A01
- Laser target plate
- Pouch
- 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
- Quick charger GAL 12V-40 Professional 1 600 A01 9R4
Show less
Show more
Technical data
Additional data |
|
|---|---|
| Working range with receiver, value | 120 m |
| Dust and splash protection | IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter) |
| Battery voltage | 12 |
| Working range, value | 30 m |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | up to 30 m |
| Working range with receiver | up to 120 m |
| Accuracy | +/- 0.2 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.9 kg |
| Colour of laser line | green |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 7 |
GLL 3-80 CG Professional: Further information
Product Highlights

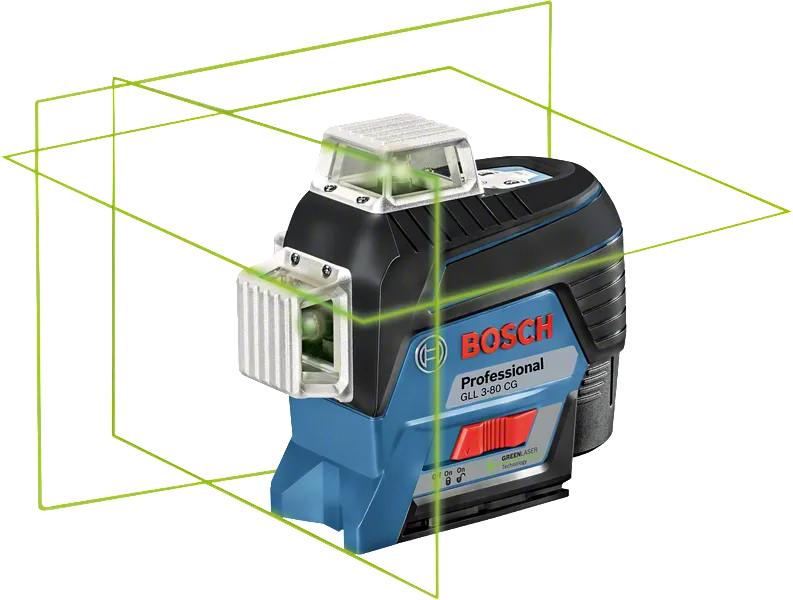

The line laser GLL 3-80 CG Professional is simply connected and projects bold 3 x 360° lines for maximum visibility. Bright green laser lines offer up to four times better visibility than red lines. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. This tool's 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work.
Equipment & Application

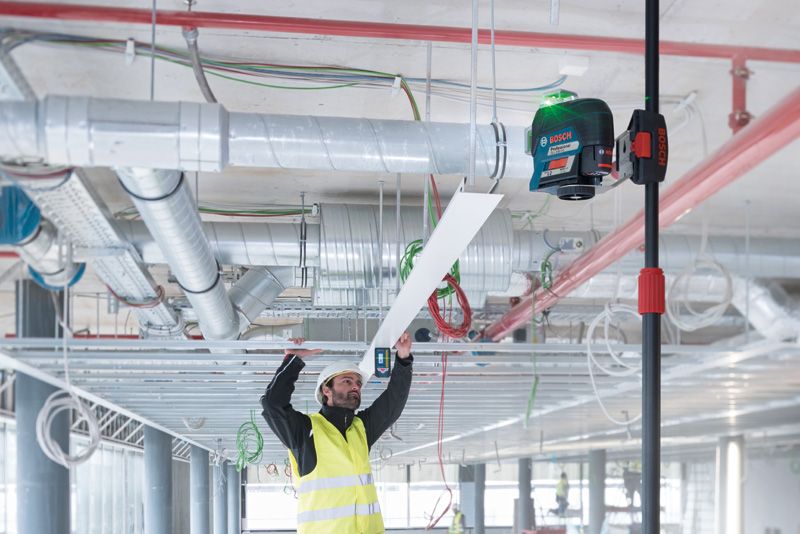

This line laser was developed for building floors, installing windows, mounting shelves, building framework for drywall, and laying tiles.
Additional Information
Due to the GLL 3-80 CG Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54***).
