Line lasers

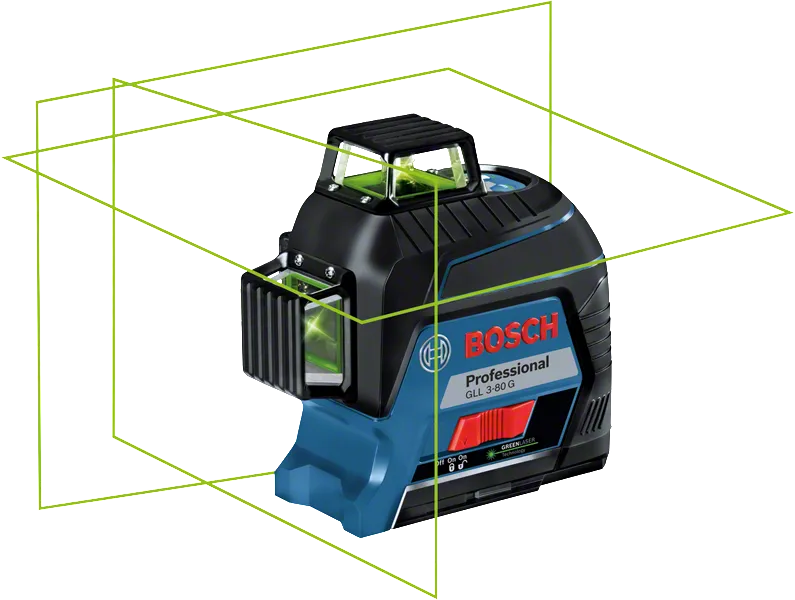

GLL 3-80 G Professional

Name: GLL 3-80 G
Brand: Bosch power tools
SKU: 0601063Y00
Availability: InStock

Line Laser

3 x 360° bold green lines for optimal visibility

Bright green lines provide up to four times better visibility than red lines
Perfect for simultaneous horizontal and vertical levelling applications thanks to three lines, for highly efficient work
Intuitive user interface makes it easy to operate

Functions & key features

Your Selection

in carrying case with 4 x battery (AA), laser target plate

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with 4 x battery (AA), laser target plate 0 601 063 Y00

Find a local dealer

GLL 3-80 G Professional

Your Selection

in carrying case with 4 x battery (AA), laser target plate

Order number: 0 601 063 Y00

Find a local dealer

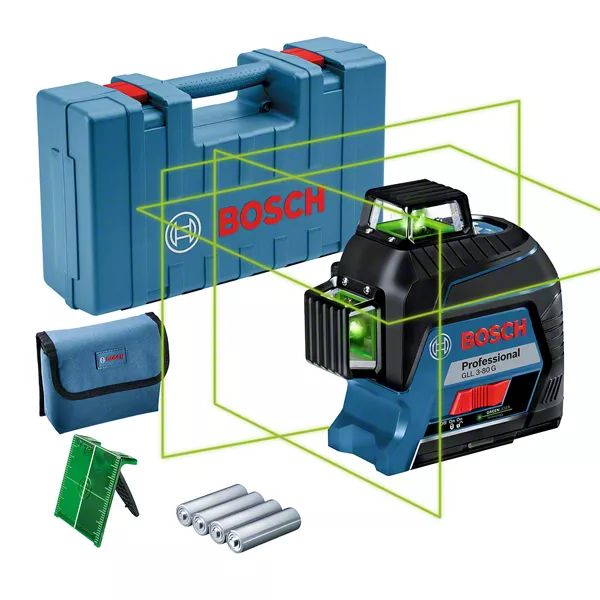

Included in this variant

4 x 1.5 V LR6 battery (AA)
Pouch
Laser target plate
Carrying case

Your selection

Technical data

Additional data
Working range with receiver, value	120 m
Working range	up to 30 m
Working range with receiver	up to 120 m
Accuracy	± 0,3 mm/mᵃ/ ( plus use-dependent deviation)
Projection	3 x 360° line
Working range, value	30 m
Operating temperature	-10 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	2
Self-levelling range	± 4°
Levelling time	4 s
Power supply	4 x 1.5 V LR6 (AA)
Tripod thread	1/4",5/8"
Weight, approx.	0.82 kg
Colour of laser line	green

GLL 3-80 G Professional: Further information

Product Highlights

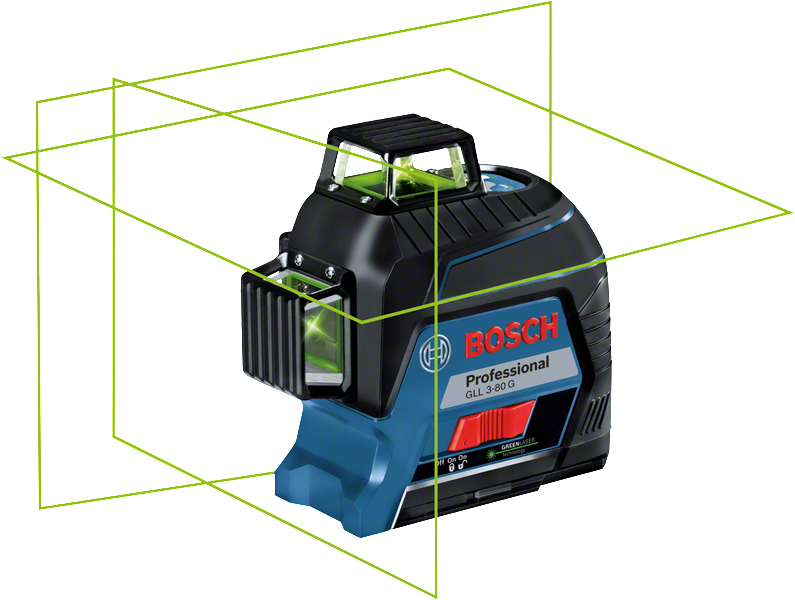

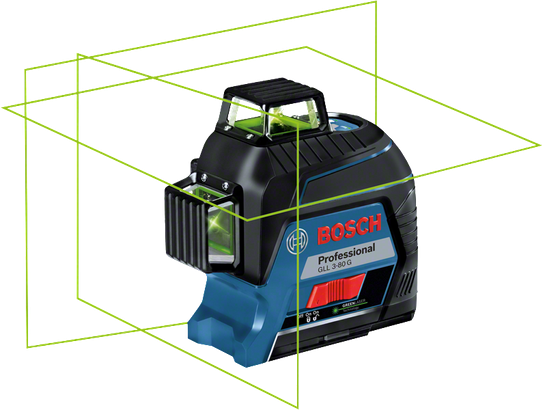

The line laser GLL 3-80 G Professional projects b1old 3 x 360° lines for high visibility. Its bright green lines provide up to four times better visibility than red lines. The tool can be used to set up entire rooms and is perfect for simultaneous horizontal and vertical levelling applications thanks to its three lines, for highly efficient work. An intuitive user interface makes it easy to operate.

Equipment & Application

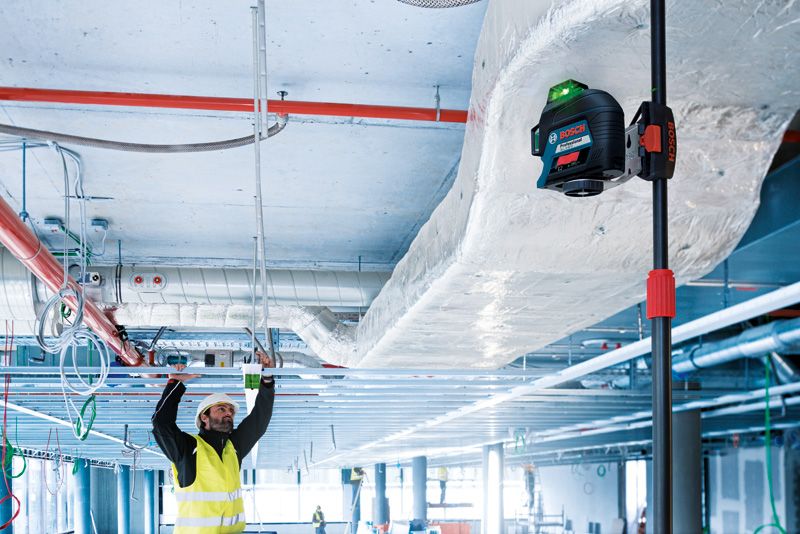

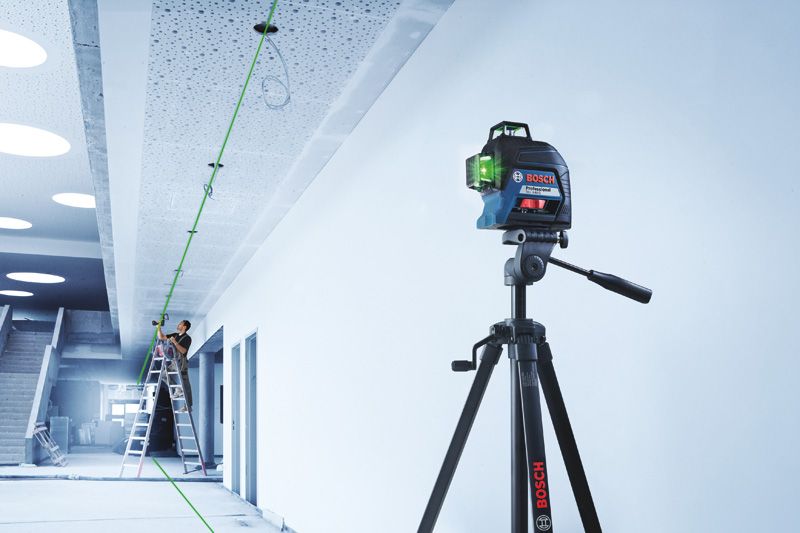

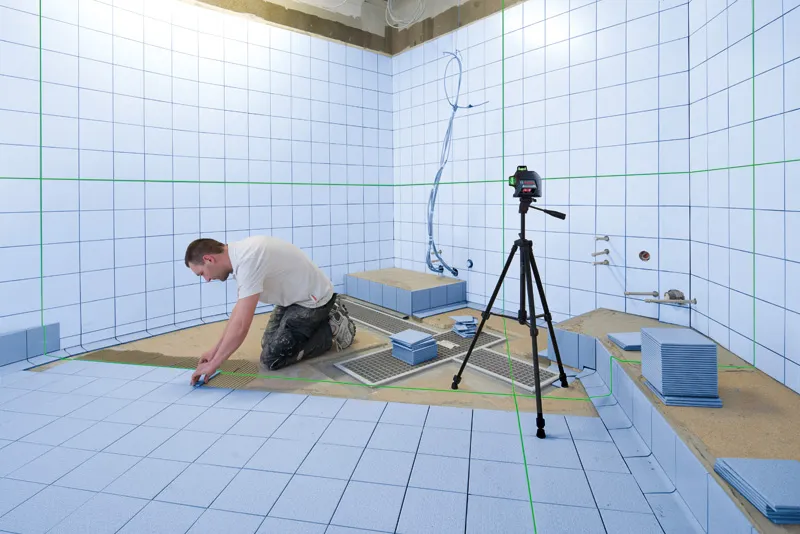

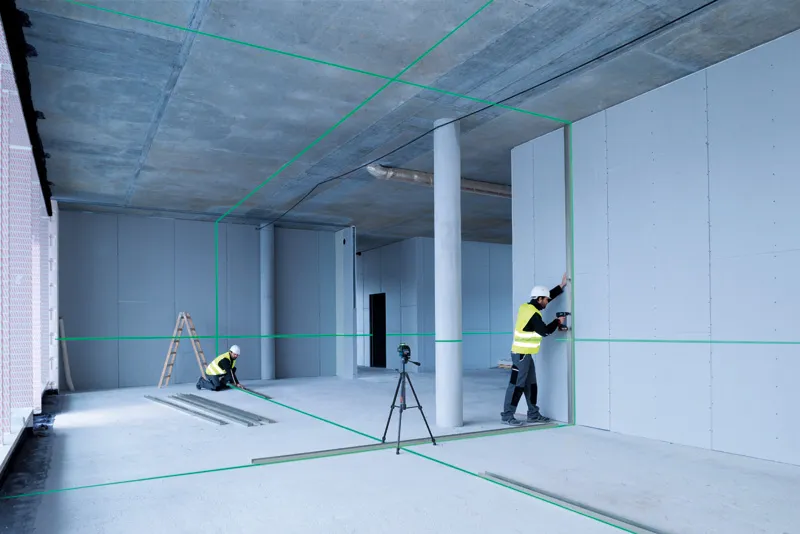

This tool is designed for various applications including suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building frameworks for drywalls, general construction, and laying tiles.

Additional Information

The GLL 3-80 G Professional can self-level up to ± 4° in less than 4 seconds, has a precision of ± 0.3 mm/m*/**, and a range of up to 120 m with the optional laser receiver LR 7. It is compact, easy to handle, and robust.
