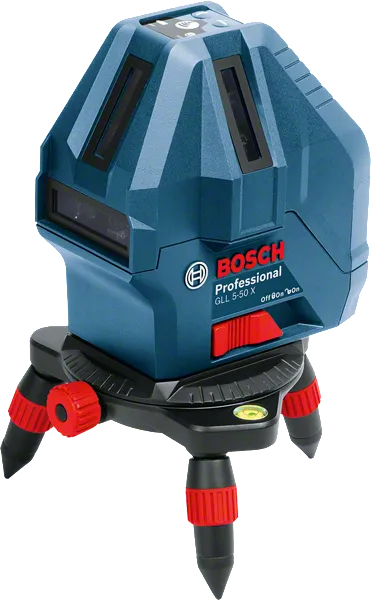

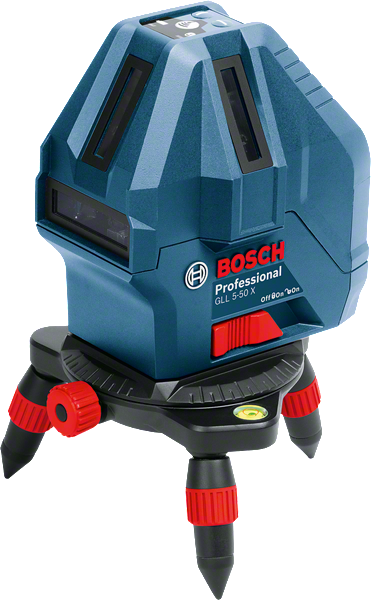

Line Laser GLL 5-50 X Professional

Better line visibility for increased work efficiency in everyday interior levelling jobs

Technical data
Additional data
Working range* 15   m
Working range with receiver* 50 m
Accuracy* ± 0.2 mm/m
Laser diode 630 – 650 nm, < 1mW
Operating temperature, from -10   °C
Operating temperature, up to 45   °C
Operating temperature -10 – 45   °C
Storage temperature, from -20   °C
Storage temperature, up to 70   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range with receiver, value 50   m
Working range of laser points, max. 5 m (bottom)
Self-levelling range ± 3°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 24 h
Tripod thread 5/8"
Weight, approx. 0.5   kg
Colour of laser line red

* Highlighted Data

Advantages

Better line visibility for increased work efficiency in everyday interior levelling jobs

  • Greater Visibility - On front cross for better working performance
  • Compact - Light and easy-to-carry
  • Robust - Thanks to the highly sophisticated Bosch pendulum precision system (PPS) which further enhances tool protection and levelling accuracy

Functions

Working range Range of up to 15 m
Self Levelling 3° Self-levelling ± 3°
Levelling accuracy 0.2 mm Levelling accuracy ± 0.2 mm/m
IP protection 54 Dust and splash protection IP54
Pendulum Prec. System Precision pendulum system consists of high-precision, hardened shaped parts and optics with shock absorber
Intell. Current Management Intelligent current management helps to monitor the laser diode temperature and to maximise laser visibility without overheating
Detach. Rotating Platform Rotating mini tripod makes fine positioning easier
Working range + receiver Range with receiver up to 50 m
Laser scheme packaging Accurate alignment due to one horizontal laser line and two vertical 360° laser lines
What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 063 N00
  • Protective Bag
  • Tripod adapter (spare part number 1 609 203 C10)
  • 4 x 1.5 V LR6 battery (AA)

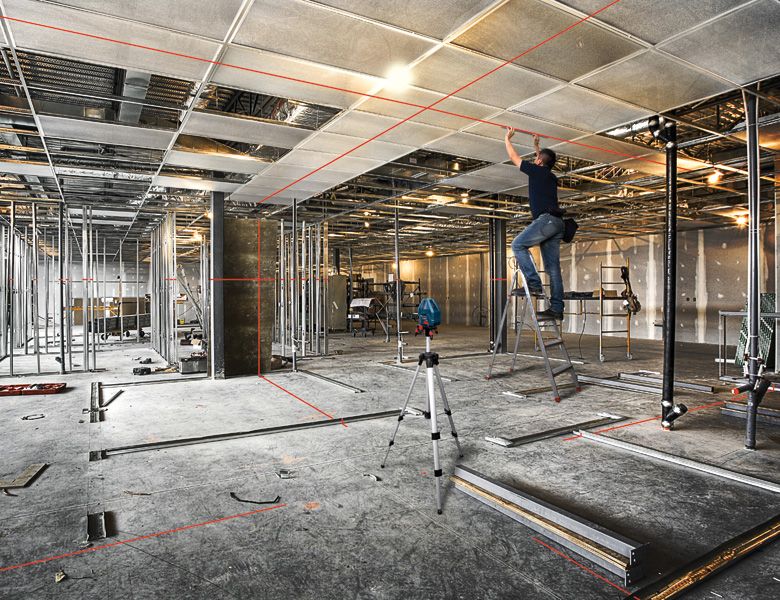

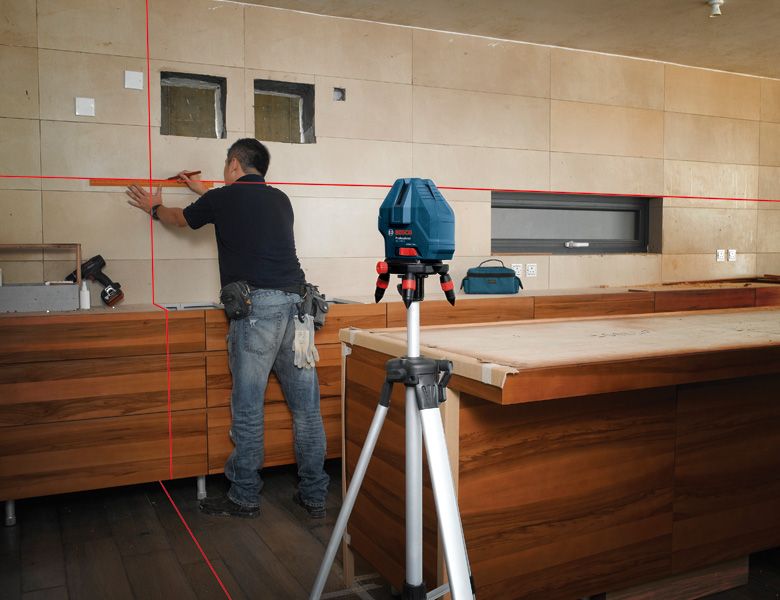

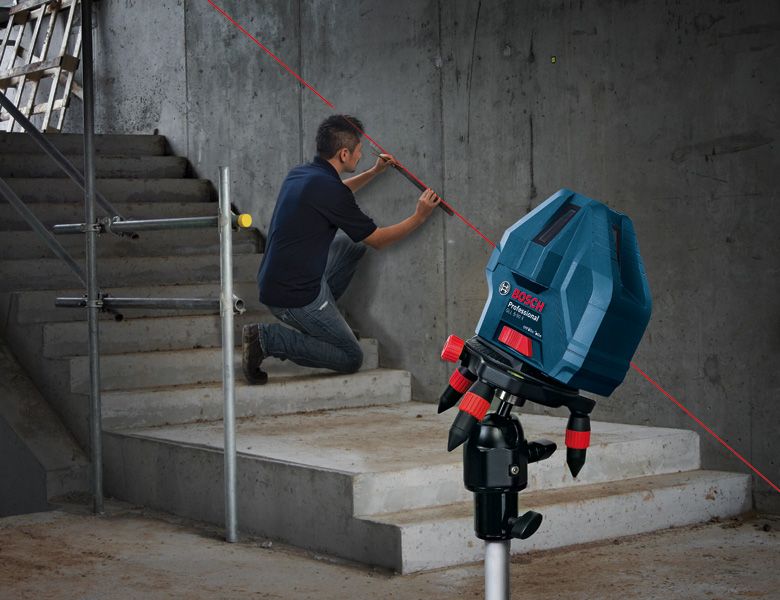

The GLL 5-50 X in action!
