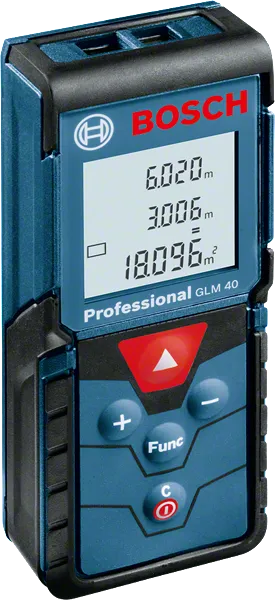

Laser Measure GLM 40 Professional

All in one – all relevant measurement modes in one compact design

Technical data
Additional data
Laser diode* 635 nm, < 1 mW
Measurement range* 0.15 – 40.00   m
Weight, approx.* 0.09   kg
Measurement time, typical < 0.5 s
Laser class 2
Measurement accuracy, typical ± 1.5 mm (plus use-dependent deviation)
Measurement time, max. 4   s
Power supply 2 x 1.5 V LR03 (AAA)
Automatic deactivation 5   min
Units of measurement m/cm, ft/inch
Memory capacity (values) 10
Dust and splash protection IP 54

* Highlighted Data

Advantages

All in one – all relevant measurement modes in one compact design

  • All significant modes: standard length, surface, and volume calculation as well as indirect height measurements
  • Easy to read thanks to illuminated display that showcases last three results
  • Memory function saves the last 10 measurements automatically for quick reference

Functions

Certification Certification with ISO standard 16331-1
Laser class 2 Laser class for measuring tools.
Drop test Shock protection up to 1m

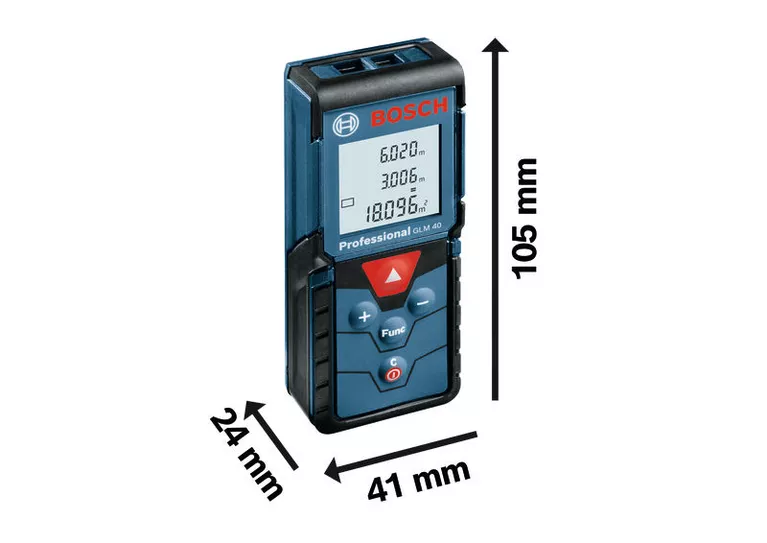

Size GLM 40 Compact size: 10 x 4 cm
Square metres Area measurement
Distance measuring range 40 m Measuring range of 0.15 to 40 m
Icon
IP protection 54 Dust and splash protection IP54
Icon

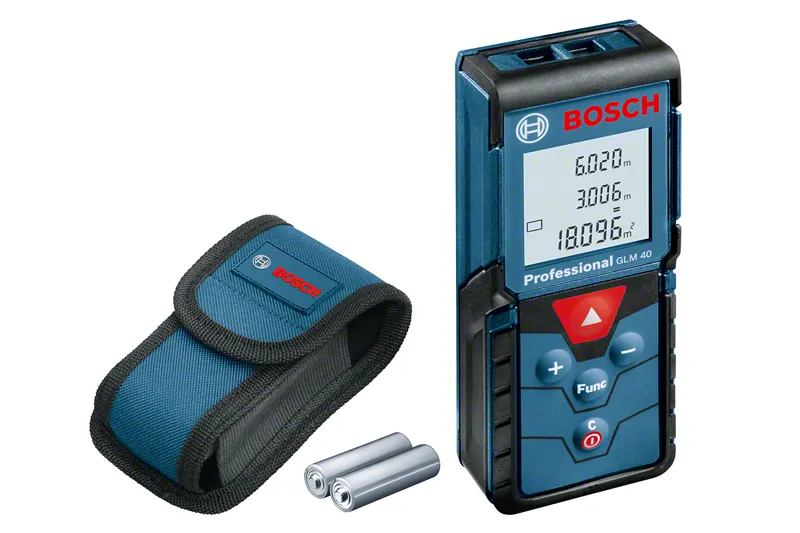

What’s Included in this Package
with 2 x battery (AAA), accessory set
with 2 x battery (AAA), accessory set
Order number: 0 601 072 900
  • Manufacturer’s certificate
  • Protective Bag
  • 2 x 1.5 V LR03 battery (AAA)

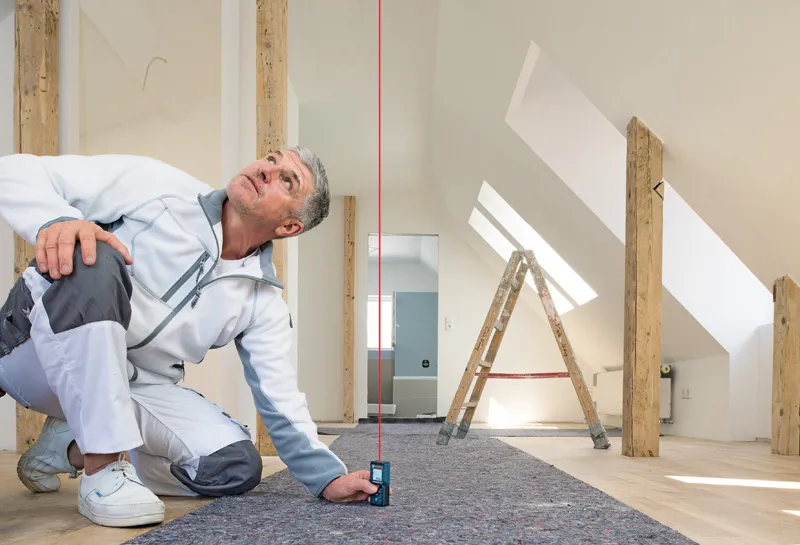

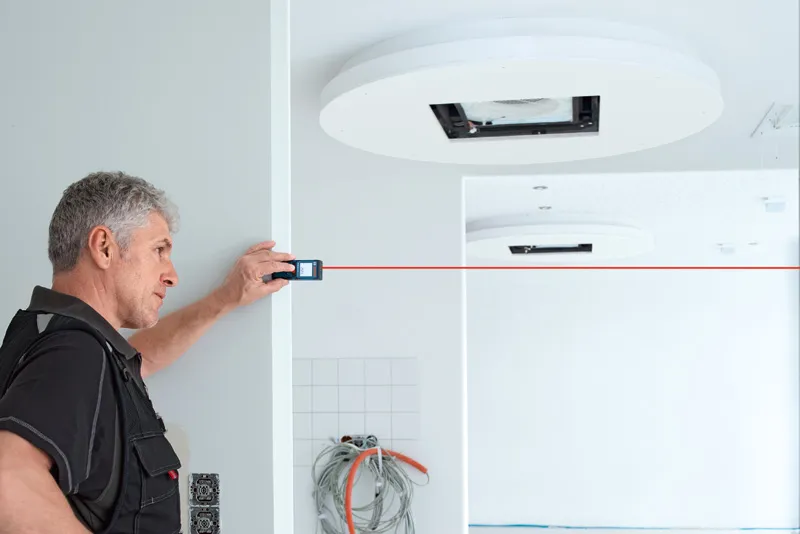

The GLM 40 in action!
