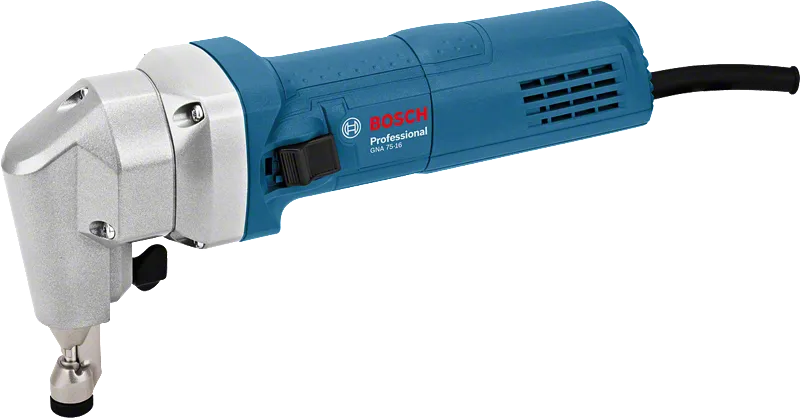

Nibbler GNA 75-16 Professional

The powerful and handy tool for cutouts of all kinds

Technical data
Additional data
Cutting capacity in steel (400 N/mm²), max.* 1.6 mm
No-load stroke rate* 2,600 spm
Material that can be processed Steel up to 400 N/mm² at 1.6 mm
Cutting track width 5 mm
Pre-drilling for interior cut-outs 21 mm
Smallest radius 40 mm
Stroke rate under load 2,100 spm
Weight 1.8 kg
Tool dimensions (length) 290 mm
Tool dimensions (height) 142 mm
Cutting capacity in steel (600 N/mm²), max. 1 mm
Cutting capacity in steel (800 N/mm²), max. 0.7 mm
Cutting capacity in aluminium (200 N/mm²), max. 2 mm
Electric specifications
Rated input power* 750 W
Power output 400 W
Total vibration values (Cutting sheet metal)
Vibration emission value ah 10 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.

Advantages

The powerful and handy tool for cutouts of all kinds

  • Slim, narrow design for optimum handling
  • The powerful and handy tool for cutouts of all kinds
  • Working to scribe mark and template easily possible
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 529 400
  • Die plate 2 608 639 028
  • Punch 2 608 639 027
The GNA 75-16 in action!
