Technical data
| Additional data | |
|---|---|
| Rated input power | 1,500 W |
| Weight | 4.8 kg |

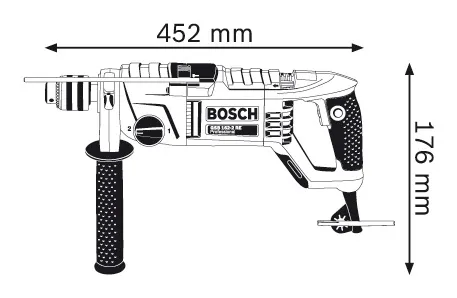

| Tool dimensions (width) | 97 mm |
| Tool dimensions (length) | 464 mm |
| Tool dimensions (height) | 175 mm |
| No-load speed, 1st gear | 0 – 750 rpm |
| No-load speed, 2nd gear | 1,800 rpm |
| Power output | 840 W |
| Rated speed | 555 / 1,300 rpm |
| Rated torque | 17.0 / 5.0 Nm |
| Drill spindle connecting thread | 5/8" – 16 UN |
| Chuck capacity, min./max. | 3 – 16 mm |
| Impact rate at no-load speed | 0 – 12,750 / 30,600 bpm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 82 / 82 mm |
| Drilling diameter in wood | 50 / 32 mm |
| Drilling diameter in steel | 20 / 14 mm |
| Drilling diameter in masonry | 162 / 82 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 23 m/s² |
| Uncertainty K | 3 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 0 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
Powerful in every application – even when diamond dry drilling
- Very high torque for power-demanding applications
- Bosch high-performance motor (1500 W) with high overload capacity for the toughest applications
- Optimised speed for fast work progress when non-impact drilling with diamond core cutters up to 162 mm
Functions
What’s Included in this Package

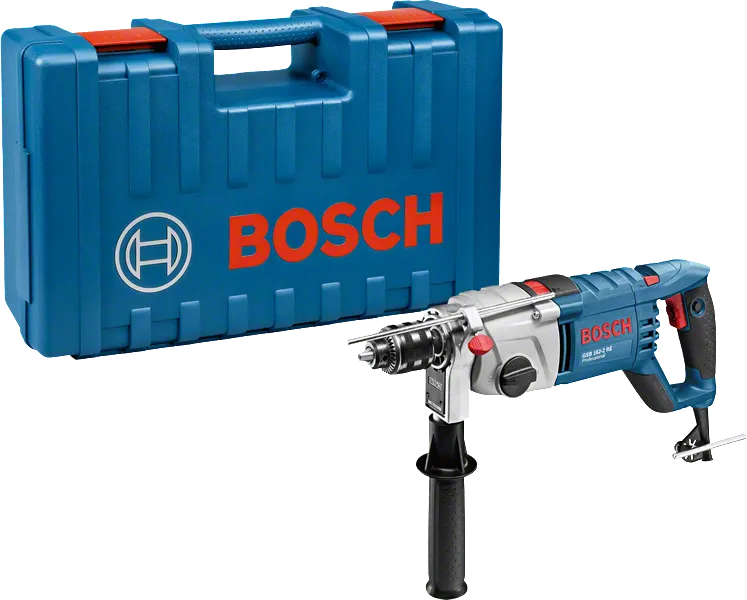

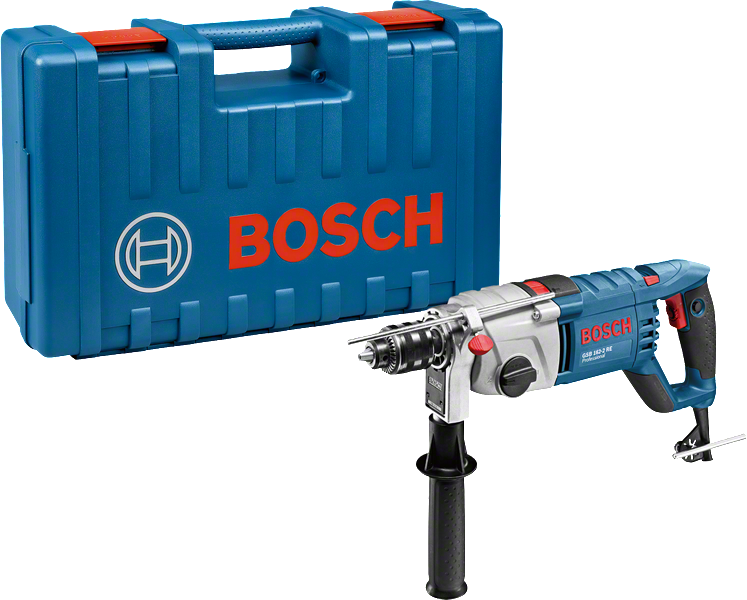

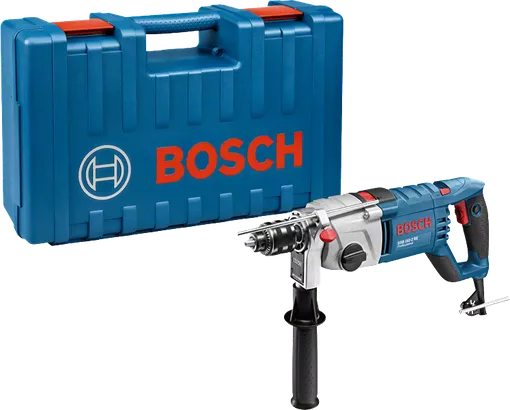

in carrying case with auxiliary handle
Order number:
0 601 18B 000
- Carrying case
- Auxiliary handle 2 608 025 205
- Depth stop (spare part number 2 600 460 045)
- Keyed chuck 16 mm 1 608 571 057
