Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,100 W |
| Weight | 2.9 kg |
| No-load speed | 0 – 900 / 3,000 rpm |
| Power output | 630 W |
| Rated speed | 580 / 1,900 rpm |
| Rated torque | 9.6 / 3.2 Nm |
| Chuck capacity, min./max. | 1.5 – 13 mm |
| Tool dimensions (width) | 90 mm |
| Tool dimensions (length) | 335 mm |
| Tool dimensions (height) | 220 mm |
| Impact rate at no-load speed | 0 – 15,300 / 51,000 bpm |
| Max. torque | 40.0 / 14.5 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 22 / 13 mm |
| Drilling diameter in wood* | 40 / 25 mm |
| Drilling diameter in steel | 16 / 8 mm |
| Drilling diameter in masonry* | 24 / 16 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 5.6 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 14.6 m/s² |
| Uncertainty K | 1.8 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
Advantages
The powerful tool for toughest applications - now with the intelligent KickBack Control.
- Heavy-duty applications with large diameters due to the 1,100 W Bosch high-performance motor and high torque
Functions

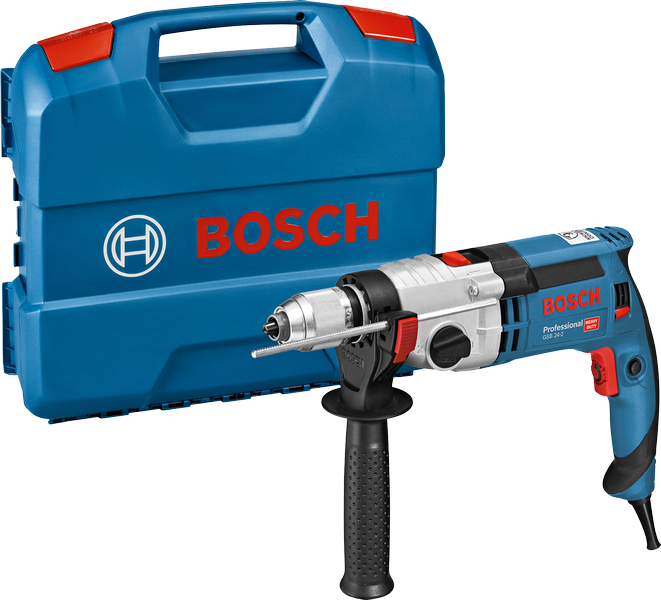

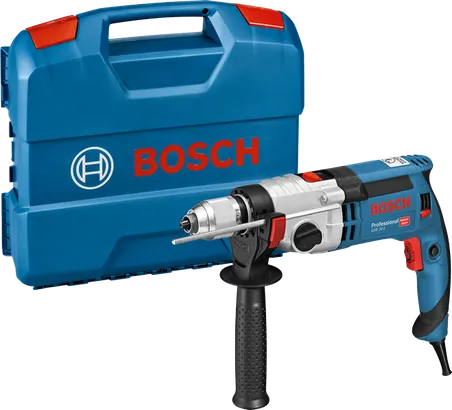

What’s Included in this Package
with accessory set
Order number:
0 601 19C 801
- Keyless chuck 13 mm 2 608 572 150
- Auxiliary handle 2 602 025 193
- Depth stop 210 mm 1 613 001 010
- L-Case 1 600 A00 M7X
