Technical data
| Additional data | |
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 1.6 mm |
| No-load stroke rate | 5,200 spm |
| Material that can be processed | Steel up to 400 N/mm² at 1.6 mm |
| Smallest radius | 35 mm |
| Stroke rate under load | 4,000 spm |
| Weight | 1.7 kg |

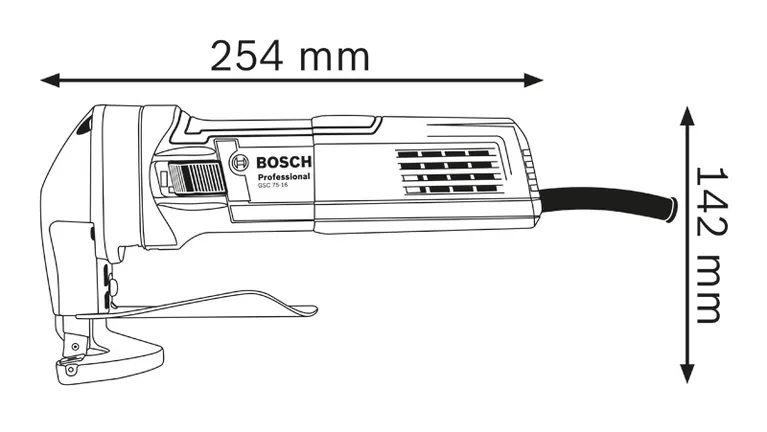

| Tool dimensions (length) | 254 mm |
| Tool dimensions (height) | 142 mm |
| Cutting capacity in steel (600 N/mm²), max. | 1.2 mm |
| Cutting capacity in steel (800 N/mm²), max. | 0.7 mm |
| Cutting capacity in aluminium (200 N/mm²), max. | 2.2 mm |
| Electric specifications | |
|---|---|
| Rated input power | 750 W |
| Power output | 400 W |
| Total vibration values (Cutting sheet metal) | |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
Powerful and handy for fast and comfortable cutting
- Optimal tool guidance with a small grip circumference
- High cutting speed with low exertion of force
- Excellent manoeuvrability in curves
Functions
What’s Included in this Package
with hex key
Order number:
0 601 500 500
- Hex key WAF 3 (spare part number 1 907 950 004)
- 1 x upper and lower blade for metal shear 2 608 635 243
