Thermo cameras & detectors

GTC 400 C Professional

Thermo Camera

GTC 400 C
GTC 400 C

Immediate visualisation of temperature differences with smart documentation

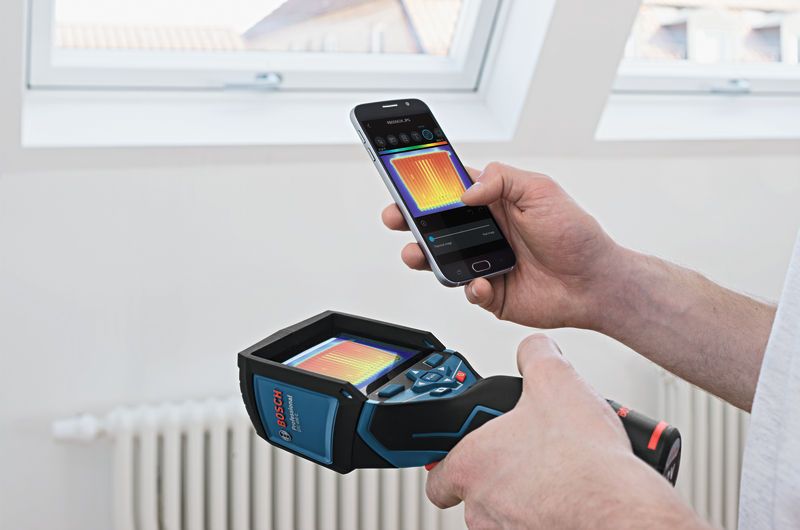

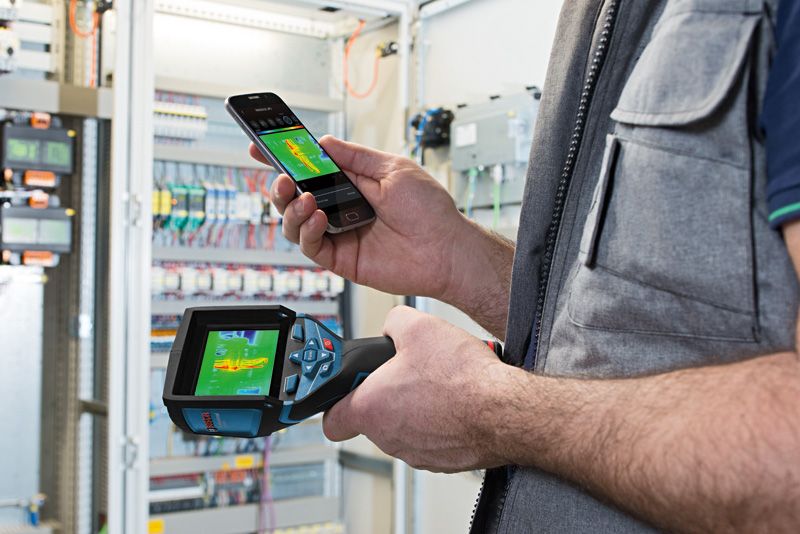

  • Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions & key features

IR Sensor 160 x 120 pixel
Dual power source
IP53 dust protected and protected against water spray
GTC transfer software
Visual camera

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap
Show variant
188,500.00 KES
Recommended retail price including VAT
Find a local dealer

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap 0 601 083 171
188,500.00 KES
Recommended retail price including VAT

GTC 400 C Professional

Your Selection

GTC 400 C
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap

Order number: 0 601 083 171

188,500.00 KES
Recommended retail price including VAT
Find a local dealer

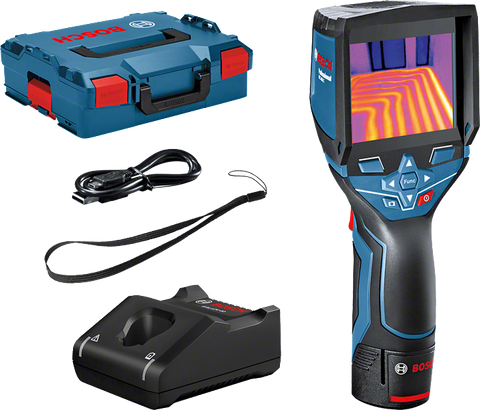

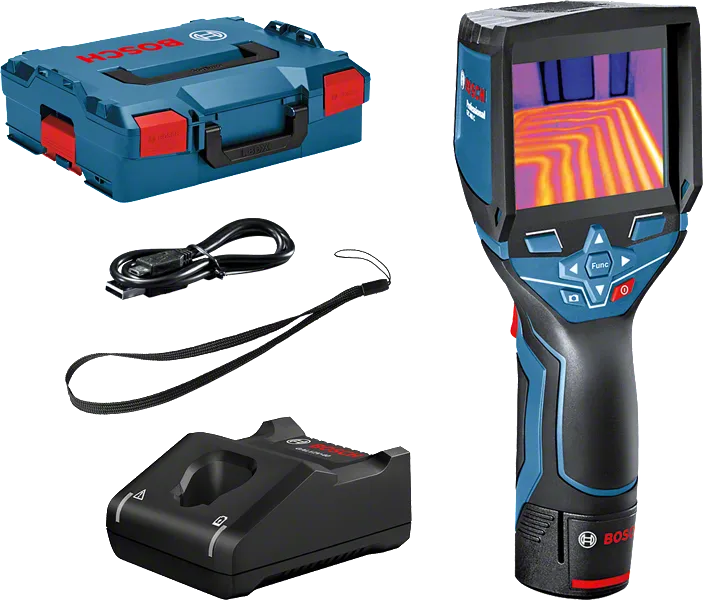

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Micro USB cable
    Order number: 2 609 120 670
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R4
  • Hand strap
  • L-BOXX inlay for tool
  • L-BOXX inlay accessories
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X

Technical data

Additional data

Measurement range -10 °C to +400 °C
Measuring accuracy of IR ± 3.0 °Cᵇ
Battery voltage 12.0 V
Thermal sensitivity (NETD) <50 mK
Resolution 0.1 °C
Size of IR sensor 160x120 px
Number of measuring points 19,200
Field of view (FOV) 53x43 °
Power supply and runtime 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V
Frame buffer (number of images) 500
Memory type Internal memory
File format of image .jpg
Data transfer MicroUSB, Wi-Fi
Dust and splash protection IP 53
Weight 0.54 kg
Size of display 3,5"
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Focus distance, minimum 0.3 m
Measuring application Thermal image

GTC 400 C Professional: Further information

Product Highlights

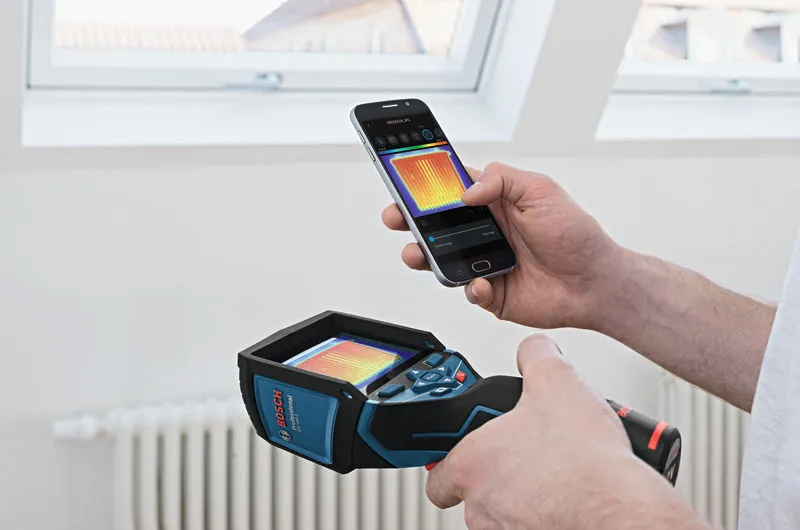

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

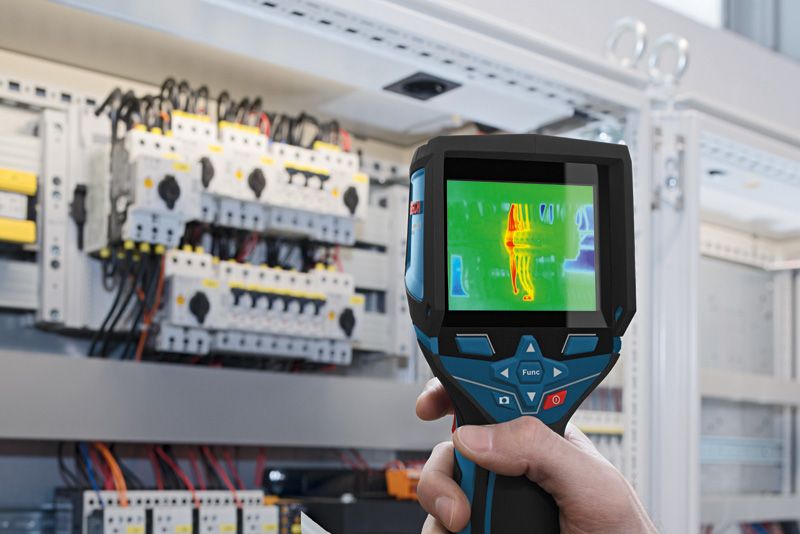

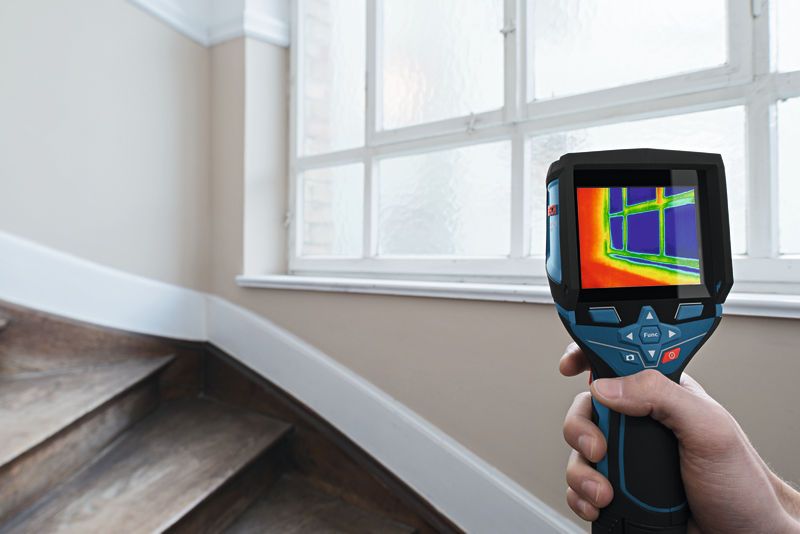

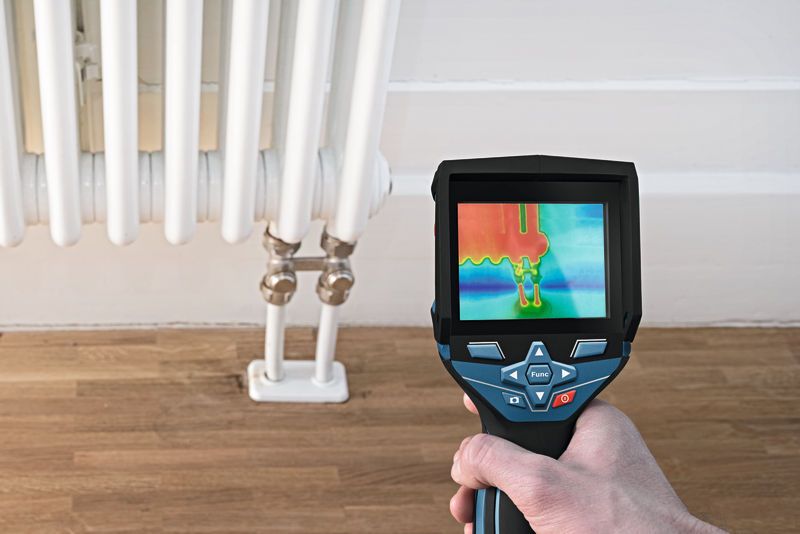

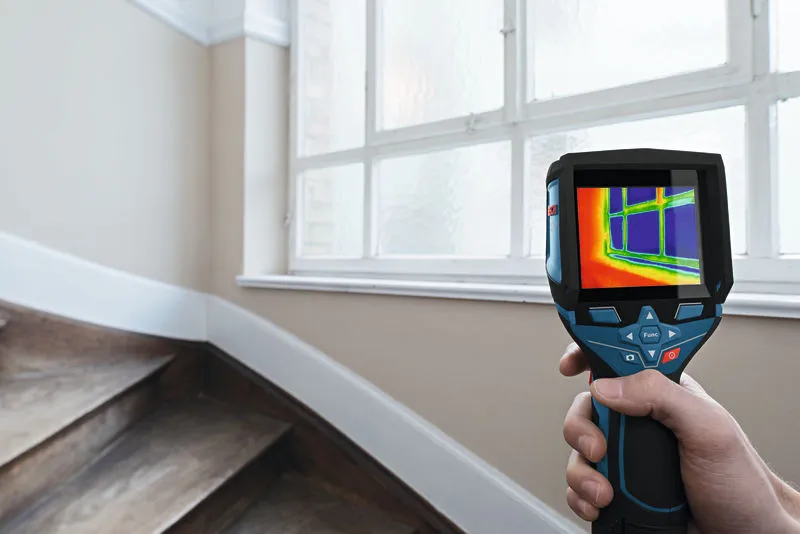

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
