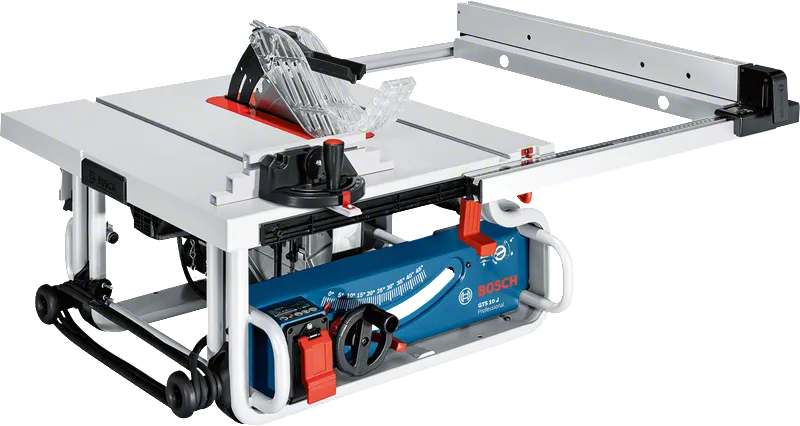

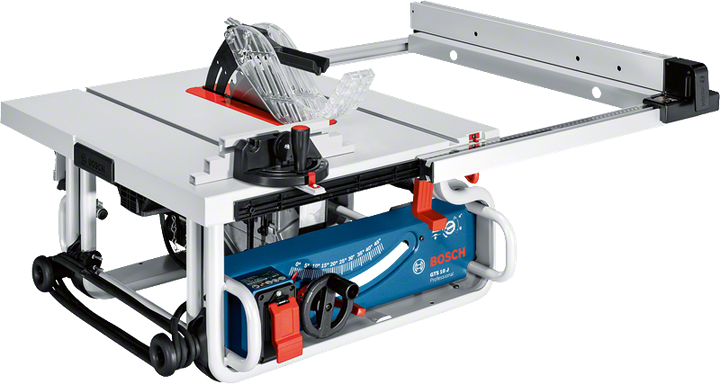

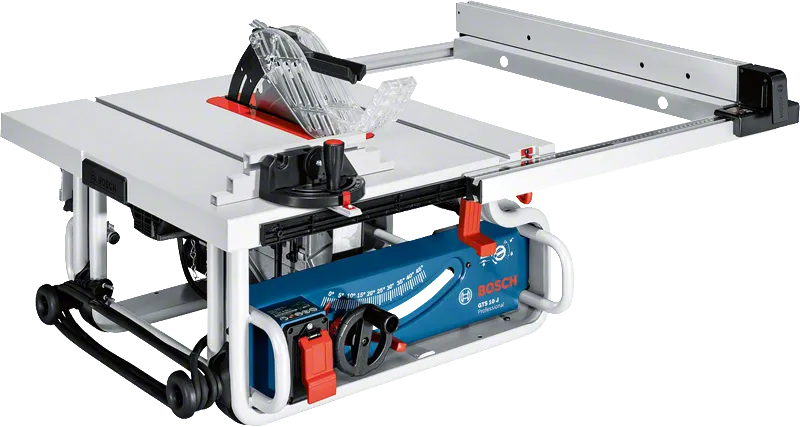

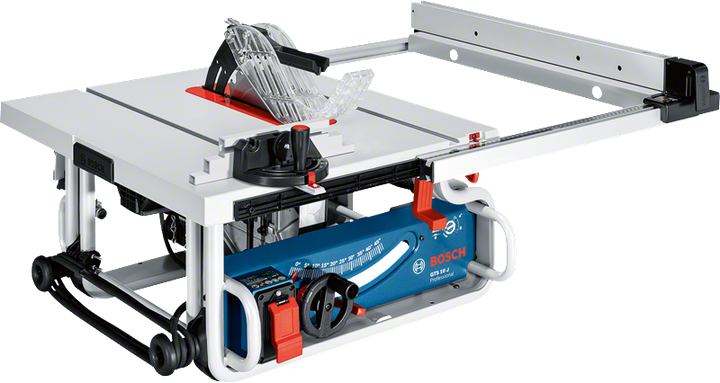

Table Saw GTS 10 J Professional

The powerful tool with large cutting capacity

Technical data
Additional data

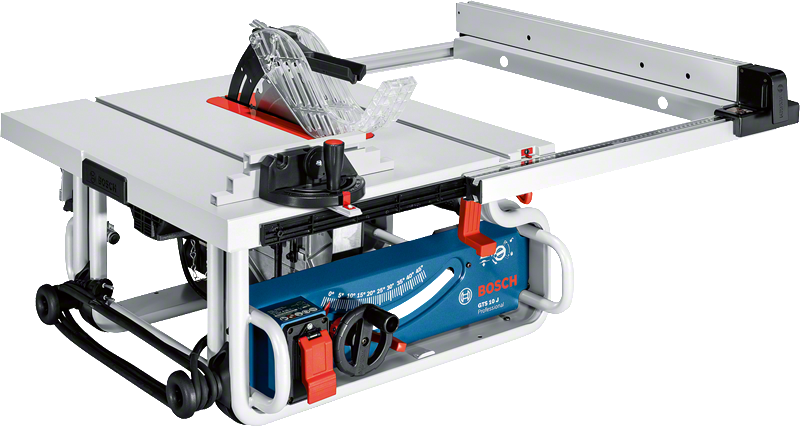

Incline setting 47 ° L / 2 ° R
Saw blade diameter 254   mm

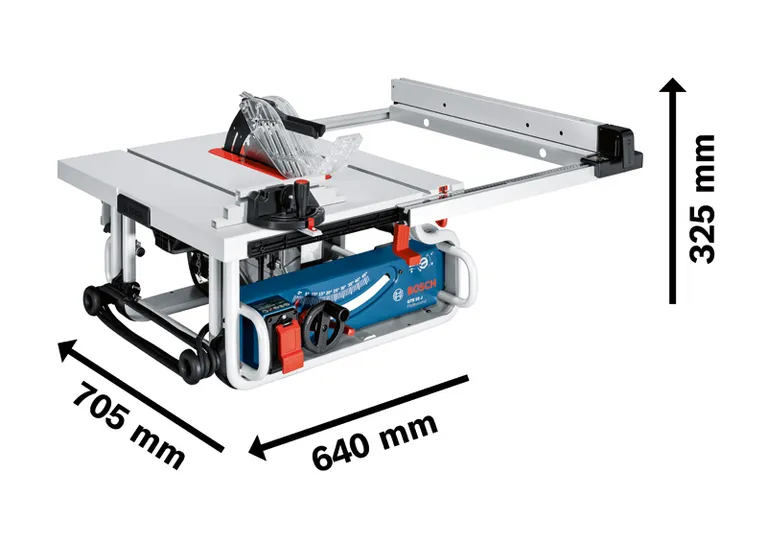

Table size 642 x 634   mm
Rated input power 1,800   W
No-load speed 3,650   rpm
Cutting height 90° 79   mm
Saw blade bore diameter 30   mm
Weight 27   kg
Max. cutting capacity on the right 635   mm
Max. cutting capacity on the left 255   mm

Advantages

The powerful tool with large cutting capacity

  • Extremely compact and powerful
  • Powerful 1,800 W motor with soft start and overload protection for fast working progress

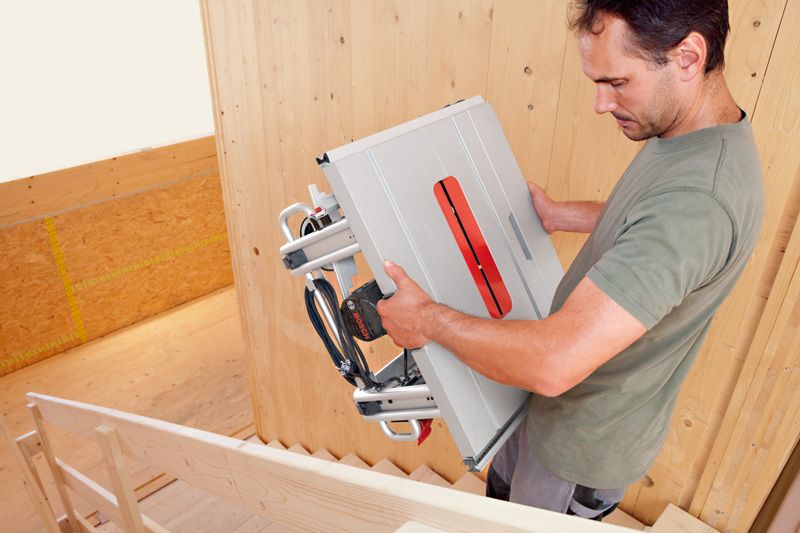

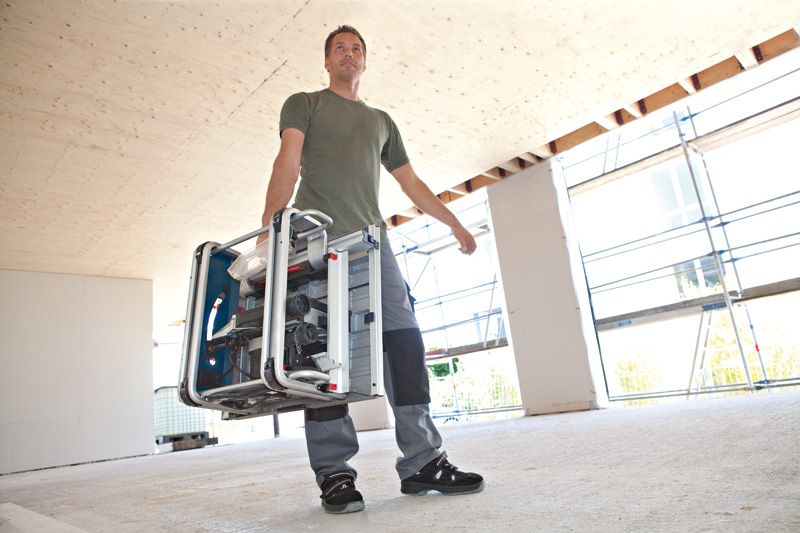

  • Optimal for transport due to compact design and different carrying handles

Functions

Easy disc / tool change thanks to spindle lock
Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
What’s Included in this Package
with guide rail system accessory, Accessory
with guide rail system accessory, Accessory
Order number: 0 601 B30 570
  • Angle guide 2 610 015 507
  • Dust extraction adapter 2 610 015 509
  • Parallel guide 2 610 016 853
  • Push stick 2 610 015 022
  • Voltage 240 V
  • 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24 2 608 838 412

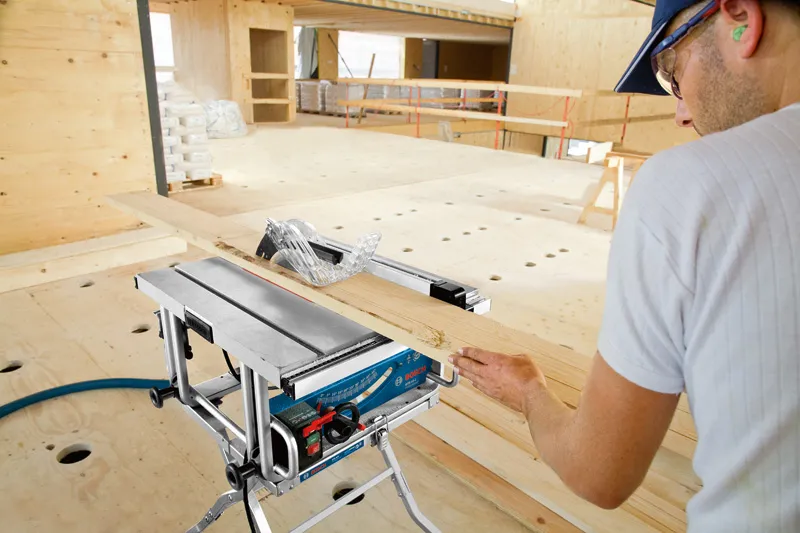

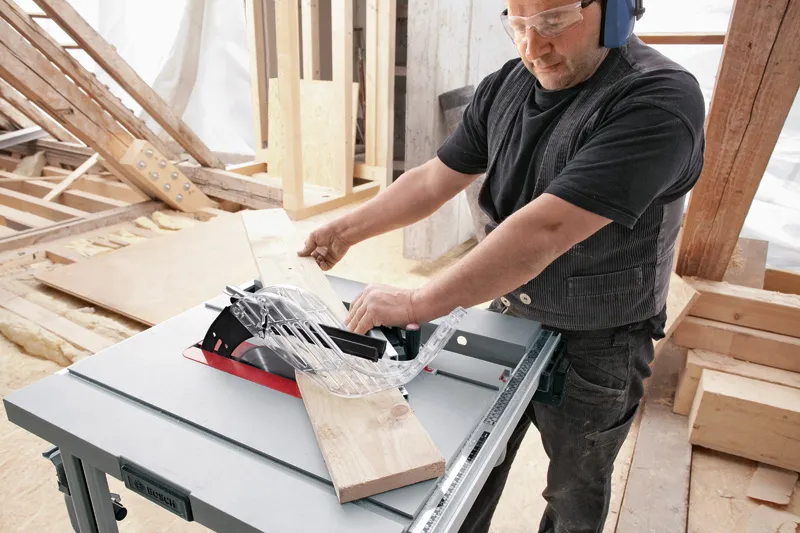

The GTS 10 J in action!
