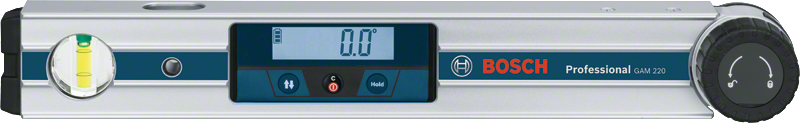

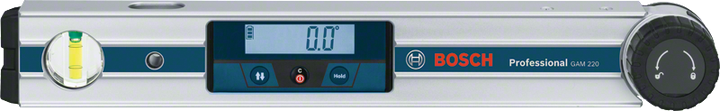

Angle Measurer GAM 220 Professional

Precise and easy angle measurement

72.00 KWD Recommended retail price excluding VAT.

Technical data
Additional data
Measurement range* 0 – 220°
Arm length* 40   cm
Measurement accuracy, angles* ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80   h
Automatic deactivation, approx. 30   min
Weight, approx. 1.3   kg

* Highlighted Data


Precise and easy angle measurement

  • Fast and precise calculation of angles
  • Angles can be transferred precisely onto workpieces by means of a mechanical locking screw


Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°
Measuring range of angles 0°–220° Angle measuring range 0°-220°
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Hold Hold function for intermediate storage of measured values
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54
Flip Display Rotating readout on display
What’s Included in this Package
with 4 x battery (AA)
with 4 x battery (AA)
Order number: 0 601 076 500
  • 4 x 1.5 V LR6 battery (AA)
72.00 KWD Recommended retail price excluding VAT.
The GAM 220 in action!
