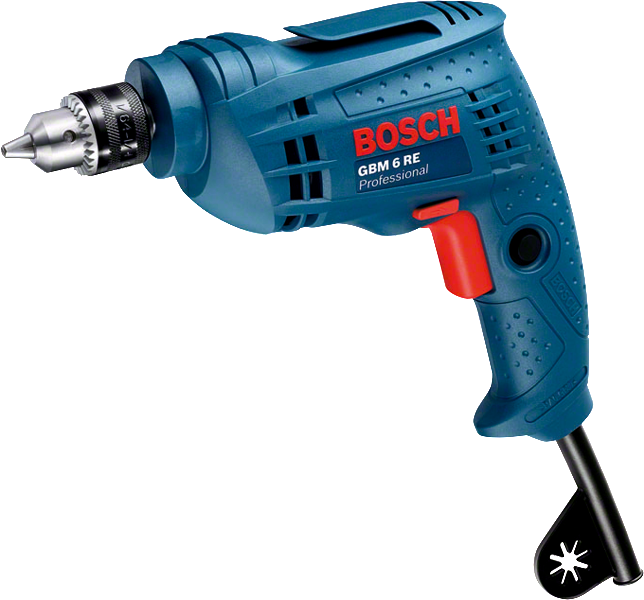

Drill GBM 6 RE Professional
The fast and precise tool
20.00 KWD
Recommended retail price excluding VAT.
Technical data
| Additional data | |
|---|---|
| Rated input power | 350 W |
| Weight | 1.2 kg |

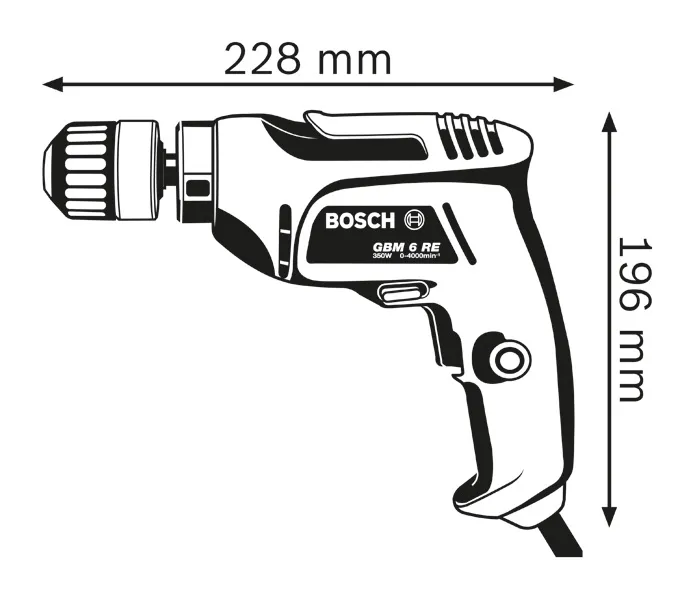

| Tool dimensions (width) | 68 mm |
| Tool dimensions (length) | 224 mm |
| Tool dimensions (height) | 183 mm |
| Rated speed | 3,116 rpm |
| Rated torque | 12.3 Nm |
| No-load speed, 1st gear | 0 – 4,000 rpm |
| Power output | 136 W |
| Drilling range | |
|---|---|
| Drilling diameter in aluminium | 8 mm |
| Drilling diameter in wood | 15 mm |
| Drilling diameter in steel | 6.5 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 6.9 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 4 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
The fast and precise tool
- Very high speed (no-load speed: 4,000 rpm) for small drilling diameters
- Drill spindle fixed in bearing for high precision
- Compact design and low weight for easier handling when drilling rows of holes
Functions
What’s Included in this Package
with Keyed chuck 1.5 - 10 mm (spare part number 2 609 110 796)
Order number:
0 601 472 6P0
- Keyed chuck 1.5 - 10 mm (spare part number 2 609 110 796)
20.00 KWD
Recommended retail price excluding VAT.
