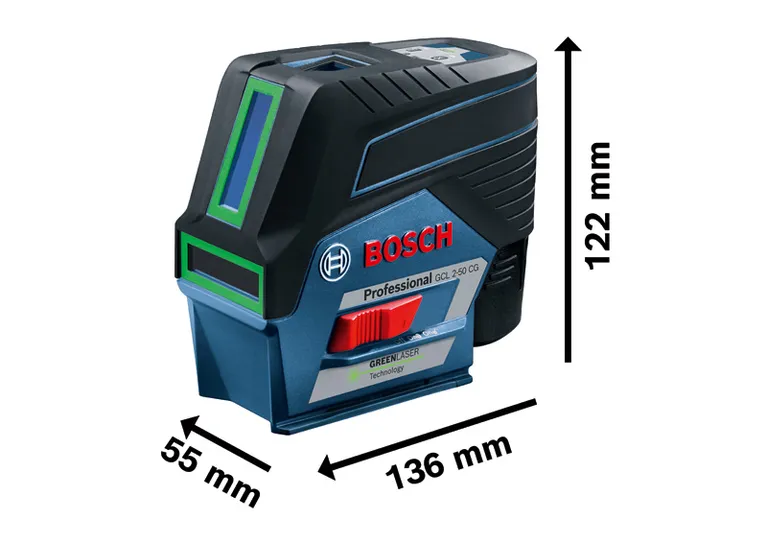

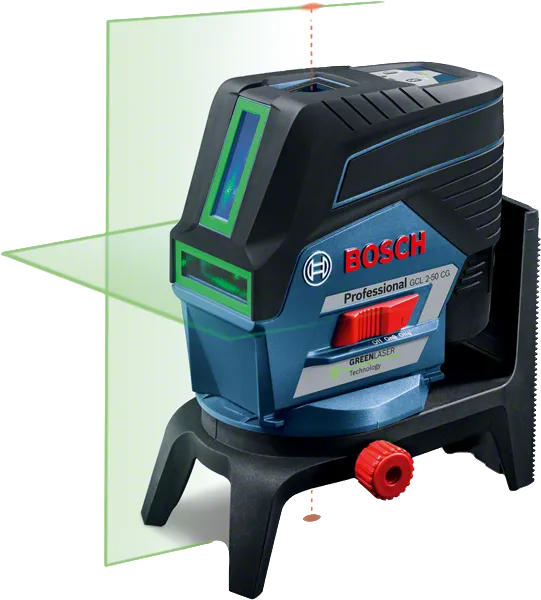

Combi Laser GCL 2-50 CG Professional

Supreme visibility connected with smart functions

152.00 KWD Recommended retail price excluding VAT.

Technical data
Additional data
Working range with receiver, value 50   m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Projection 2 lines / 2 points
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Working range with receiver 50 m
Laser diode 500 – 540 nm, < 10 mW, 630 – 650 nm, < 1mW
Laser class 2
Working range 20   m
Working range of laser points, max. 10 m (top), 10 m (bottom)
Self-levelling range ± 4°
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Operating time (max.) 10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation, 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation, 15 h (Li-Ion) and 12 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Tripod thread 1/4"
Weight, approx. 0.6   kg
Colour of laser line green
Color of plumb points red
Plumb point accuracy ± 0.7 mm/m* (*plus use-dependent deviation)
Compatible laser receivers LR 7
Working range, value 20   m

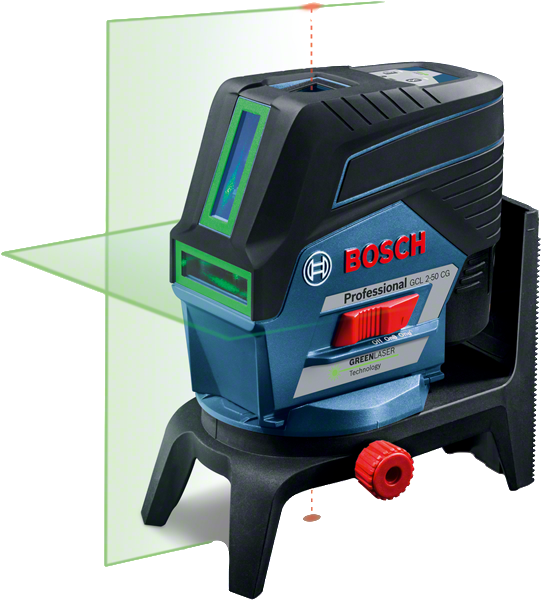

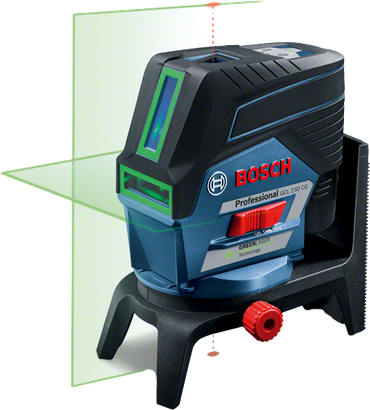

Supreme visibility connected with smart functions

  • Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility
  • Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
  • Dual Power Source allows for the use of 12 V Li-ion battery or standard alkaline batteries

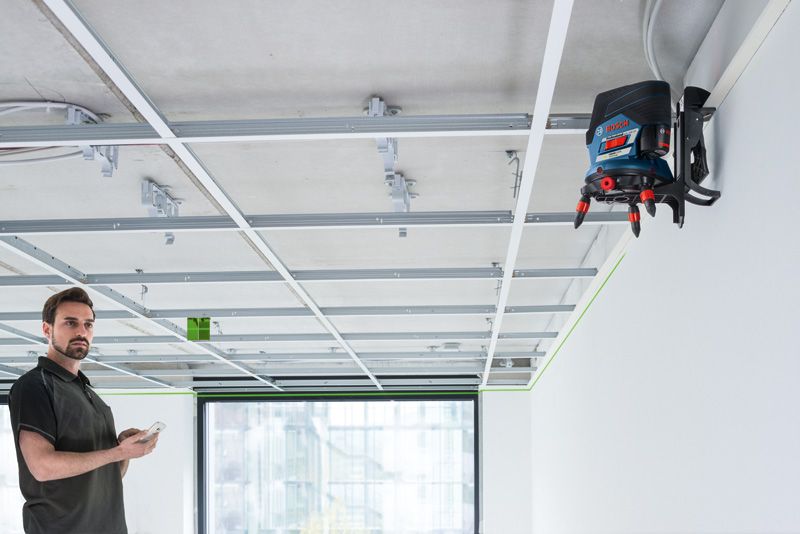

Simply.Connected. - Simply. Efficient. thanks to smartphone connection and Bosch App
Dual power source
Working with receiver for higher working range
Easy line positioning around the plumb dot
Laser class 2 Laser class for measuring tools.
 All Bosch Professional 10.8V tools, batteries & chargers are 100% compatible with all Bosch Professional 12V tools, batteries & chargers
Easy line positioning around the plumb dot
Slide mechanism

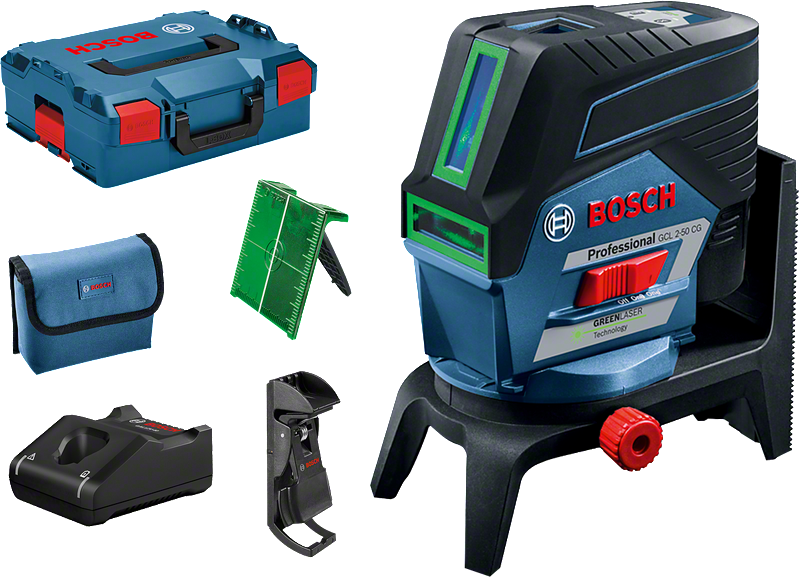

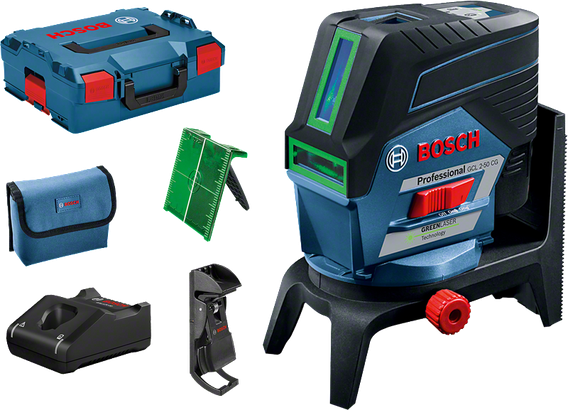

What’s Included in this Package
with Accessory, clamp
with Accessory, clamp
Order number: 0 601 066 H70
  • Ceiling clamp
  • Laser target plate
  • L-BOXX 136 1 600 A01 2G0
  • Protective Bag
  • Rotating mount RM 2 Professional 0 601 092 700
  • 1 x battery GBA 12V 2.0Ah 1 600 Z00 02X
  • Quick charger GAL 12V-40 Professional 1 600 A01 9R4
152.00 KWD Recommended retail price excluding VAT.

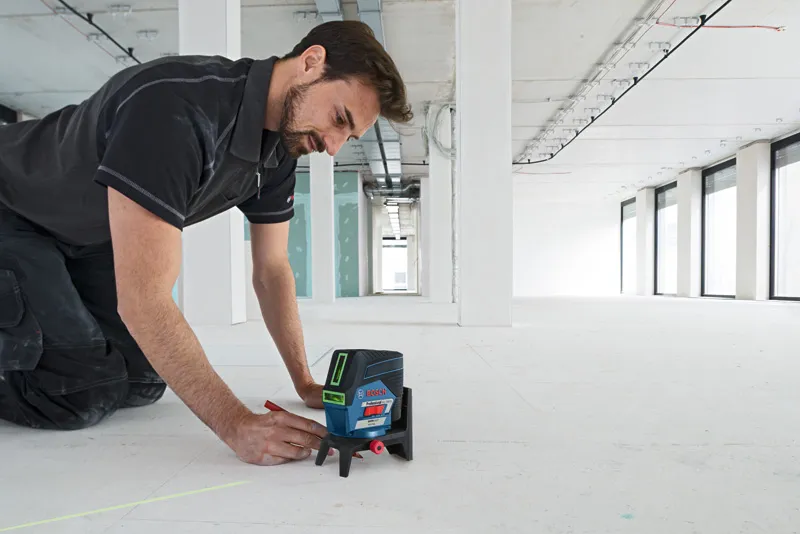

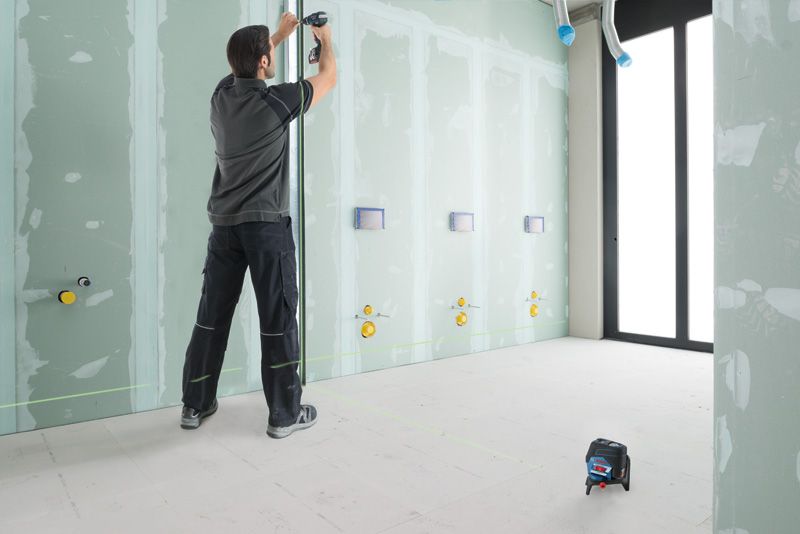

The GCL 2-50 CG in action!
