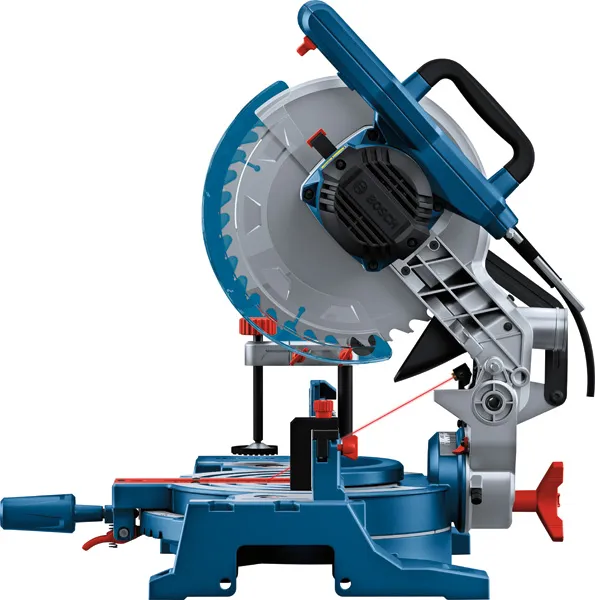

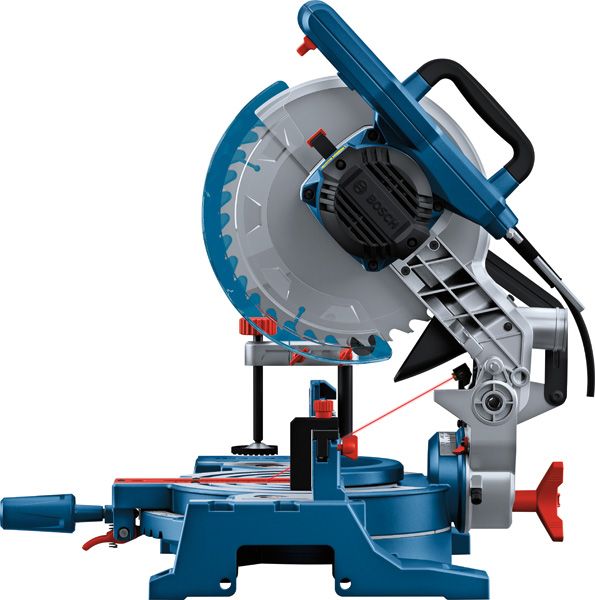

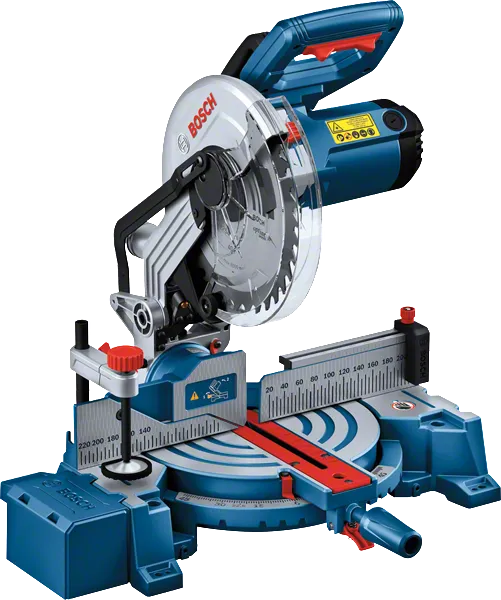

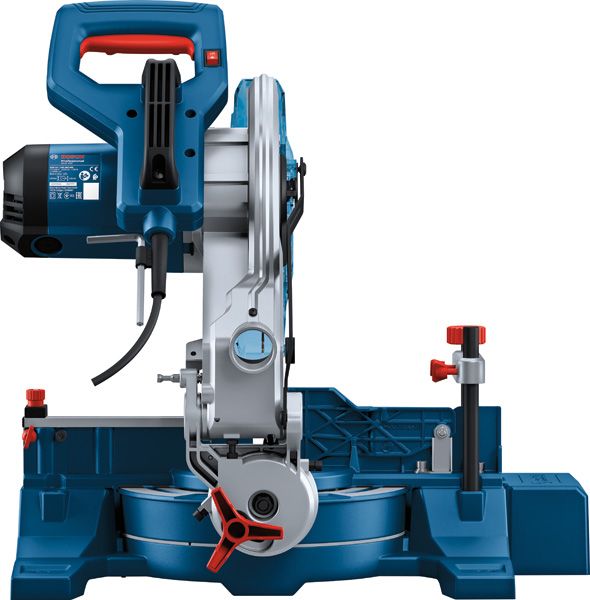

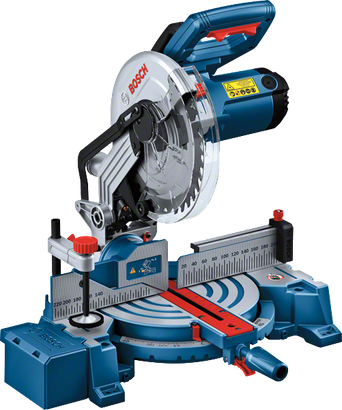

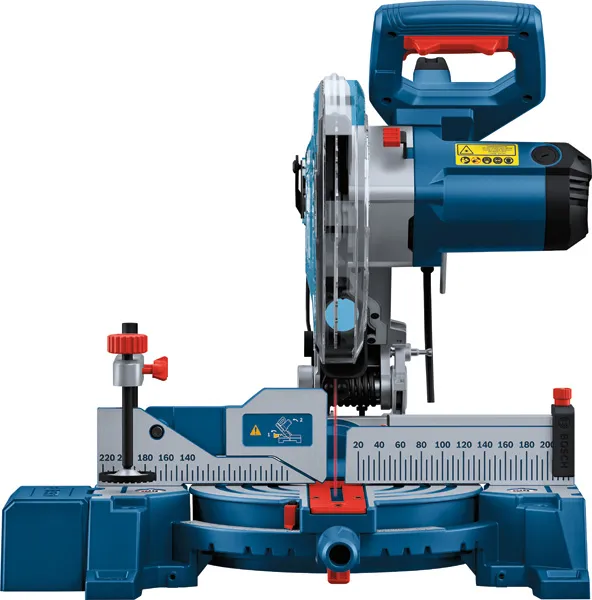

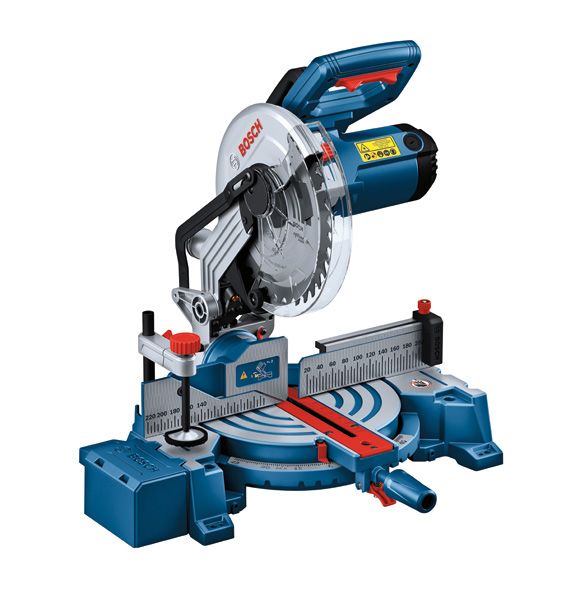

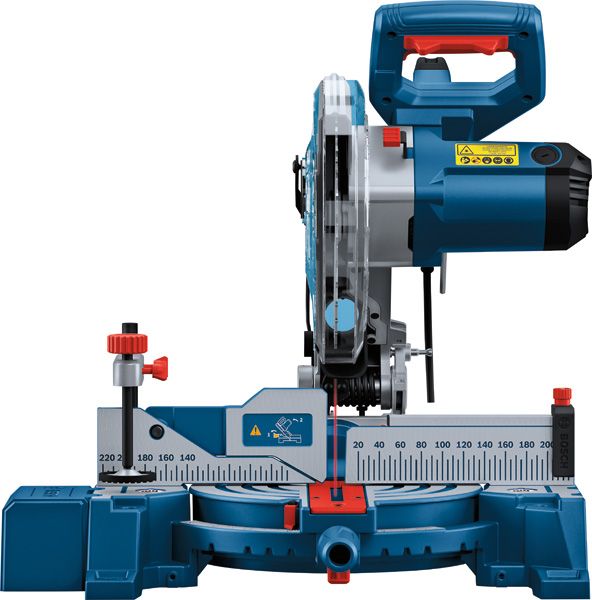

GCM 254 Professional
Mitre Saw
Make accurate cutting easier and more consistent with the tough professional miter saw.
- Accuracy for consistent cuts from the highly visible direct laser guide

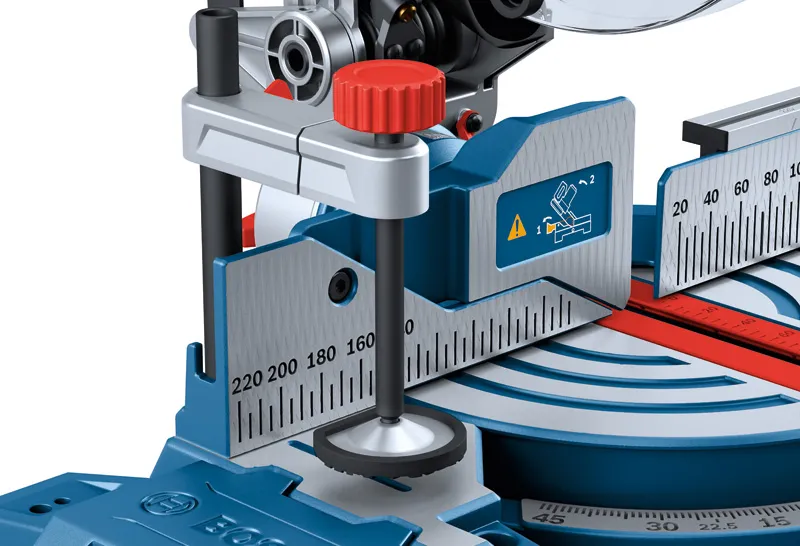

- More stable cutting thanks to the detachable box extension

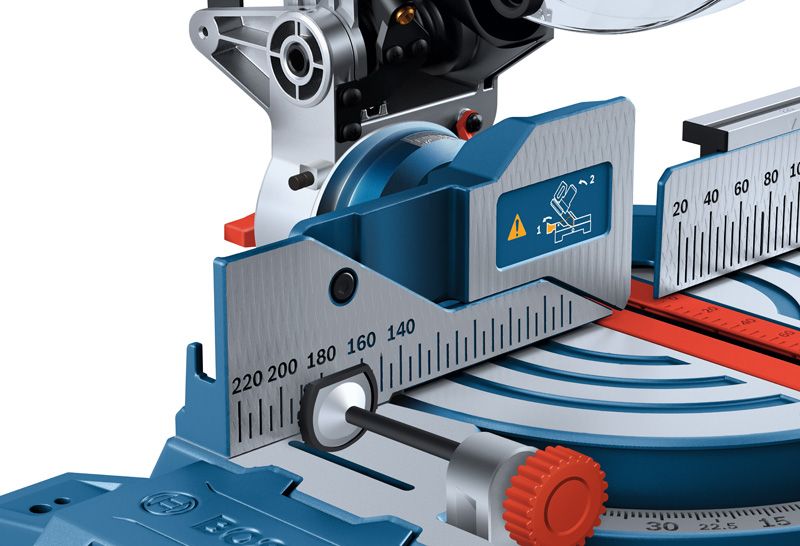

- Length gauge ensures easier repetitive cuts
Functions & key features
Select a variant
Your Selection
Order number: 0 601 B52 000
Included in all variants
-

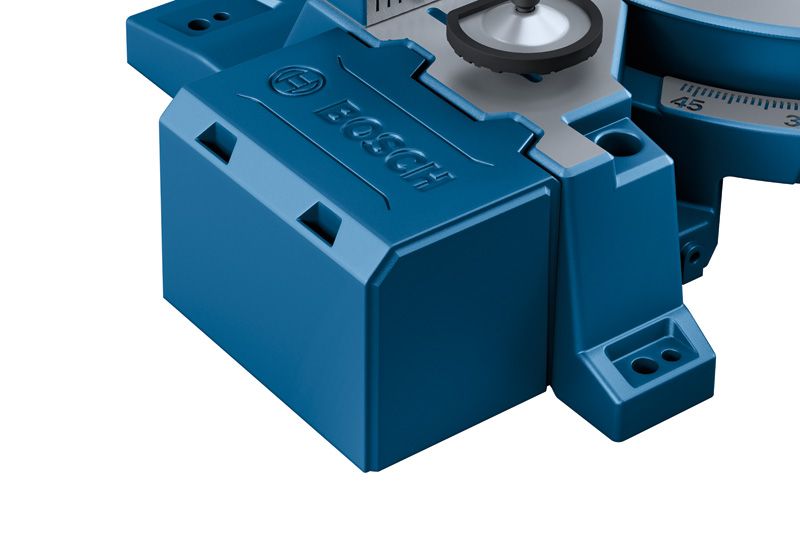

Supporting boxOrder number: 1 619 PB9 050
-
Dust bagOrder number: 1 619 PB6 246
Additional in this variant
-
1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 40Order number: 2 608 640 443
Your Selection
Order number: 0 601 B52 0L0
Included in all variants
-
Supporting boxOrder number: 1 619 PB9 050
-
Dust bagOrder number: 1 619 PB6 246
Additional in this variant
-
1 x circular saw blade, Expert for Wood, 254 x 2.5/1.8 x 25.4 mm, 40Order number: 2 608 643 001
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 254 mm |
| Mitre setting | 47 ° L / 52 ° R |
| Bevel setting | 45 ° L / 0 ° R |
| Saw blade bore diameter | 30 mm |
| Cutting capacity, 0° | 90 x 130 mm |
| Cutting capacity, 45° mitre | 90 x 91 mm |
| Cutting capacity, 45° bevel | 60 x 130 mm |

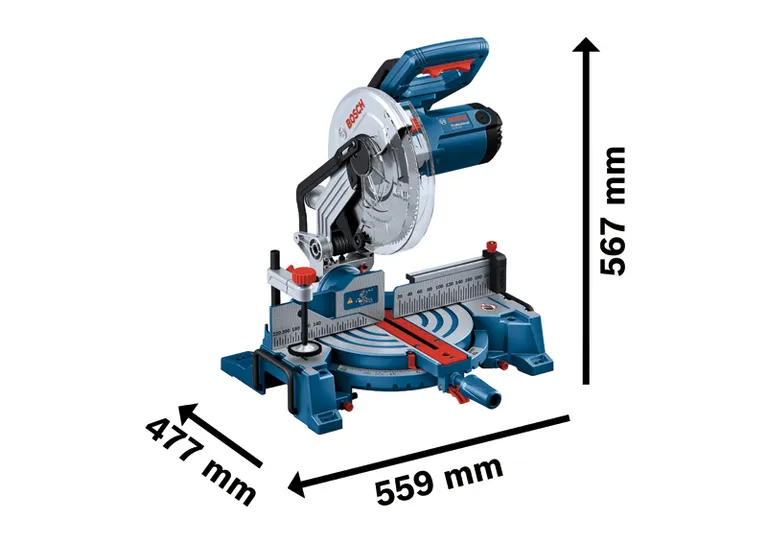

| Tool dimensions (width x length x height) | 477 x559 x567 mm |
| No-load speed | 5,000 rpm |
| Weight | 11.1 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.
GCM 254 Professional: Further information
Product Highlights
The GCM 254 Professional is designed for the ultimate in accuracy, ease of use and a long life. Precise and consistent cuts can be achieved with visible accuracy with the highly visible direct laser. Longer and larger material cuts can now be made with a higher level of stability and accuracy thanks to the detachable box extension and the same lengths cutting is supported by the length gauge.
Equipment & Application

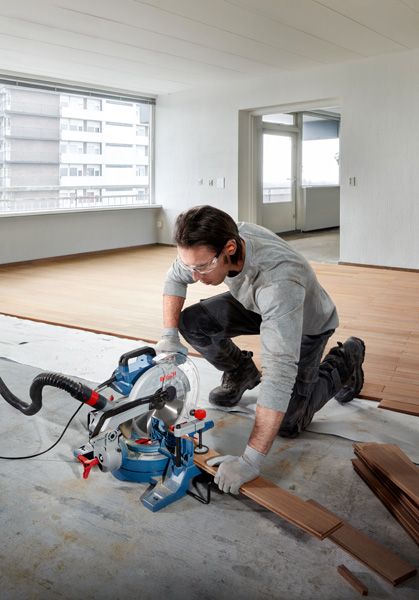

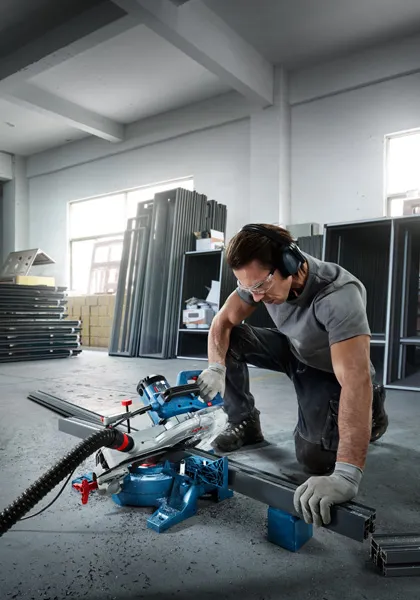

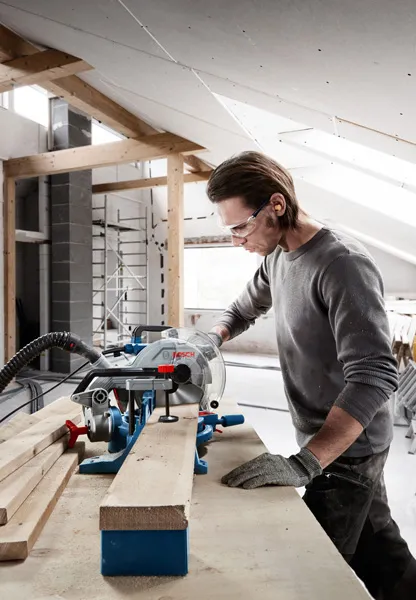

The GCM 254 miter saw is built for long-life with repetitive accurate cutting of wood and aluminum, and is ideal for carpenters, glaziers, roofers and other professional trades.
