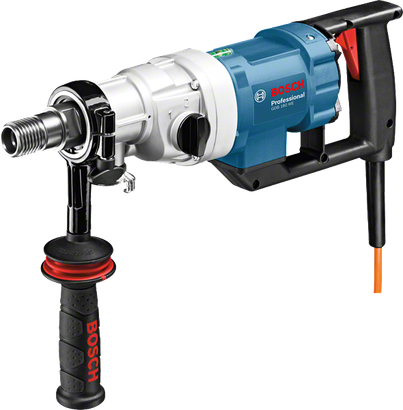

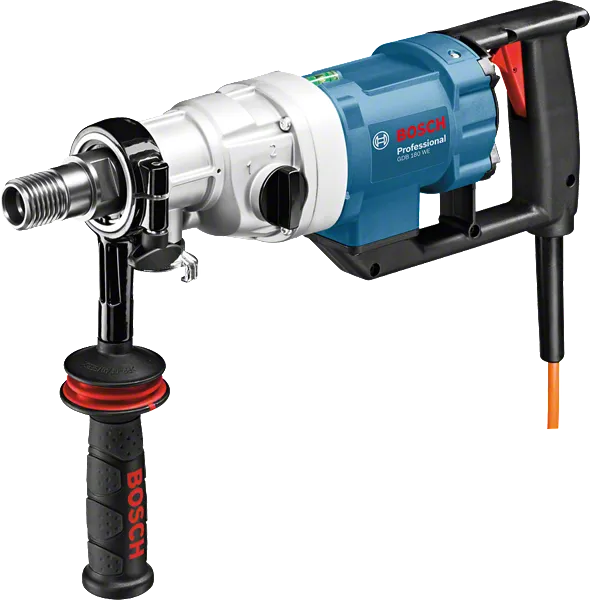

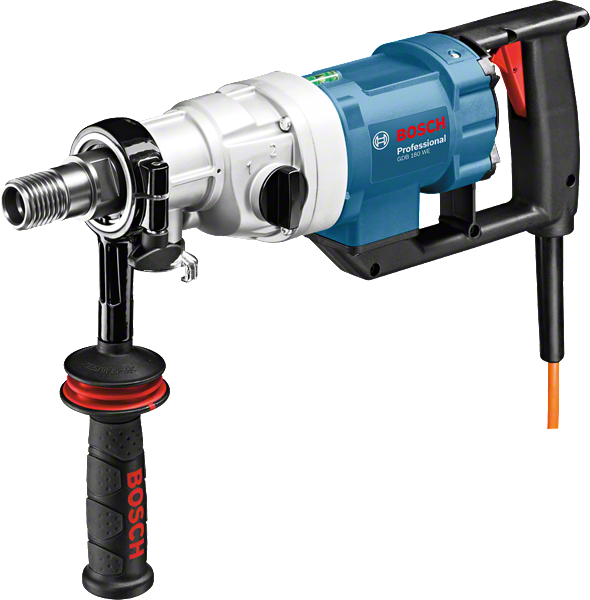

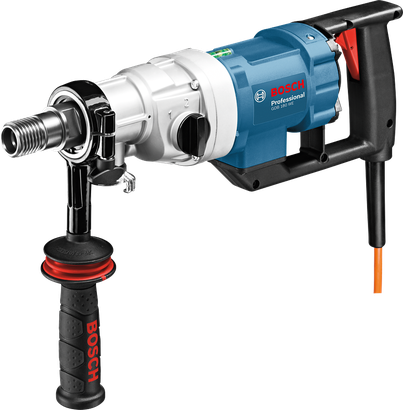

GDB 180 WE Professional
Diamond Drill
The compact powerhouse for drilling holes of up to 180 mm in concrete
- Powerful 2000 watt motor for breakthroughs in reinforced concrete up to 180 mm
- Long lifetime due to robust design and gearbox with oil-bath lubrication

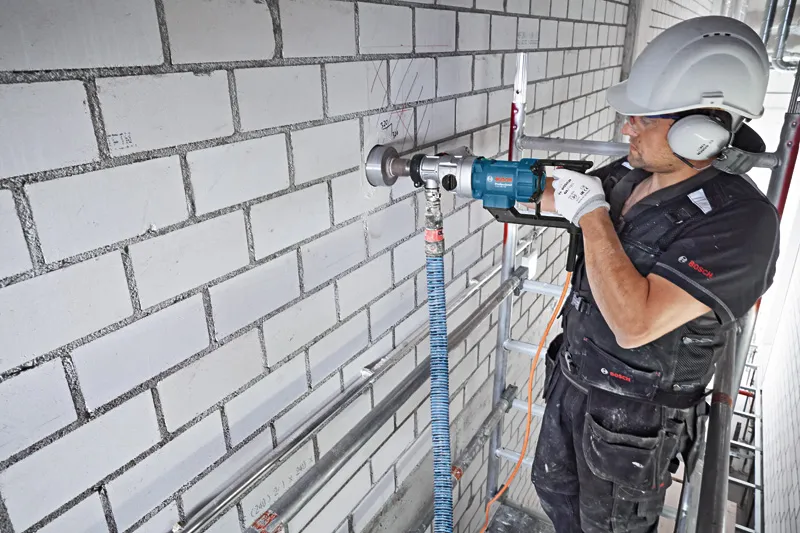

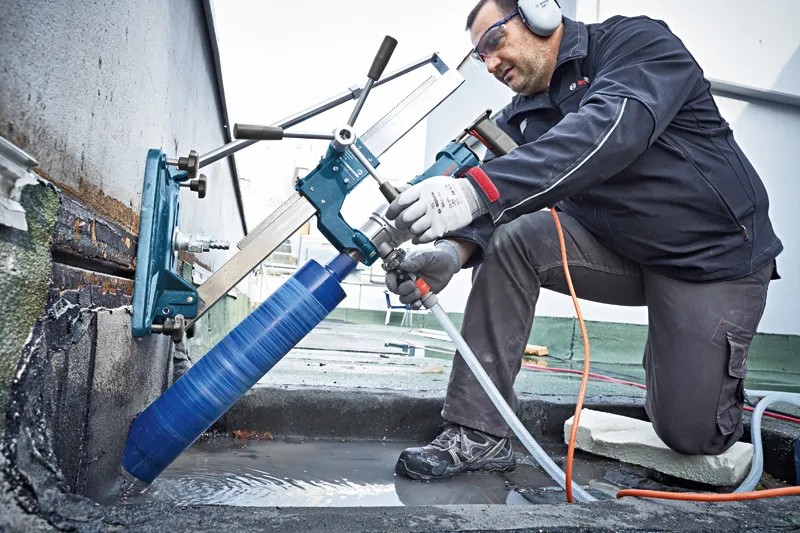

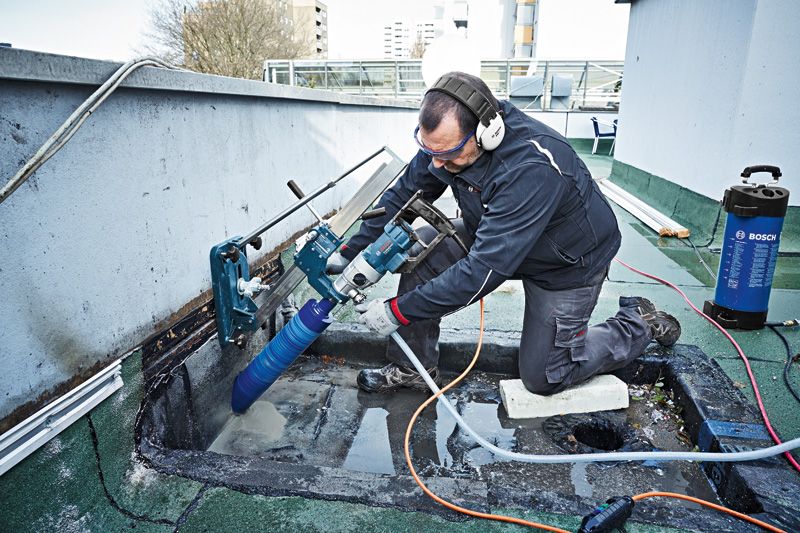

- Wet and dry application; both hand-held and stand-mounted
Functions & key features
in carrying case with dust extraction accessory
0 601 189 800
Select a variant
Your Selection
in carrying case with dust extraction accessory
Order number: 0 601 189 800
Find a local dealerIncluded in all variants
-
Dust extraction adapter
-
Ball valve
-

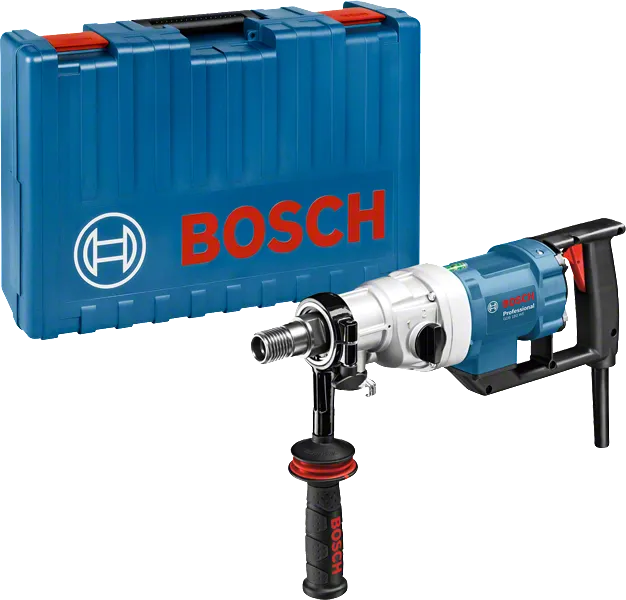

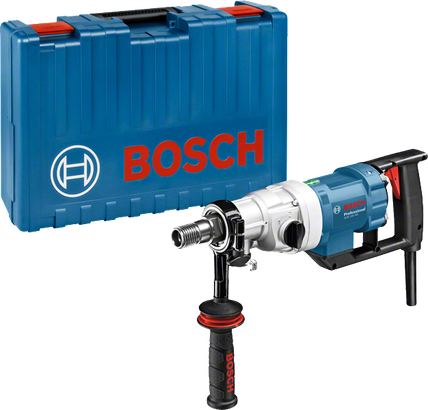

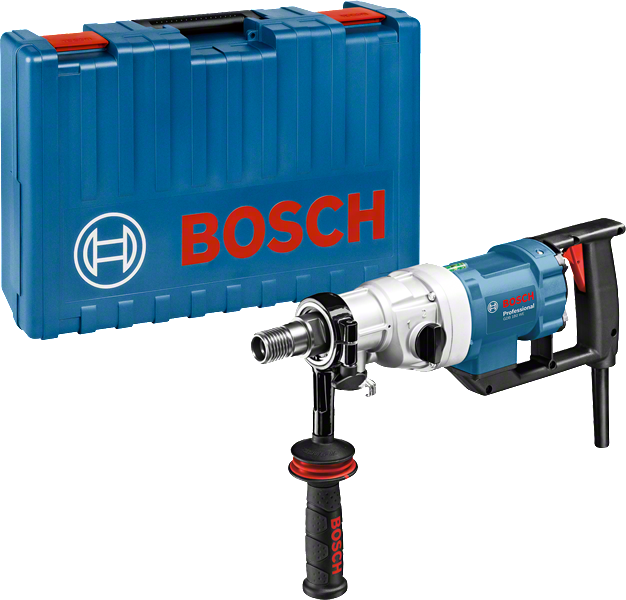

Carrying case
Your Selection
in carrying case with dust extraction accessory
Order number: 0 601 189 870
Find a local dealerIncluded in all variants
-
Dust extraction adapter
-
Ball valve
-
Carrying case
Additional in this variant
-
Open-ended spanner
Technical data
Additional data
Rated input power
2000 W
No-load speed
900 / 2,800 rpm
Tool holder
1 1/4" UNC
Voltage, electrical
230 V
Weight
5.2 kg
Drilling range
180 mm
Drill spindle connecting thread
1 1/4" UNC
Suitability
Wet drilling in concrete
