Angle measurers and inclinometers

GIM 60 L Professional

Digital Inclinometer

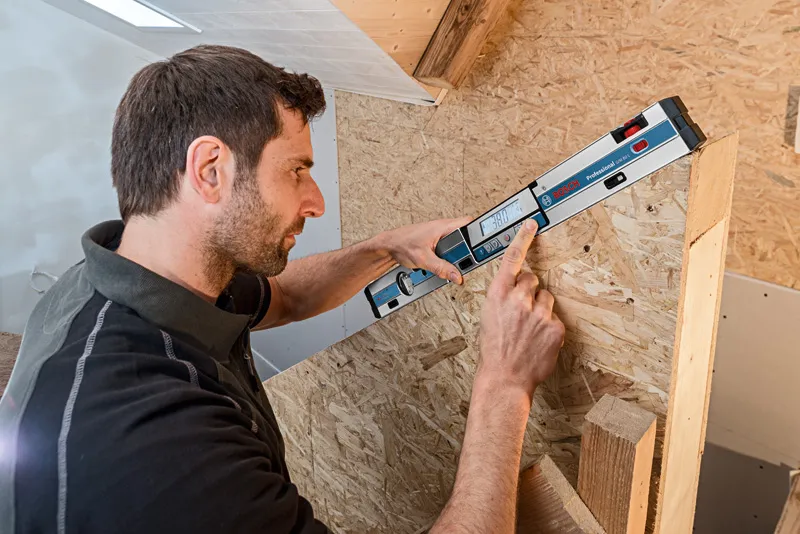

Laser-accurate incline transfer over longer distances

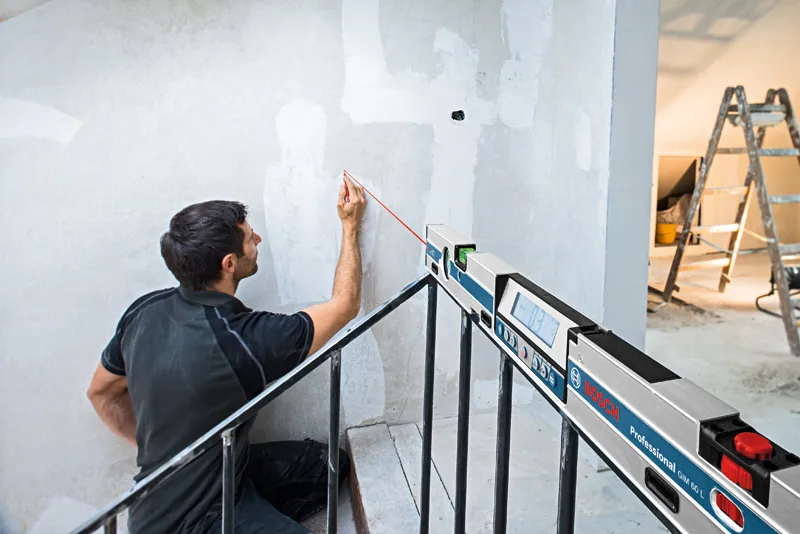

  • Integrated point laser for incline measurement up to a distance of 30 m

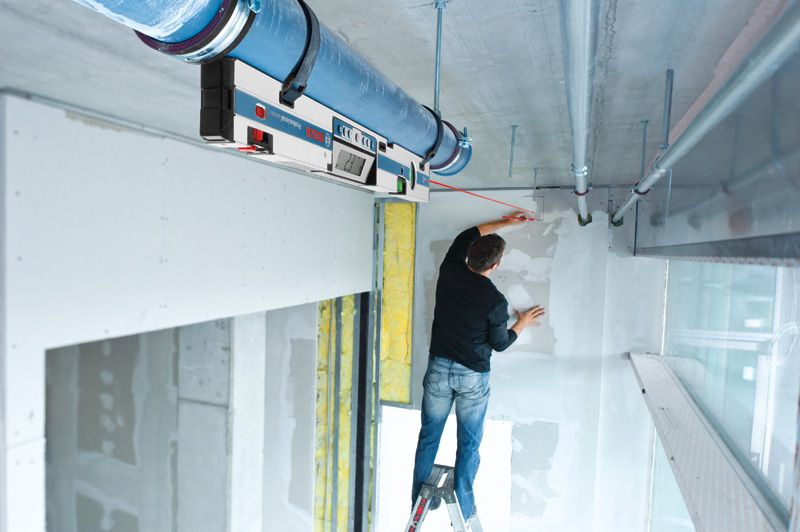

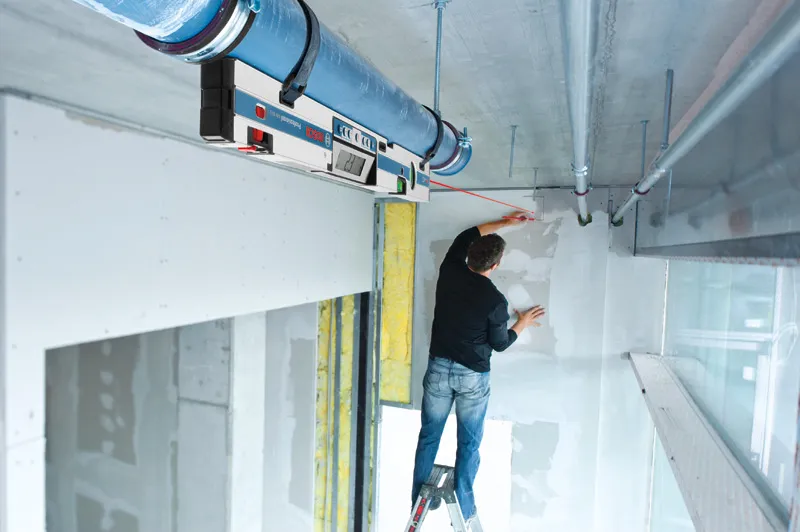

  • Strong magnets and two straps for securely fastening the instrument to workpieces
  • Incline mechanism for fine adjustment on uneven surfaces

Functions & key features

Magnets
IP54 dust and splash water protection
Hold and transfer measuring result
Laser class 2

Your Selection

  • with 4 x battery (AA), Protective Bag
Show variant
79.00 KWD
Recommended retail price excluding VAT
Find a local dealer

with 4 x battery (AA), Protective Bag 0 601 076 900
79.00 KWD
Recommended retail price excluding VAT

GIM 60 L Professional

Your Selection

GIM 60 L
with 4 x battery (AA), Protective Bag

Order number: 0 601 076 900

79.00 KWD
Recommended retail price excluding VAT
Find a local dealer

Included in this variant

  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

Technical data

Additional data

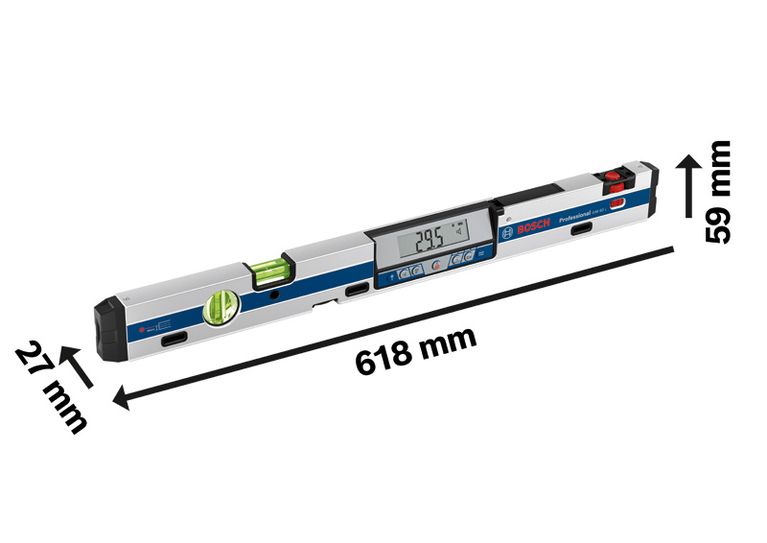

Length 60 cm
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.1°
Working range (laser) 30 m
Power supply, inclination measurement 1 x 9 V-6LR61 + 2 x 1.5 V LR03
Weight approx. 0.91 kg
Laser type 650 nm, < 1 mW
Laser range 30 m
Laser class 2
Levelling accuracy of laser ± 0,5 mm/m
Units of measurement °, %, mm/m
Tripod thread 1/4"

GIM 60 L

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
