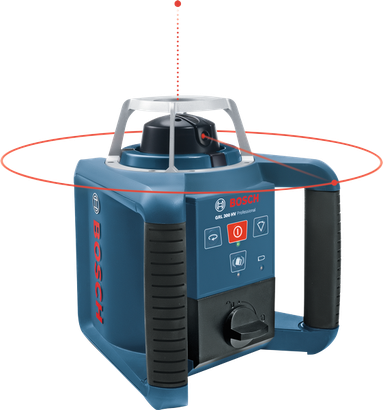

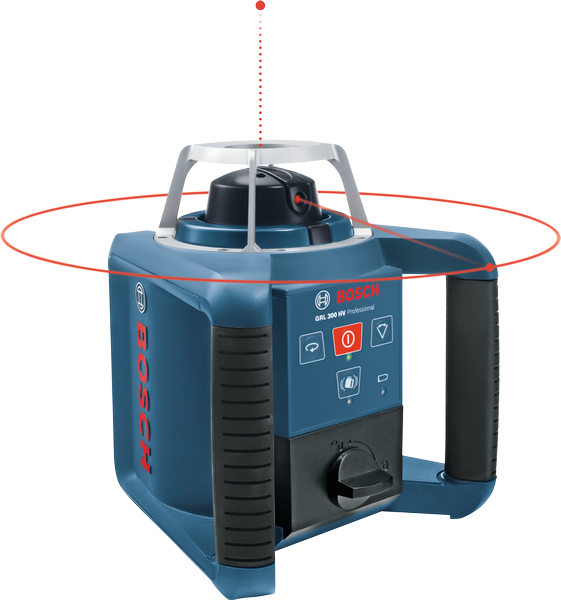

Rotation Laser GRL 300 HV Professional

Easy handling with horizontal and vertical self-levelling

273.00 KWD Recommended retail price excluding VAT

Technical data
Additional data
Working range with receiver, value 300   m
Slope function no
Accuracy ± 3.0 mm at 30 m* (*plus use-dependent deviation)
Working range with receiver up to 300 m (Diameter)
Laser diode 635 nm, < 5 mW
Operating temperature -10 – 50   °C
Storage temperature -20 – 70   °C
Laser class 3R
Working range without receiver up to 60 m (Diameter)
Self-levelling range ± 5° (8%)
Levelling time 15   s
Dust and splash protection IP 54
Rotation speed 150, 300, 600 rpm
Power supply NiMH battery pack, 2 x 1.5 V LR20 (D)
Tripod thread 5/8"
Weight, approx. 1.8   kg
Colour of laser line red

Advantages

Easy handling with horizontal and vertical self-levelling

  • Easy to operate thanks to one button per function, and self-explanatory display
  • Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
  • The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations

Functions

Icon
Icon
Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Sweep mode for better visibility
IP54 dust and splash water protection
Shock warning function gives an alarm if tool is moved
IP54 dust and splash water protection
Variable rotation speed higher speed for working with receiver, lower speed for better visibility
Icon
Laser class 3 Laser class for measuring tools.

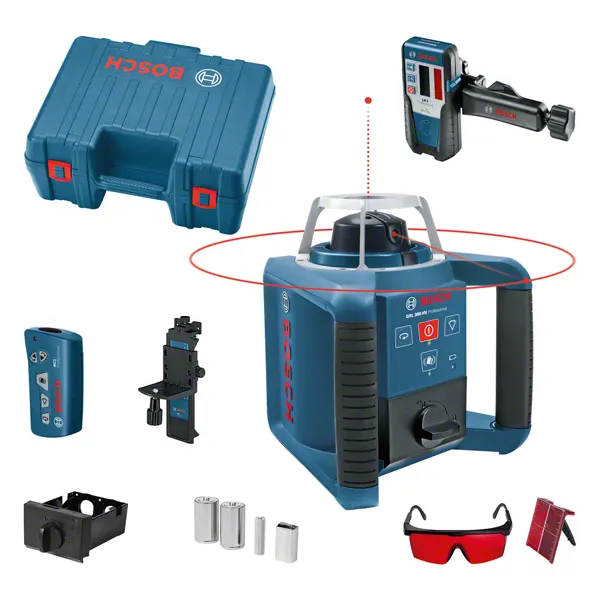

What’s Included in this Package
in carrying case with Accessory, accessory set
in carrying case with Accessory, accessory set
Order number: 0 601 061 501
  • Battery compartment (spare part number 1 608 M00 05D)
  • Carrying case
  • Charger set with adapter (spare part number 1 600 A00 1W3)
  • Holder also available separately as an accessory (spare part number 1 608 M00 70F)
  • Laser Receiver LR 1 Professional 0 601 015 400
  • Laser target (red) (spare part number 1 608 M00 05C)
  • Laser viewing glasses (red) (spare part number 1 608 M00 05B)
  • Remote control RC1 Professional 0 601 069 900
  • Universal mount WM 4 Professional 0 601 092 400
  • 1 x NiMH battery (spare part number 1 608 M00 05G)
  • 1 x 9 V block battery (6LR61)
  • 2 x 1.5 V LR20 battery (D)
  • 1 x 1.5 V LR6 battery (AA)
273.00 KWD Recommended retail price excluding VAT

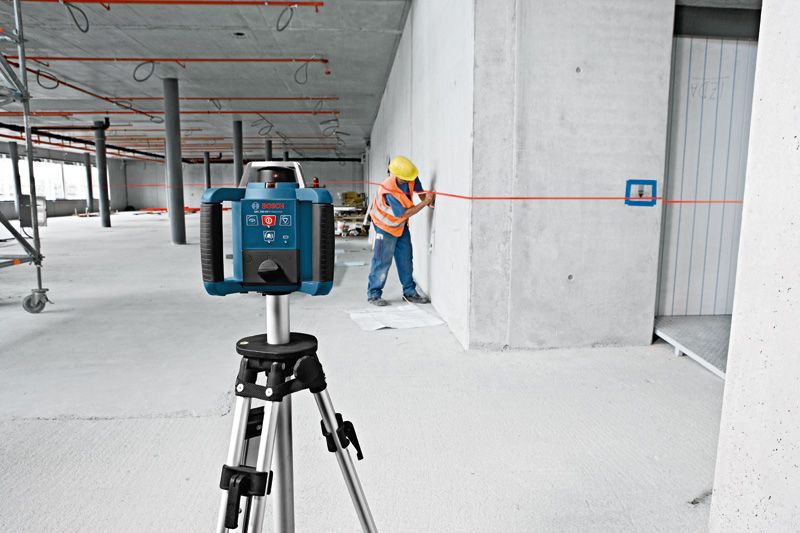

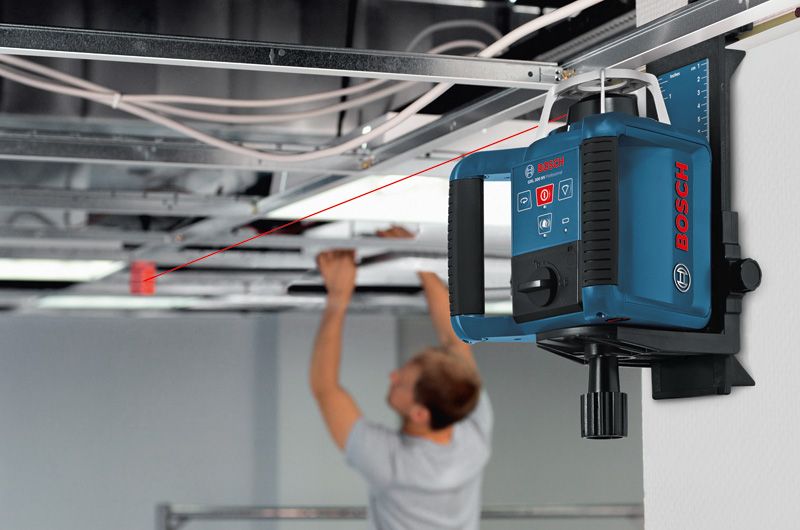

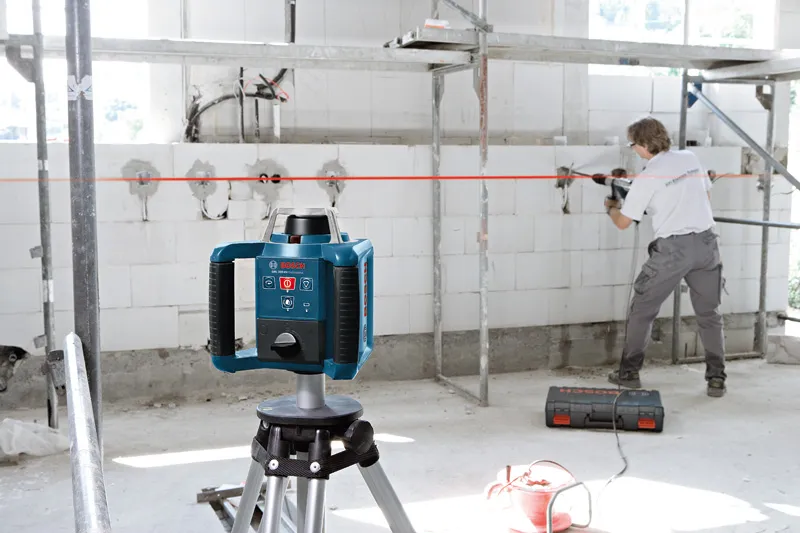

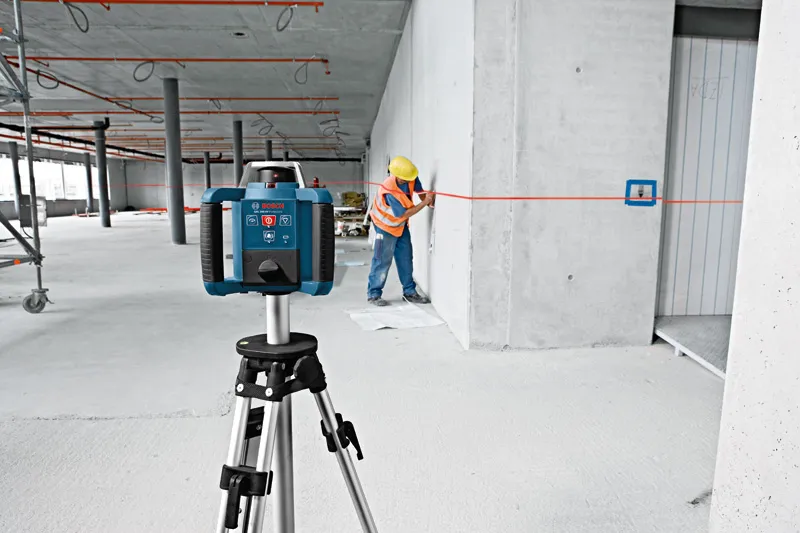

The GRL 300 HV in action!
