Technical data
| Additional data | |
|---|---|
| Working range* | 20 m |
| Working range with receiver* | 400 m (Diameter) |
| Accuracy* | ± 0.08 mm/m |
| Laser diode | 635 nm, < 1 mW |
| Operating temperature, from | -10 °C |
| Operating temperature, up to | 50 °C |
| Operating temperature | -10 – 50 °C |
| Storage temperature, from | -20 °C |
| Storage temperature, up to | 70 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range with receiver, value | 400 m |
| Working range with receiver, appendage | (Diameter) |
| Working range without receiver, value | 20 m |
| Working range without receiver, appendage | (Diameter) |
| Working range without receiver | 20 m (Diameter) |
| Self-levelling range | ± 8% (± 5°) |
| Levelling time | 15 s |
| Dust and splash protection | IP 56 |
| Rotation speed | 600 rpm |
| Power supply | 2 x 1.2 V HR20 (D) (9 Ah), 2 x 1.5 V LR20 (D) |
| Operating time (max.) | Rechargeable batteries (NiMH) 30 h |
| Tripod thread | 5/8"-11 |
| Weight, approx. | 2 kg |
| Colour of laser line | red |
| Compatible laser receivers | LR 1 |
* Highlighted Data
Advantages

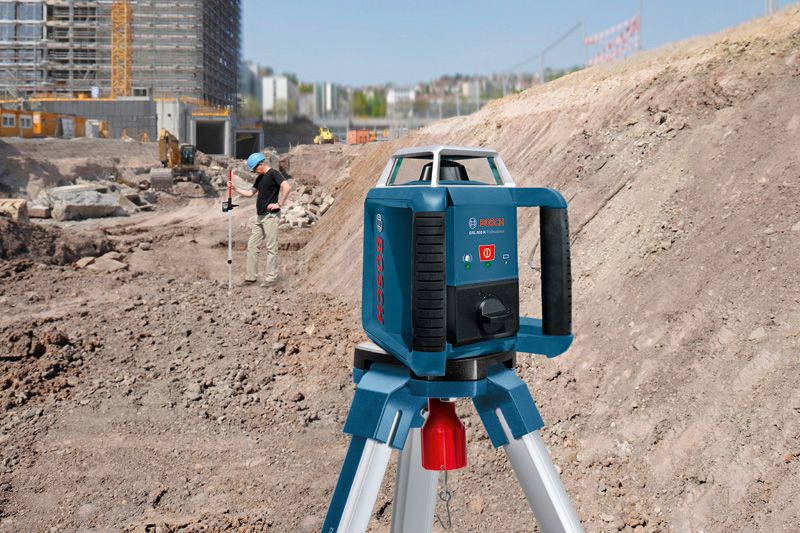

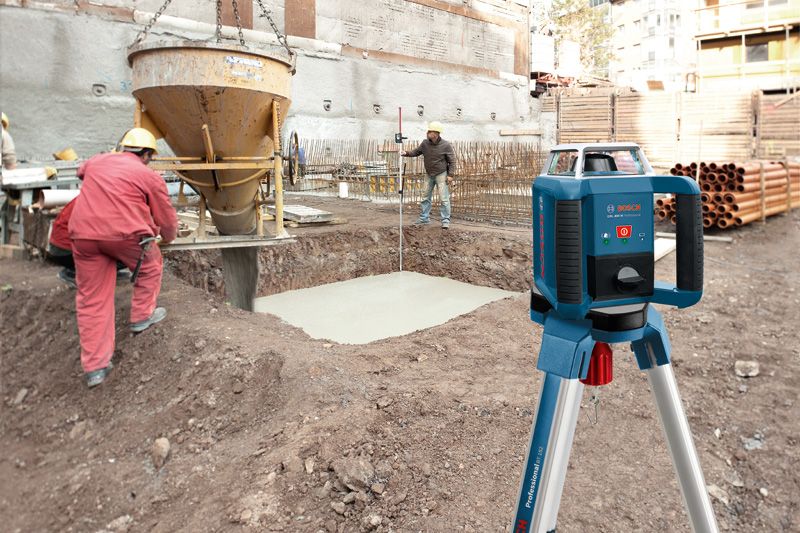

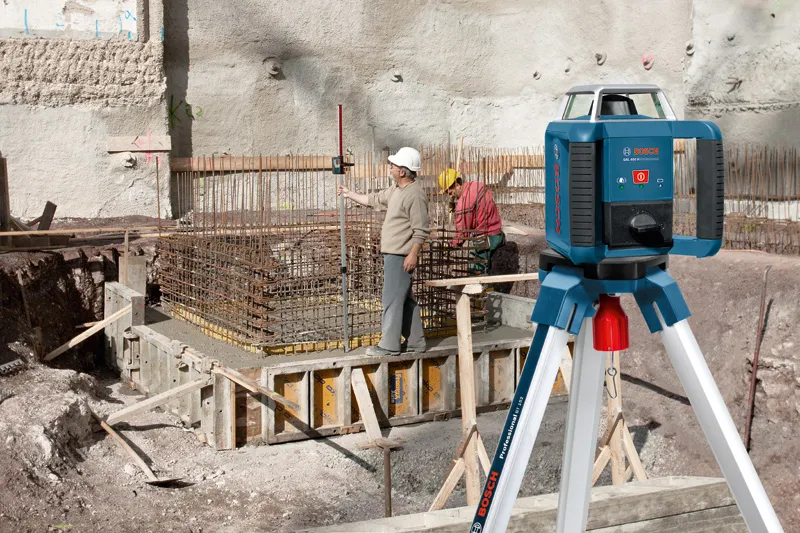

The easy-to-operate rotation laser for outdoor use
- Easy handling: one-button operation and self-explanatory display
- Self-levelling of 8% (± 5°) in the horizontal mode
- Automatic shock warning function prevents levelling errors in the event of vibrations or shocks
Functions

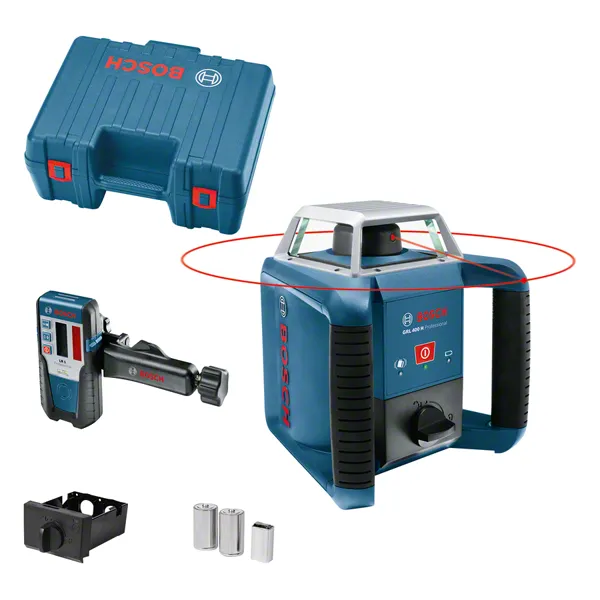

What’s Included in this Package
in carrying case with battery, accessory set
Order number:
0 601 061 800
- Carrying case (spare part number 1 608 M00 05F)
- Charger with adapter
- Laser Receiver LR 1 Professional 0 601 015 400
- Non-rechargeable battery compartment 1 609 203 M02
- 1 x NiMH battery (spare part number 1 608 M00 05G)
- 2 x 1.5 V LR20 battery
- 1 x 9 V block battery (6LR61)
