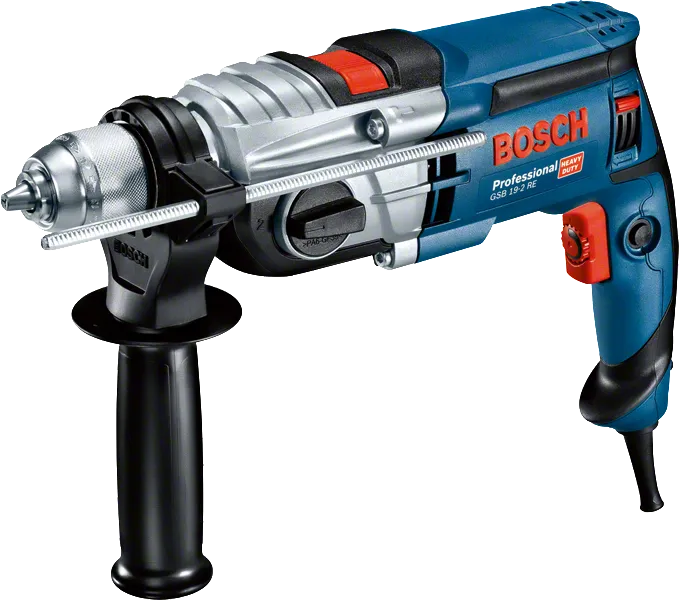

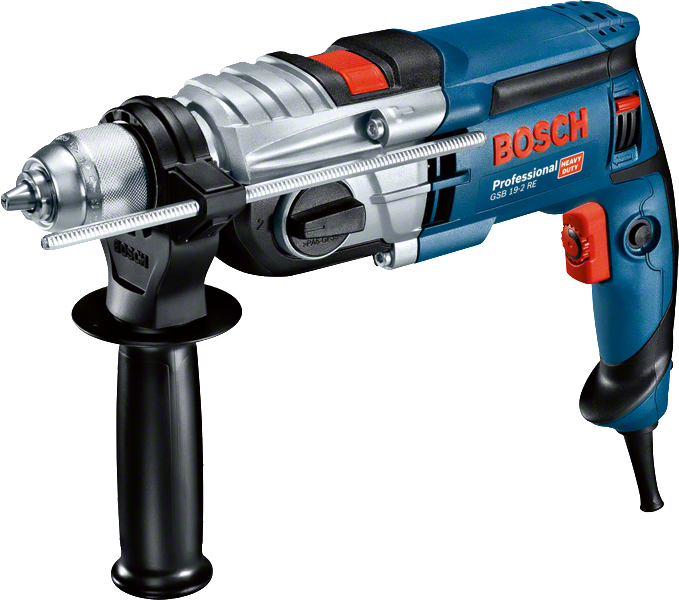

Impact Drill GSB 19-2 RE Professional

The fastest and most versatile tool in its class

Technical data
Additional data
Rated input power* 850 W
Weight 2.6 kg
No-load speed 0 – 1,000 / 3,000 rpm
Power output 430 W
Rated speed 800 / 2,060 rpm
Rated torque 5.2 / 2.0 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13 mm
Impact rate at no-load speed 0 – 17,000 / 51,000 bpm
Max. torque 36.0 / 15.5 Nm
Drilling range
Drilling diameter in concrete 18 / 13 mm
Drilling diameter in wood* 40 / 25 mm
Drilling diameter in steel 13 / 8 mm
Drilling dia. in stone 20 / 15 mm
Drilling diameter in masonry* 20 / 15 mm
Total vibration values (Drilling in metal)
Vibration emission value ah 3 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Impact drilling in concrete)
Vibration emission value ah 15 m/s²
Uncertainty K 2 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.

Advantages

The fastest and most versatile tool in its class

  • Powerful 2-speed impact drill (850 W) for the fastest work progress
  • Sturdy metal gear housing for a long lifetime
  • Antirotation mechanical overload clutch for a high level of work safety

Functions

Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
What’s Included in this Package

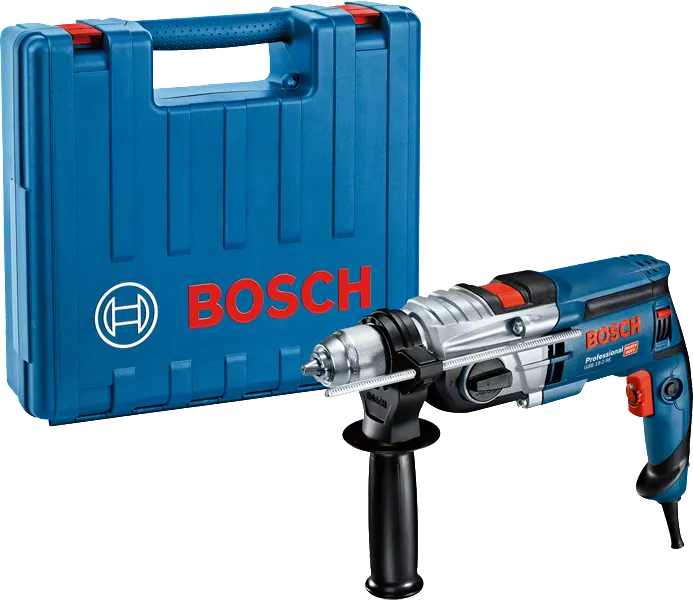

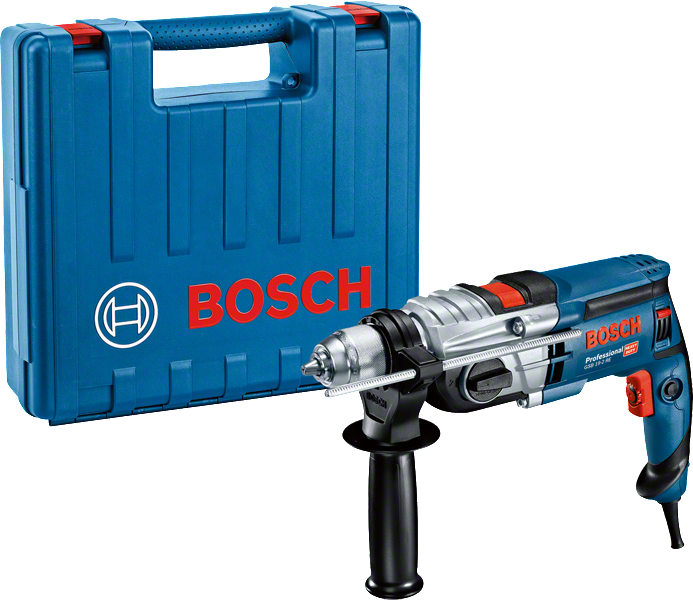

in carrying case with accessory set, (Voltage 240 V)
in carrying case with accessory set, (Voltage 240 V)
Order number: 0 601 17B 570
  • Auxiliary handle 2 605 025 190
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 149
  • Voltage 240 V
The GSB 19-2 RE in action!
