Bosch Professional Power Tools & Accessories

Impact drills

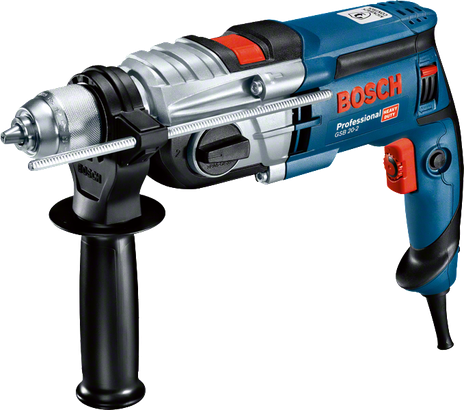

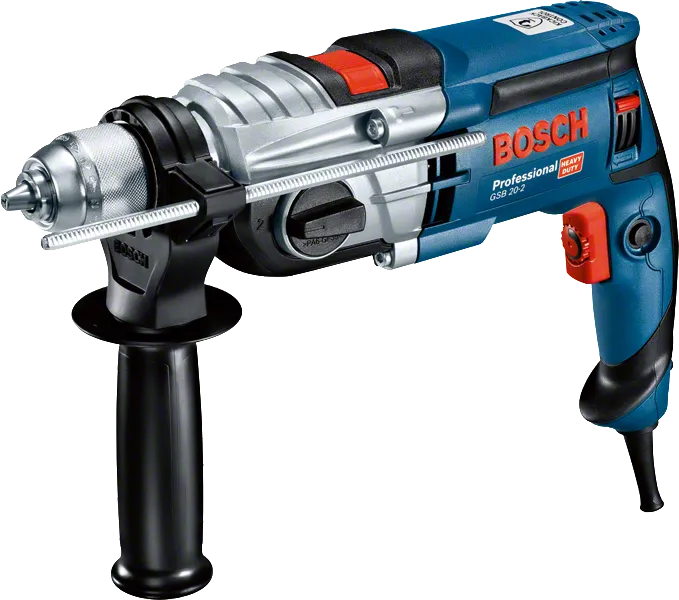

GSB 20-2 Professional

Impact Drill

All-round performing 2-gear corded impact drill with KickBack Control

Powerful 850 W motor for fast work progress
KickBack Control increases user protection
Sturdy metal gear housing for a long tool lifetime

Functions & key features

Your Selection

with chuck

Show variant

68.00 KWD Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

with chuck 0 601 17B 400

68.00 KWD Recommended retail price excluding VAT

Find a local dealer

GSB 20-2 Professional

Your Selection

with chuck

Order number: 0 601 17B 400

68.00 KWD

Recommended retail price excluding VAT

Find a local dealer

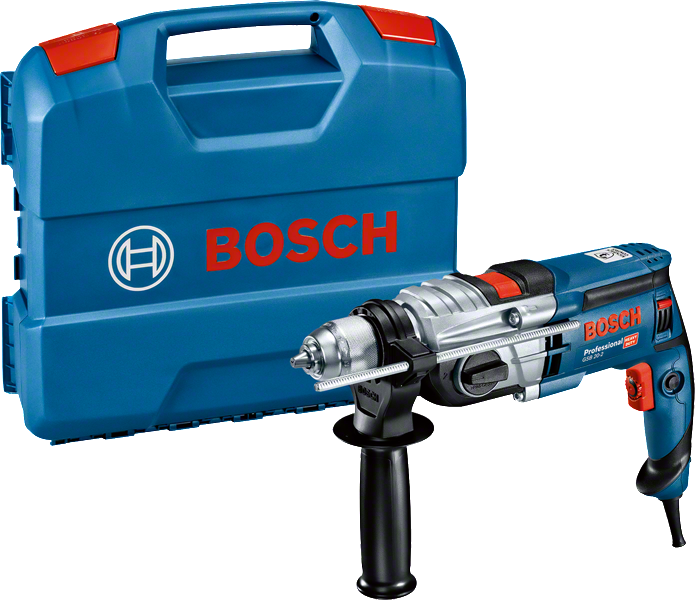

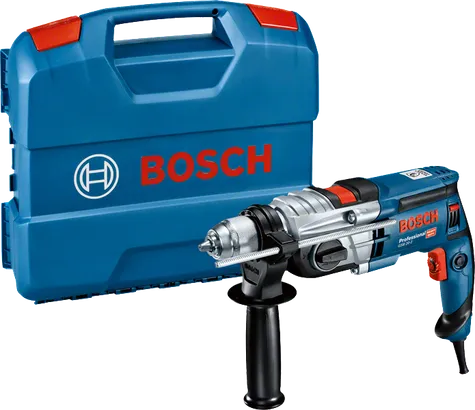

Included in this variant

Auxiliary handle

Order number: 2 605 025 190
L-CASE
Keyless chuck 13 mm

Order number: 2 608 572 149
Depth stop 210 mm

Order number: 1 613 001 010

Your selection

Technical data

Additional data
Rated input power	850 W
Weight	2.6 kg
Drill chuck, version	13-mm keyless chuck
Voltage, electrical	230 V
Bit holder	1/2"-20 UNF
No-load speed, 1st gear	0 – 1,000 rpm
No-load speed, 2nd gear	3,000 rpm
Power output	430 W
Impact rate at no-load speed	0 – 51,000 / 51,000 bpm
Rated speed	800 / 2,060 rpm
Drill spindle connecting thread	1/2"-20 UNF
Chuck capacity, min./max.	1.5 – 13 mm
Rated torque	5.2 / 2.0 Nm
Max. torque	36.0 / 15.5 Nm

Drilling range
Drilling diameter in wood	40 mm
Drilling diameter in steel	13 mm
Drilling dia. in stone	20 / 15 mm
Drilling diameter in masonry	20 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah	15 m/s²
Uncertainty K	2 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Thread-cutting)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	99 dB(A)
Sound power level	110 dB(A)
Uncertainty K	5 dB

Drilling in metal
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Impact drilling in concrete
Vibration emission value ah	15 m/s²
Uncertainty K	2 m/s²

Screwdriving
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Thread-cutting
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

GSB 20-2 Professional: Further information

Product Highlights

The GSB 20-2 Professional is the all-round performing 2-gear corded impact drill with KickBack Control. Its powerful 850 W motor enables fast work progress. User protection is increased by its intelligent KickBack Control feature. Additionally, the impact drill is designed with a sturdy metal gear housing that ensures a long tool lifetime.

Equipment & Application

This impact drill is intended for drilling in concrete, stone, and masonry. It is compatible with the dust attachment GDE 16 Cyl Professional.
