Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,100 W |
| Weight | 2.85 kg |
| No-load speed | 0 – 900 / 3,000 rpm |
| Power output | 630 W |
| Rated speed | 580 / 1,900 rpm |
| Rated torque | 9.6 / 3.2 Nm |
| Drill spindle connecting thread | 1/2" – 20 UNF |
| Chuck capacity, min./max. | 1.5 – 13 mm |
| Impact rate at no-load speed | 0 – 15,300 / 51,000 bpm |
| Max. torque | 40.0 / 14.5 Nm |
| Drilling range | |
|---|---|
| Drilling diameter in concrete | 22 / 13 mm |
| Drilling diameter in wood* | 40 / 25 mm |
| Drilling diameter in steel | 16 / 8 mm |
| Drilling diameter in masonry* | 24 / 16 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 5.6 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 14.6 m/s² |
| Uncertainty K | 1.8 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
Advantages
The most powerful tool in its class – for the toughest applications
- Bosch high-performance motor (1100 W) with high torque for the most heavy-duty applications with large diameters (drilling, working with core cutters and holesaws), screwdriving and stirring
- Sturdy metal gear housing for a long lifetime
- Antirotation mechanical overload clutch for a high level of work safety, even in the toughest applications
Functions

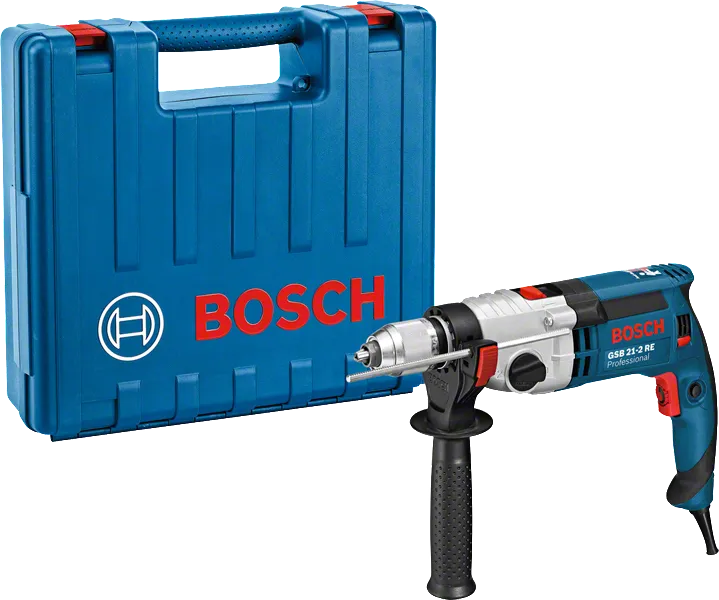

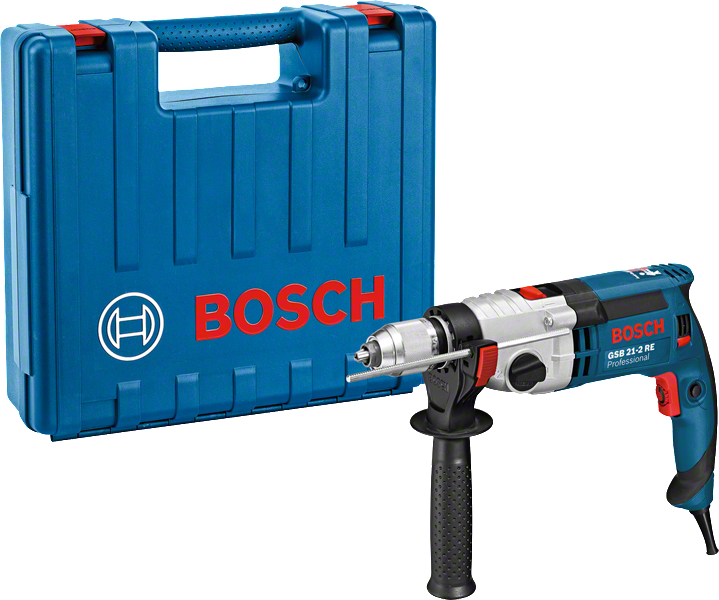

What’s Included in this Package
in carrying case with accessory set, (Voltage 110 V)
Order number:
0 601 19C 560
- Auxiliary handle 2 602 025 193
- Carrying case 2 605 438 524
- Depth stop 210 mm 1 613 001 010
- Keyless chuck 13 mm 2 608 572 150
- Voltage 110 V
81.00 KWD
Recommended retail price excluding VAT.
