Shears
![GSC 75-16]( "GSC 75-16")
![GSC 75-16]( "GSC 75-16")
![GSC 75-16]( "GSC 75-16")

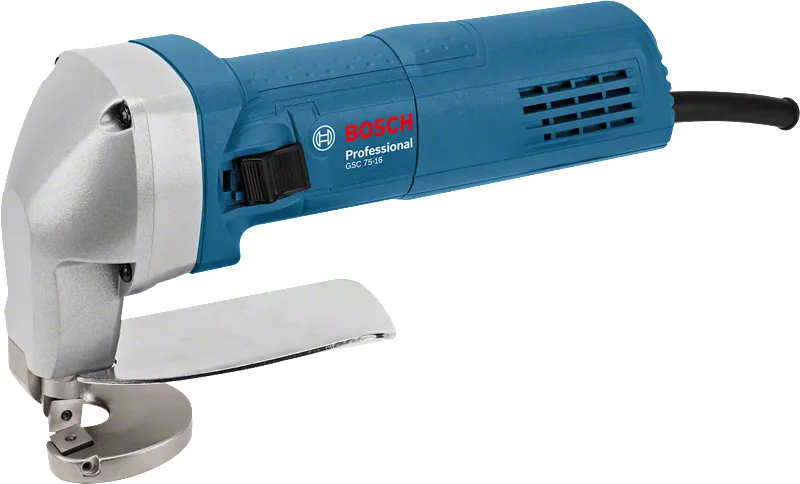

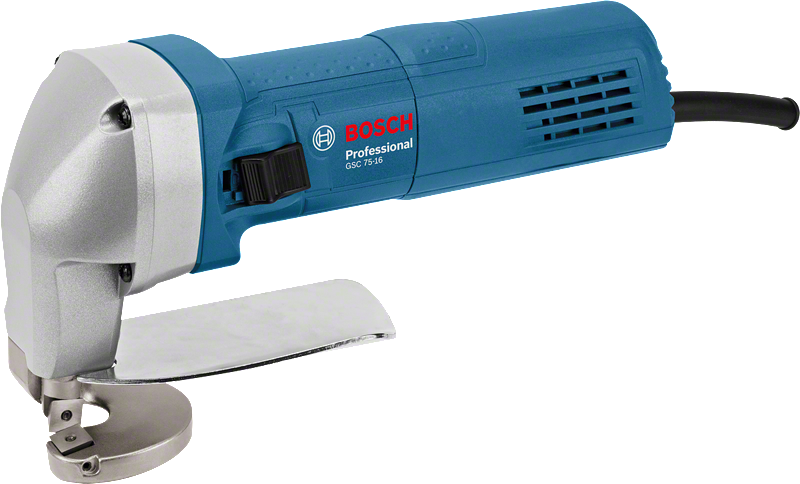

GSC 75-16 Professional
Shear
Powerful and handy for fast and comfortable cutting
- Optimal tool guidance with a small grip circumference
- High cutting speed with low exertion of force
- Excellent manoeuvrability in curves
Functions & key features
with hex key
0 601 500 500
GSC 75-16 Professional
Your Selection
with hex key
Order number: 0 601 500 500
Find a local dealerIncluded in this variant
-
Hex key WAF 3 (spare part number 1 907 950 004)
-
1 x upper and lower blade for metal shearOrder number: 2 608 635 243
Technical data
Additional data |
|
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 1.6 mm |
| No-load stroke rate | 5,200 spm |
| Voltage | 230 V |
| Material that can be processed | Steel up to 400 N/mm² at 1.6 mm |
| Smallest radius | 35 mm |
| Stroke rate under load | 4,000 spm |
| Weight | 1.7 kg |
| Cutting capacity in steel (600 N/mm²), max. | 1.2 mm |
| Cutting capacity in steel (800 N/mm²), max. | 0.7 mm |
| Cutting capacity in aluminium (200 N/mm²), max. | 2.2 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
