Technical data
| Additional data | |
|---|---|
| Battery voltage* | 12 V |
| Stroke rate at no load | 1,500 – 2,800 spm |
| Stroke height | 18 mm |
| Mitre cuts | 0–45 ° |
| Cutting depth | |
|---|---|

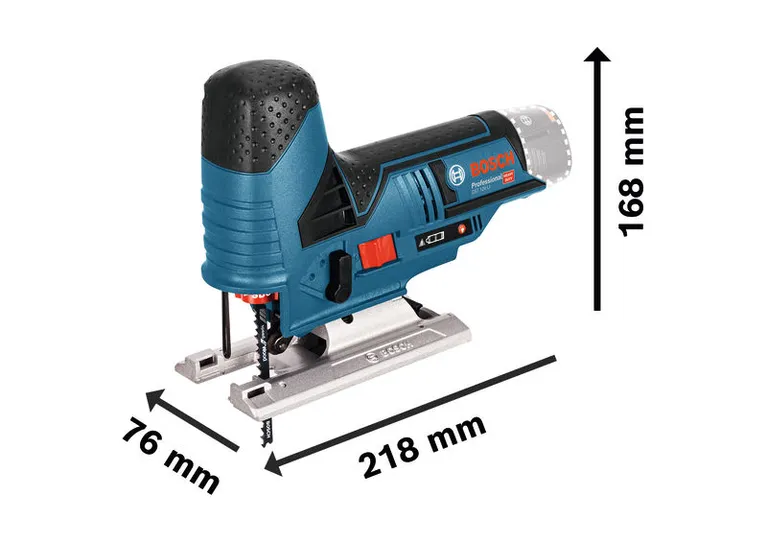

| Cutting depth in wood* | 70 mm |
| Cutting depth in aluminium* | 3 mm |
| Cutting depth in metal | 3 mm |
| Total vibration values (Sawing wood) | |
|---|---|
| Vibration emission value ah | 5.5 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Sawing sheet metal) | |
|---|---|
| Vibration emission value ah | 5 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 77 dB(A); Sound power level 88 dB(A). Uncertainty K= 3 dB.
Advantages

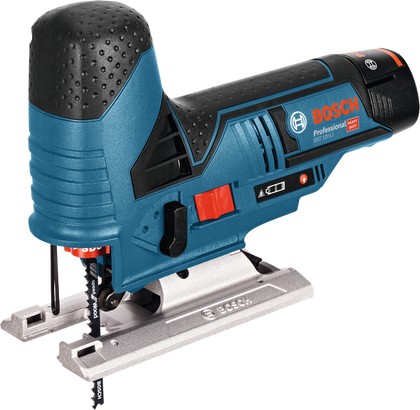

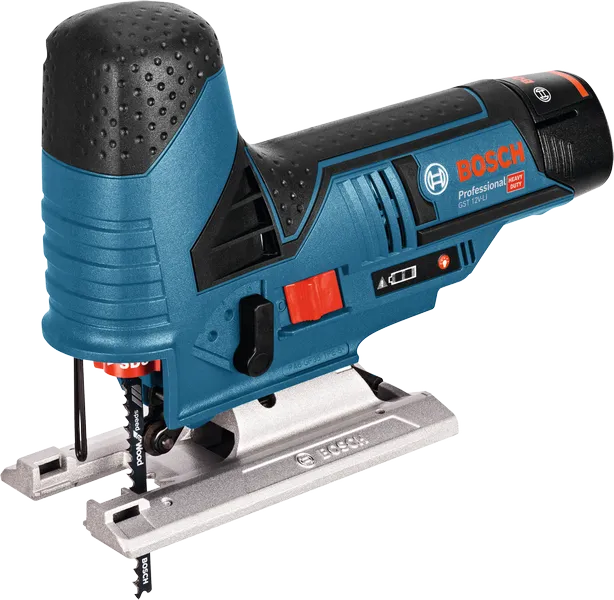

Extremely compact and lightweight 12 volt professional cordless jigsaw
- Extremely compact, lightweight cordless jigsaw for perfect handling and manoeuvrability in curves
- High performance: fast sawing progress and long battery runtime
- Grip position is exceptionally close to the cutting line, thus allowing especially precise cutting
Functions

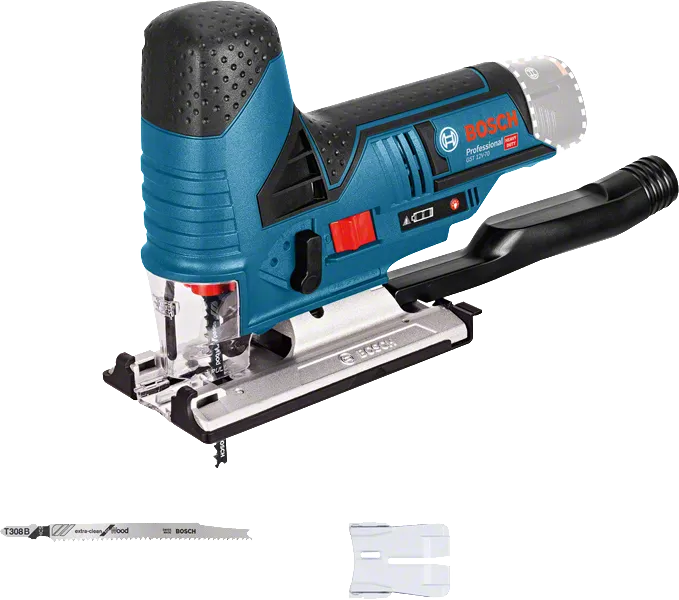

What’s Included in this Package *
in cardboard box with accessory set
Order number:
0 601 5A1 001
- Dust extraction set
- Glide shoe
- Cardboard box
- L-BOXX inlay
- Anti-splinter guard
- 1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560)
- 1 x jigsaw blade T 308 B, Extra-clean for Wood (available separately as set of 3: 2 608 663 750)
* Battery and charger not included
