Technical data
| Additional data | |
|---|---|
| Rated input power* | 650 W |
| Stroke rate at no load | 500 – 3,100 spm |
| Weight | 2.6 kg |
| Cable length | 2.5 m |
| Cutting depth | |
|---|---|
| Cutting depth in wood* | 90 mm |
| Cutting depth in aluminium* | 20 mm |
| Cutting depth in non-alloyed steel | 10 mm |
| Total vibration values (Sawing wood) | |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Sawing sheet metal) | |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K= 1.5 dB.
Advantages
Top-class convenience in the entry level class
- The reliable partner for day-to-day use
- High level of convenience with Bosch “SDS” for easy, tool-free, two-hand saw blade changes
- Switch with accelerator function for smooth pilot sawing of the material
Functions
What’s Included in this Package
in carrying case with accessory set, (Voltage 240 V)
Order number:
0 601 58F 070

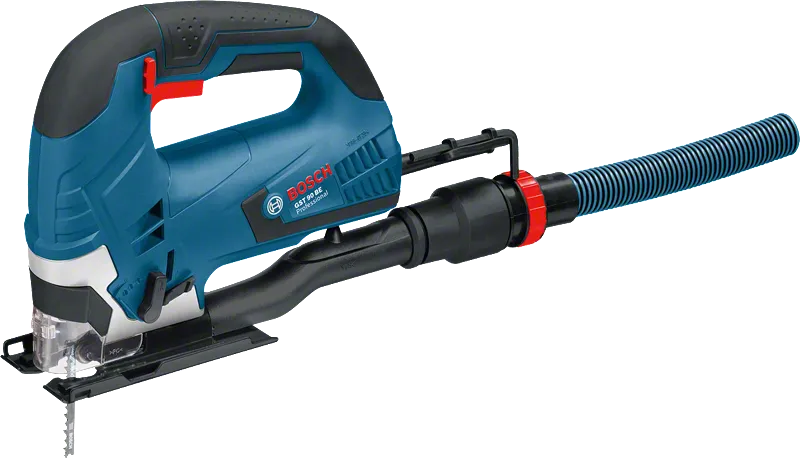

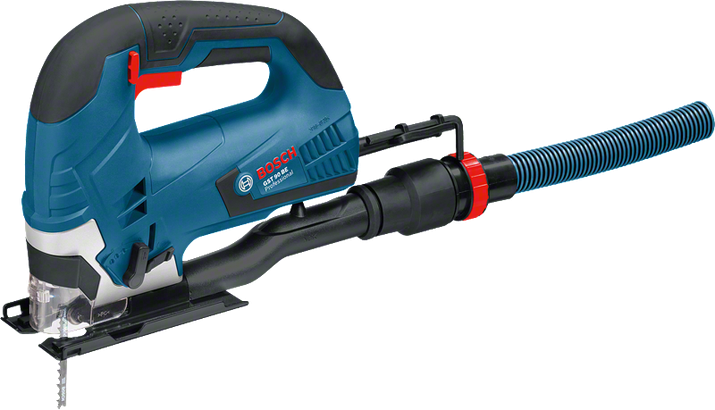

- Dust extraction set 1 619 P07 167

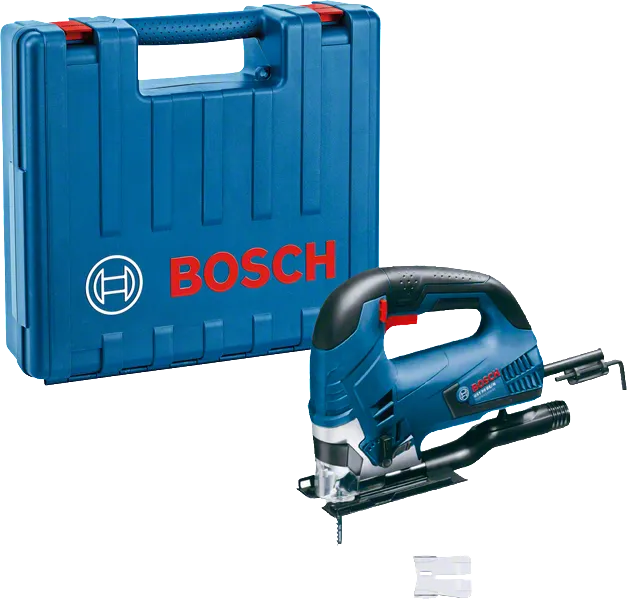

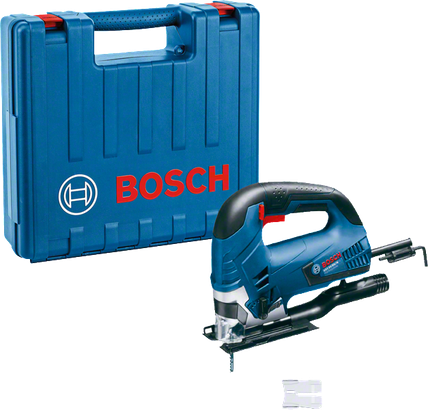

- Carrying case 1 619 P07 164
- Allen key WAF 5 (spare part number 1 907 950 006)
- Voltage 240 V
- Anti-splinter guard (spare part number 2 601 016 065)
- 3 x jigsaw blade T 144 DP, Precision for Wood 2 608 633 A31
