Table saws & work benches

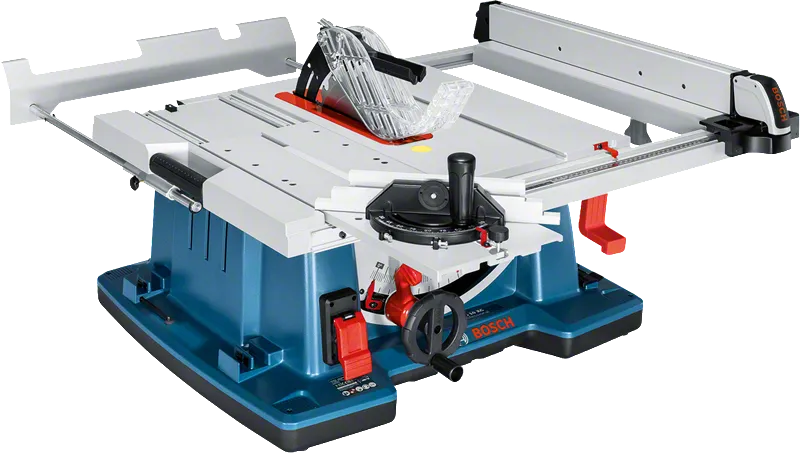

GTS 10 XC Professional

Table Saw

The versatile tool with a powerful motor

  • Powerful motor with motor brake, starting current limitation, overload protection and Constant Electronic for the toughest applications

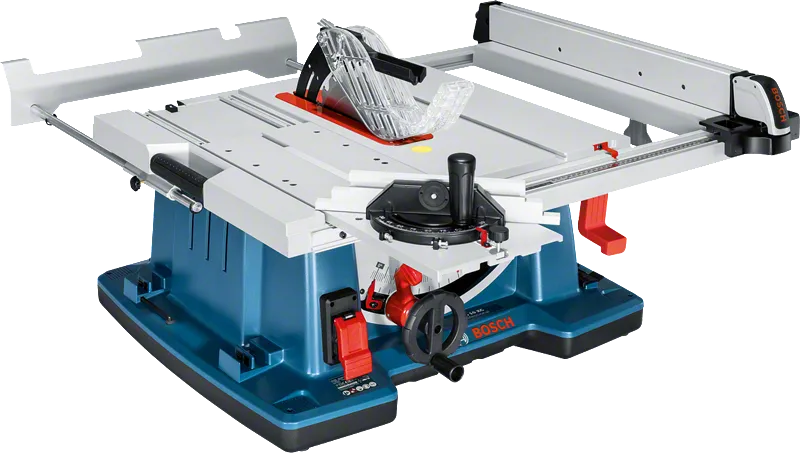

  • Versatile due to integrated slide carriage as well as table widener and table extension
  • Tool-free lowering of the riving knife for concealed cuts

Functions & key features

Easy disc / tool change thanks to spindle lock
Two layers of insulating material surrounding live parts or reinforced insulation. Does not require a connection to electrical earth (ground)
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster Harmful dust is extracted immediately: Protects your health Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
Soft start as the load and torque of the motor are temporarily reduced during start-up.

Your Selection

  • with dust extraction accessory, Accessory
Show variant
355.00 KWD Recommended retail price excluding VAT
Check availability on location
Find a local dealer
with dust extraction accessory, Accessory 0 601 B30 470
355.00 KWD Recommended retail price excluding VAT
Find a local dealer

GTS 10 XC Professional

Your Selection

with dust extraction accessory, Accessory

Order number: 0 601 B30 470

355.00 KWD

Recommended retail price excluding VAT

Find a local dealer

Included in this variant

  • Voltage 240 V
  • Parallel guide
    Order number: 2 610 016 851
  • Angle guide
    Order number: 2 610 015 508
  • Dust extraction adapter
    Order number: 2 610 015 509
  • Push stick
    Order number: 2 610 015 022
  • Storage for additional saw blade
  • 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24
    Order number: 2 608 838 412
Your selection

Technical data

Additional data
Rated input power 2,000 W
Saw blade diameter 254 mm
Incline setting 47 ° L / 1 ° R
Table size 640 x 705 mm
Voltage 240 V
No-load speed 4,200 rpm
Saw blade bore diameter 30 mm
Weight 35 kg

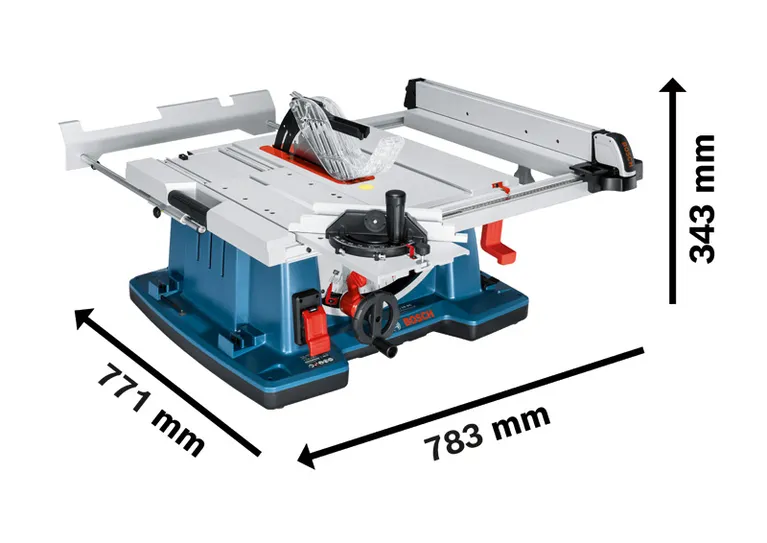

Tool dimensions (width x length x height) 771 x 783 x 343 mm
Cutting height 90° 79 mm
Cutting height 45° 56 mm
Max. cutting capacity on the right 635 mm
Max. cutting capacity on the left 250 mm
Show more

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601L30470

Product name

GTS 10 XC

Description

Table Saw

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Fits to GTS 10 XC Professional

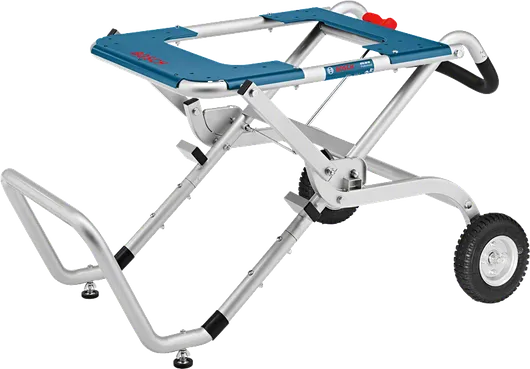

GTA 60 W

GTA 60 W

Saw Stand

Variants: 1
from  91.00 KWD Recommended retail price excluding VAT

Downloads

User Manual

Insert | Herstellergarantie (EU),Manufacturer's guarantee (EU) (PDF 0.3 MB) Instruction manual | GTS 10 XC (PDF 16.1 MB) Instruction manual | GTS 10 XC (PDF 16.5 MB) Instruction manual | GTS 10 XC (Online version)
