For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 5 options
Number of teeth 5 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Ground and sharpened fine carbide teeth for strength, durability and precision

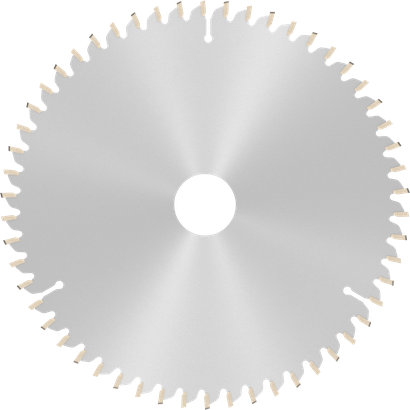

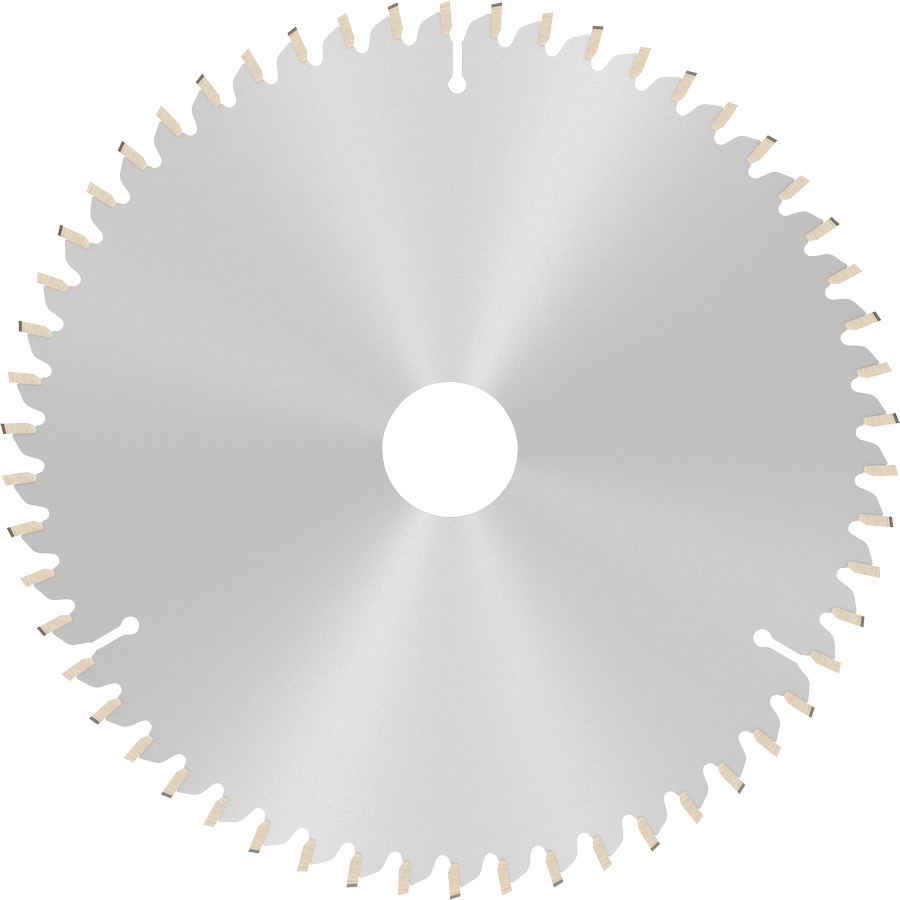

Expansion slots reduce heat for a longer lifetime

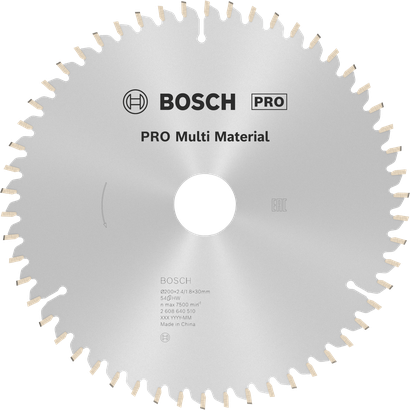

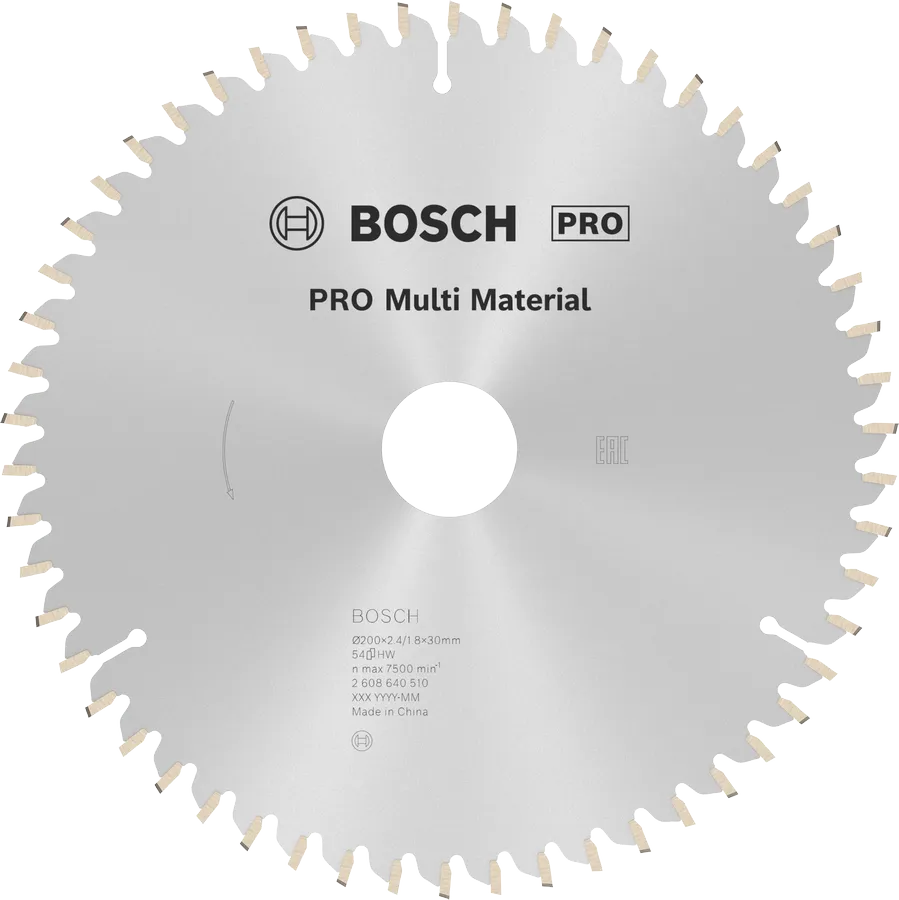

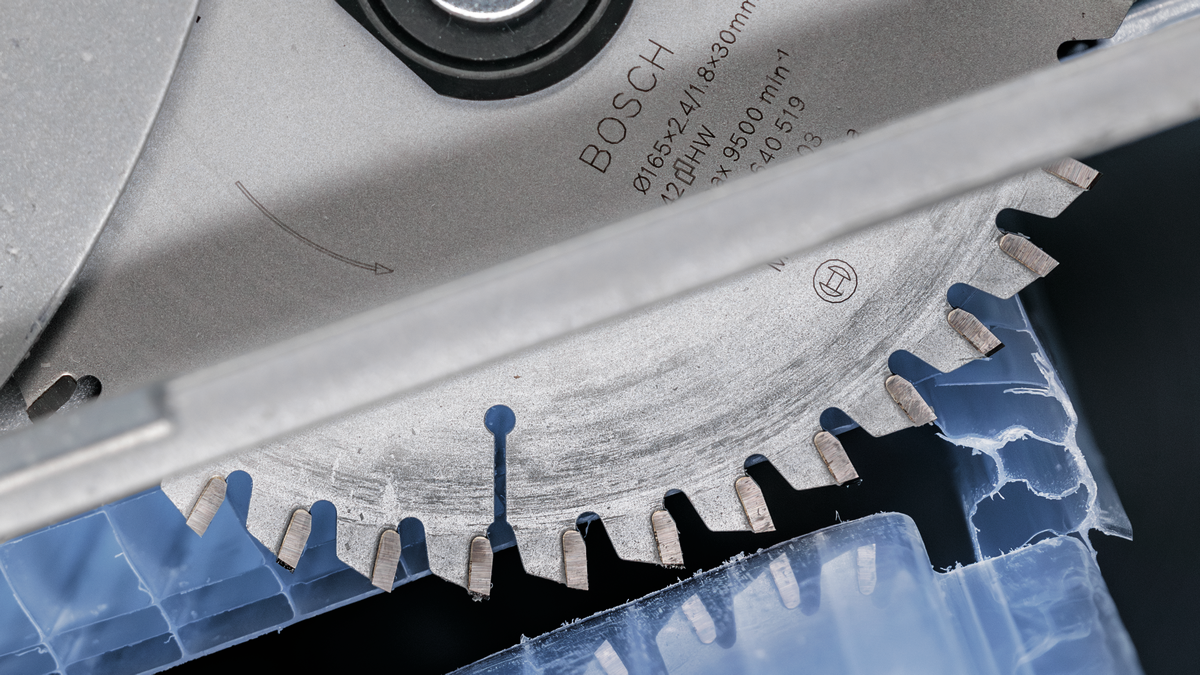

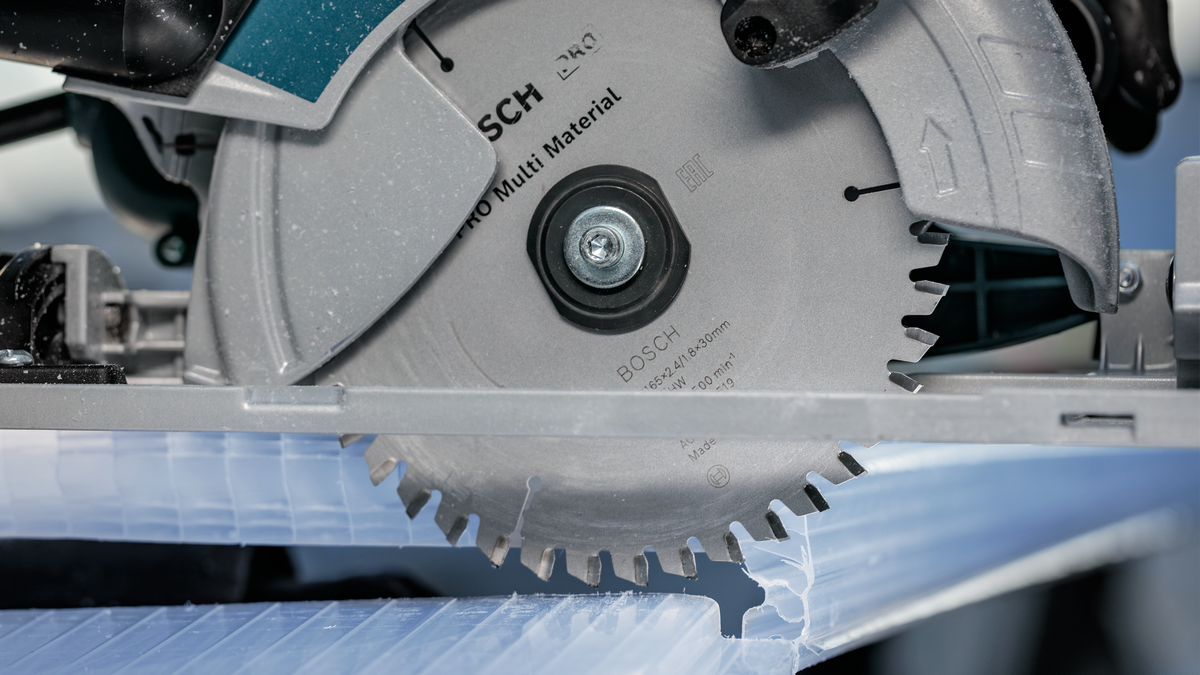

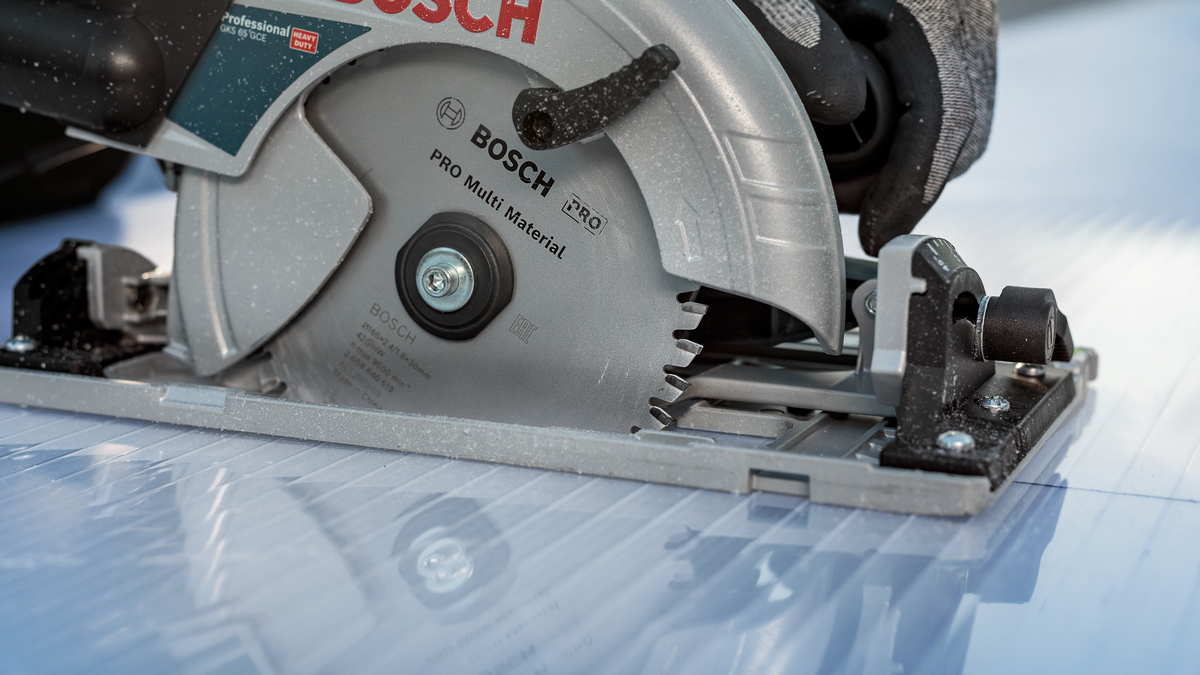

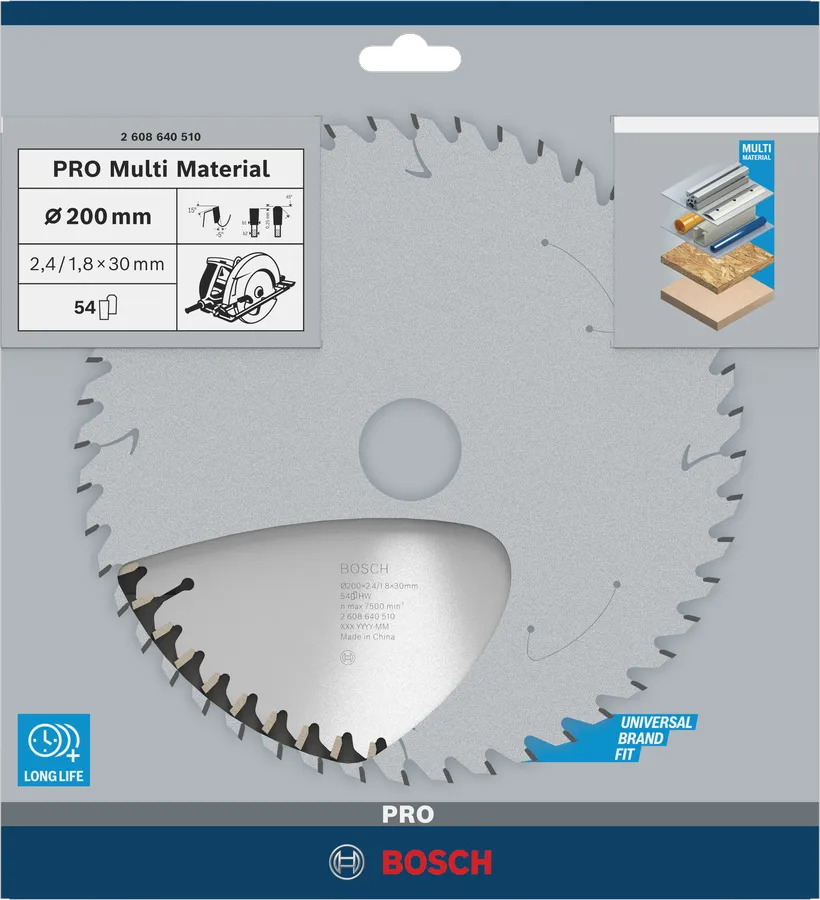

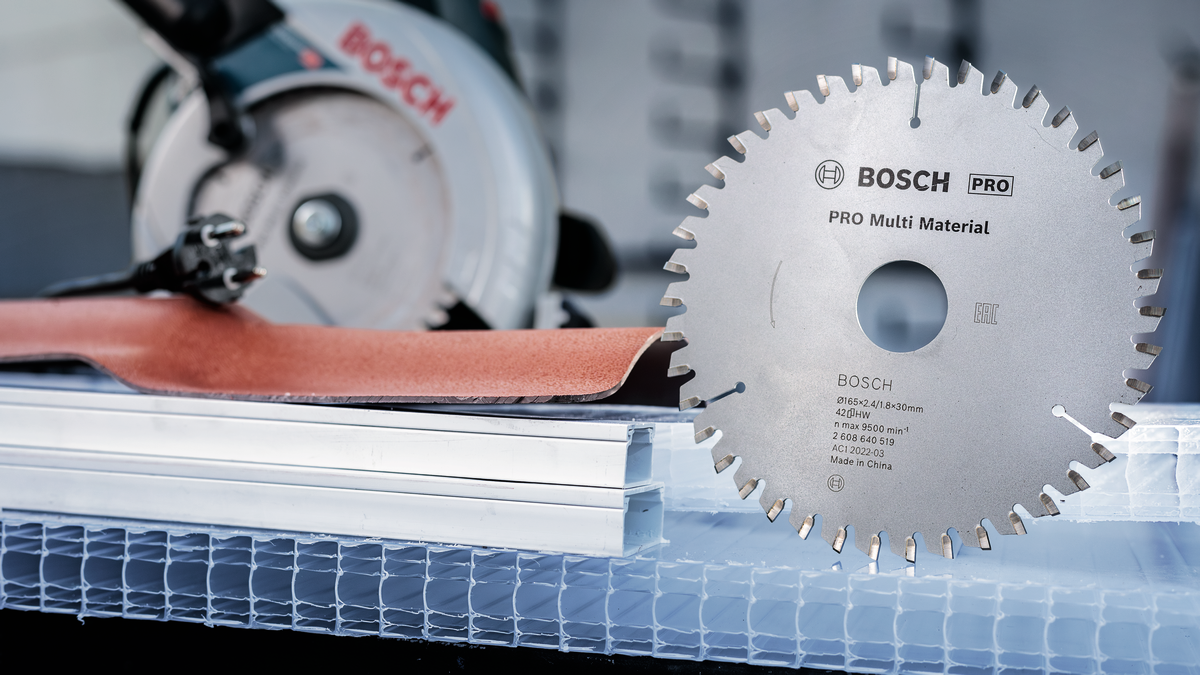

Installing window frames often means you need to cut various materials. You want a circular saw blade that cuts aluminium and other metals as well as plastics, wooden chipboards, and MDF. Try the PRO Multi Material Circular Saw Blade: it will help you get the job done.
Available product options: 7
|
Part number
|
Outer diameter inch
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 640 509 | 7 1/2 | 190 | 30 | 2.4/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 640 511 | 8 1/4 | 210 | 30 | 2.4/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 640 513 | 9 | 230 | 30 | 2.4/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 640 514 | 9 1/4 | 235 | 30 | 2.4/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 640 815 | 7 1/4 | 184 | 16 | 2.4/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 642 193 | 7 1/4 | 184 | 20 | 2/1.5 | 1 Pcs | Find a local dealer | ||
| 2 608 642 197 | 9 1/4 | 235 | 25 | 2/1.5 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608640509 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 7 1/2 |
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 54 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640511 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 8 1/4 |
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 54 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640513 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 9 |
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 64 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640514 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 9 1/4 |
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 64 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 25 |
| Part number 2608640815 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 7 1/4 |
| Outer diameter mm | 184 |
| Bore size mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.4/1.8 |
| Number of teeth | 48 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642193 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 7 1/4 |
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.5 |
| Number of teeth | 60 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 16 |
| Bore with reduction ring inch | 5/8 |
| Part number 2608642197 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 9 1/4 |
| Outer diameter mm | 235 |
| Bore size mm | 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.5 |
| Number of teeth | 80 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 16 / 20 |
| Bore with reduction ring inch | 5/8 |
