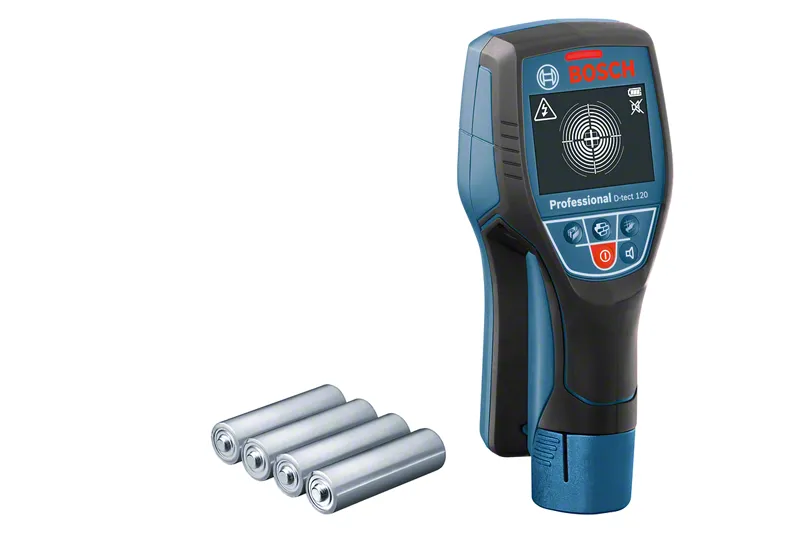

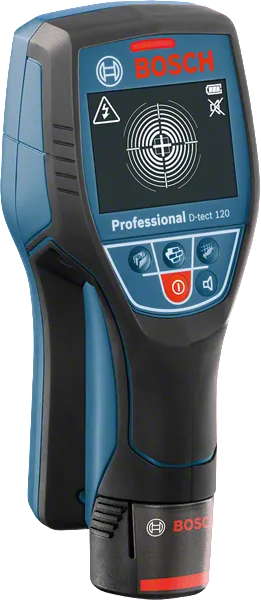

Detector D-tect 120 wallscanner Professional

Intuitive radar scanner for almost all materials

Technical data
Additional data
Detection depth, steel, max.* 120   mm
Detection depth, copper, max.* 120   mm
Max. detection depth* 120   mm
Detectable materials Water-filled plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables
Detection depth of live cables, max. 60   mm
Detection depth of wooden substructures, max. 38   mm
Accuracy ± 10 مم   mm
Automatic deactivation, approx. 5 minutes
Power supply 10.8 V Li-ion or 4 x 1.5 V LR6 (AA)
Weight, approx. 0.5   kg
Detection depths, max. (material) Plastic pipes (water-filled), 60, Copper wires (live), Ferrous metals, 120, Non-ferrous metals (copper)
Detection depths, max. (mode) Concrete, 120, Drywall construction, 60, Universal mode
Display of max. drilling depth -
Additional function Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

* Highlighted Data

Advantages

Intuitive radar scanner for almost all materials

  • Spot measurement provides accurate detection on narrow surfaces
  • Centre finder offers visual guidance, to clearly identify the precise location of the object's centre
  • Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

Functions

Detection of metal neutral Millimetre-accurate detection of ferrous/non-ferrous metals
Detection of wires neutral Millimetre-accurate detection of live cables
Detection of wood neutral Millimetre-accurate detection of wooden studs
Detection of plastic neutral Millimetre-accurate detection of water-filled plastic pipes
Centre Finder Visual direction guidance for precise locating of the object’s centre
Dual Power Can be powered both by 10.8 V LI rechargeable battery and by standard alkaline batteries
Battery pack 10.8 V-LI Can be operated with 10.8 V-LI battery
35-minute charger 1130 CV Battery fully charged after only 35 mins
L-BOXX ready L-BOXX ready
Object Tracking Displays the exact location of the detected object

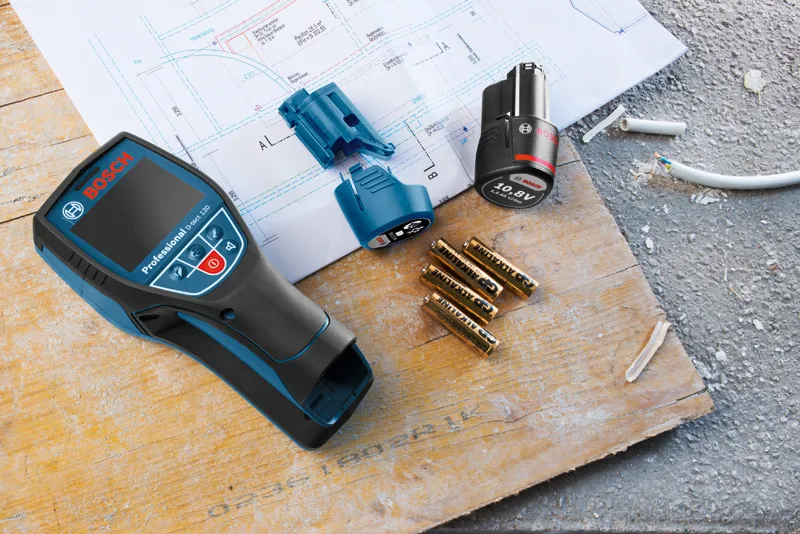

What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 081 300
  • AA1 alkaline battery adapter 1 608 M00 C1B
  • Quick-start card
  • 4 x 1.5 V LR6 battery (AA)
Product variations (2)
The D-tect 120 wallscanner in action!
