PRO

PRO GRL 400 H + LR 1 in L-BOXX

Rotation Laser

Order number 0.601.061.806

  • One-button keypad, Electronic Self Levelling functionality, and convenient battery tray
  • Consistently accurate results with an accuracy of ± 2.4 mm at 30m and an ADS shock warning system
  • Withstands harsh conditions of any outdoor jobsite thanks to water and dust protection IP56
View more

12,249.00 MAD

Recommended retail price including VAT.


in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, receiver 0 601 061 806

12,249.00 MAD

Recommended retail price including VAT.

PRO GRL 400 H + LR 1 in L-BOXX

Your Selection

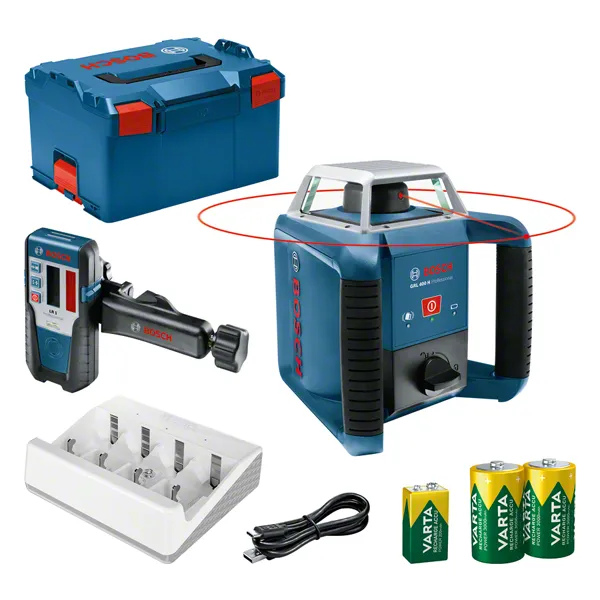

Bosch GRL 400 H laser leveling tool with receiver and case.
in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, receiver

Order number: 0 601 061 806

12,249.00 MAD

Recommended retail price including VAT.

Find a local dealer

Included in this variant

  • 1 x 9V 7HR9V VARTA rechargeable battery
  • 2 x 1.2V HR20 (D) VARTA rechargeable batteries
  • L-BOXX 238
    Order number: 1 600 A01 2G2
  • Bracket
    Order number: 1 608 M00 70F
  • 1 x VARTA charger
  • Laser Receiver LR 1 Professional
    Order number: 0 601 015 400

Technical data

Additional data

Dust and splash protection
IP 56
Working range with receiver
400 m (diameter)
Accuracy
± 2.4 mm at 30m
Colour of laser line
red
Laser diode
635 nm, < 1 mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range without receiver
20 m (diameter)
Self-levelling range
± 8% (± 5°)
Levelling time
15 s
Rotation speed
600 min-¹
Power supply
2 x 1.5 V LR20 (D)
Weight, approx.
2 kg
Compatible laser receivers
LR 1
Slope function
no

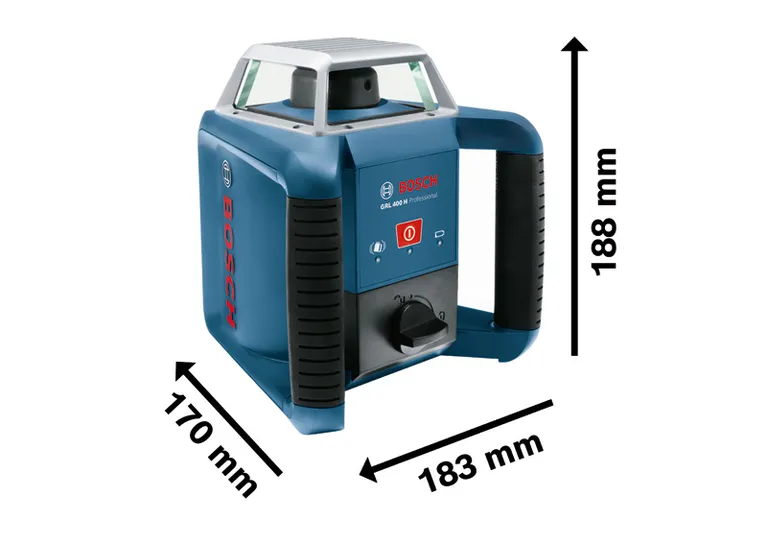

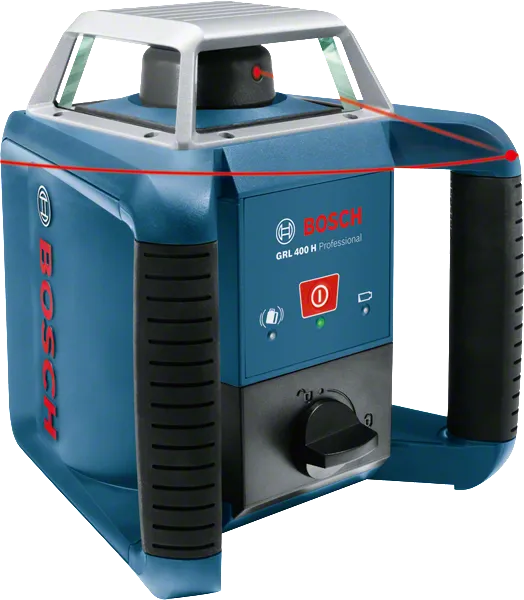

Bosch GRL 400 H rotation laser leveling tool with IP56 protection.

* You can find more information about the deviations in the following link: Technical features of products

PRO GRL 400 H + LR 1 in L-BOXX: Further information

Product Highlights

Easy to use and ready to go – the intuitive, single-button GRL 400 H rotary laser is always prepared for use at a moment´s notice when performing outdoor-levelling applications. Its one-button keypad, Electronic Self Levelling functionality, and convenient battery tray enable straightforward work with an easy setup and simple battery replacement – without even moving the tool. With an accuracy of ± 2.4 mm at 30m and an ADS shock warning system that indicates if the tool's position has changed, the GRL 400 H prevents levelling errors and delivers consistently accurate results.

Equipment & Application

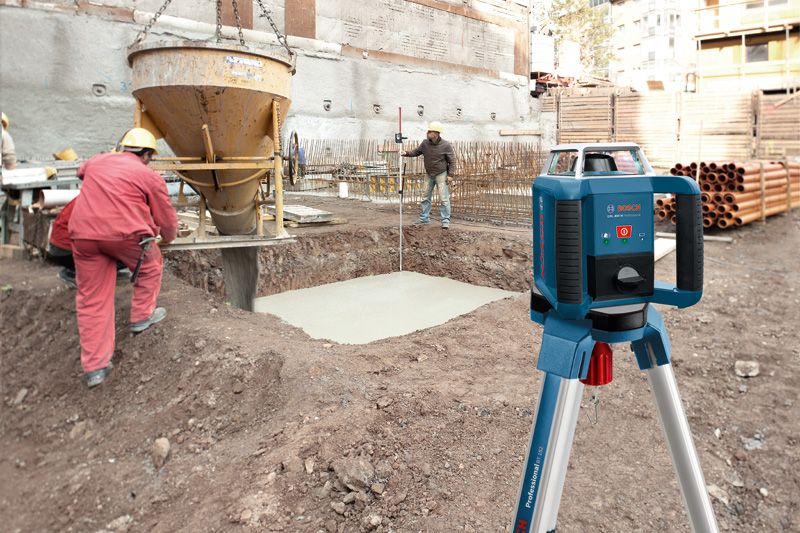

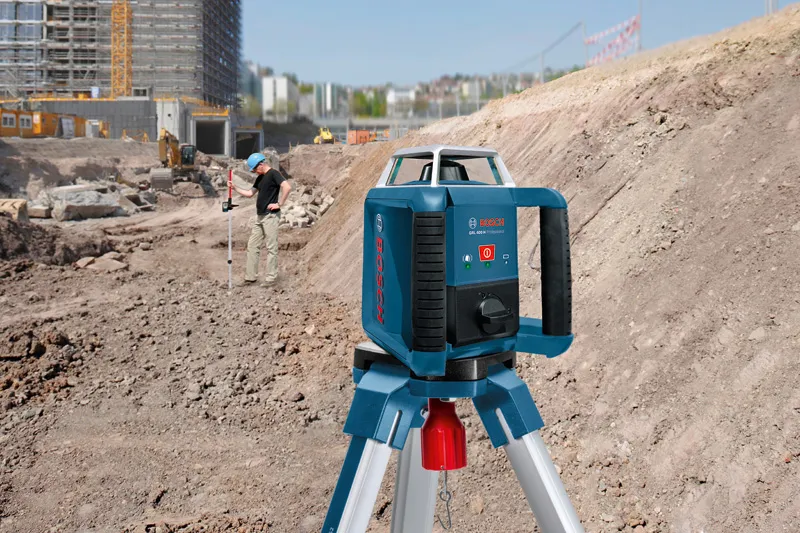

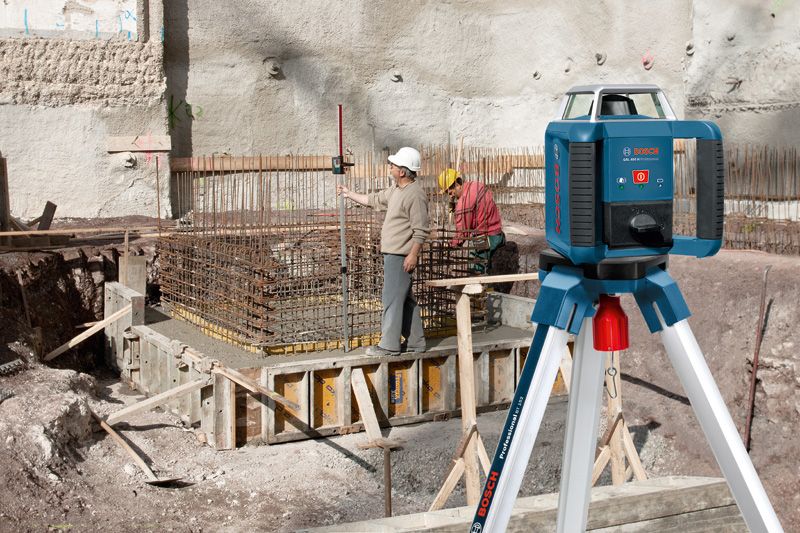

From determining cut and fill values for excavation and footings, to levelling concrete forms and landscaping, this tool does an excellent job. This rotary laser is prepared to withstand the harsh conditions of any outdoor jobsite thanks to its water and dust protection IP56.
