Jigsaw GST 90 BE Professional

Top-class convenience in the entry level class

Technical data
Additional data
Rated input power 650   W
Stroke rate at no load 500 – 3,100   spm
Weight 2.6   kg
Cable length 2.5   m
Tool dimensions (width) 80   mm
Tool dimensions (length) 332   mm
Tool dimensions (height) 212   mm
Cutting depth
Cutting depth in wood 90   mm
Cutting depth in aluminium 20   mm
Cutting depth in non-alloyed steel 10   mm
Total vibration values (Sawing wood)
Vibration emission value ah 8.5   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Sawing sheet metal)
Vibration emission value ah 6.5   m/s²
Uncertainty K 1.5   m/s²

Advantages

Top-class convenience in the entry level class

  • The reliable partner for day-to-day use
  • High level of convenience with Bosch “SDS” for easy, tool-free, two-hand saw blade changes
  • Switch with accelerator function for smooth pilot sawing of the material

Functions

No load speed 500 - 3100 min-1/rpm
Icon
Sawing in wood up to 90 mm
Saw blade pendulum action Adjustable 3-stage or 4-stage saw blade pendulum action.

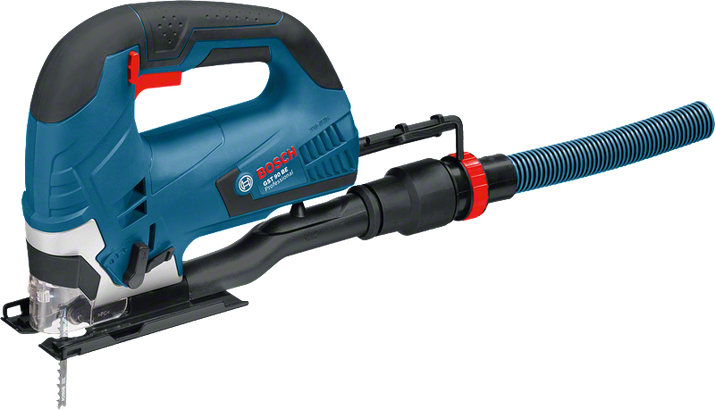

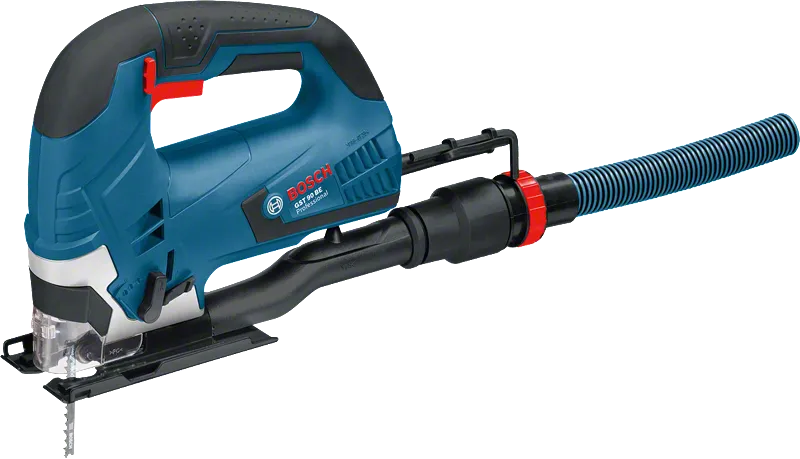

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
What’s Included in this Package

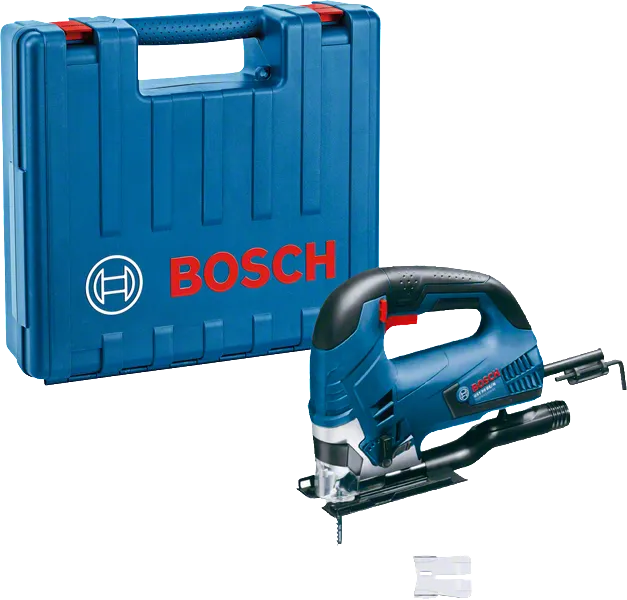

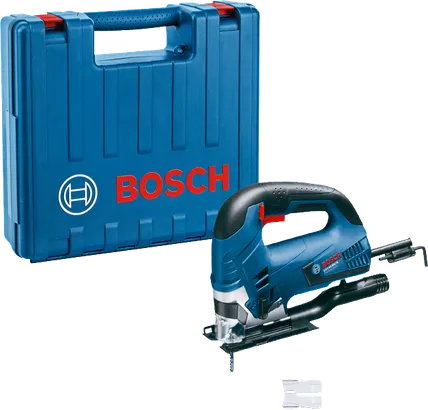

in carrying case with dust extraction accessory
in carrying case with dust extraction accessory
Order number: 0 601 58F 000
  • Dust extraction set (spare part number 1 619 P07 167)
  • Carrying case
  • Hex key WAF 5 (spare part number 1 907 950 006)
  • Anti-splinter guard (spare part number 2 601 016 065)
  • 1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560)
The GST 90 BE in action!
