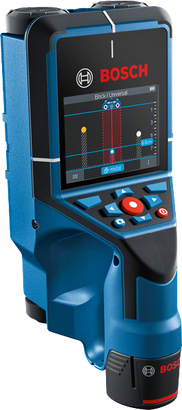

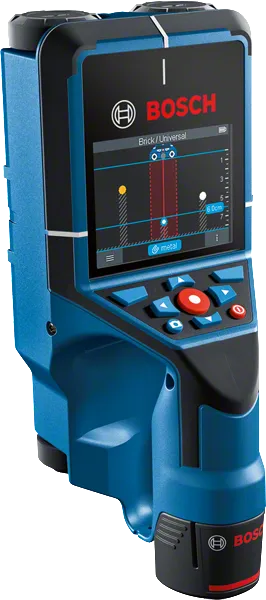

Wallscanner D-tect 200 C Professional
Detector
The wallscanner for exceptional results: top performance and easy documentation
- Bosch Radar Technology and modern user interface for precision, higher safety, and clear illustration of detected objects
- Multiple views flexibly offer best results in various situations

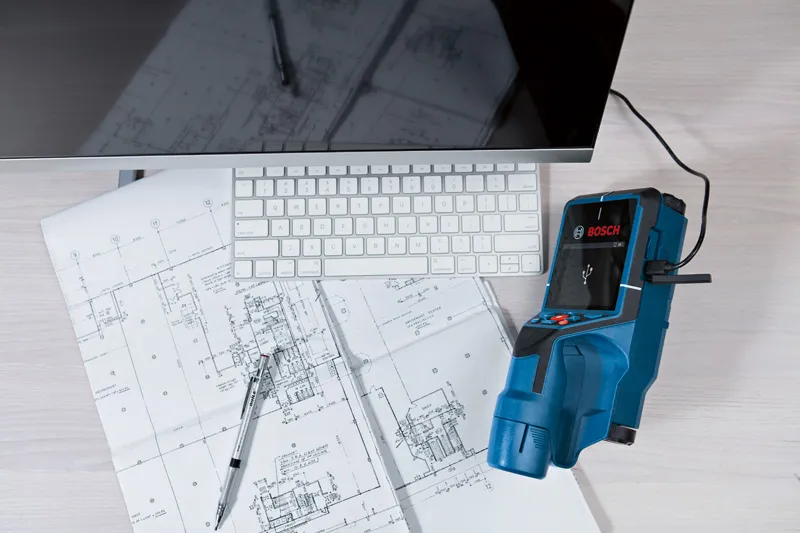

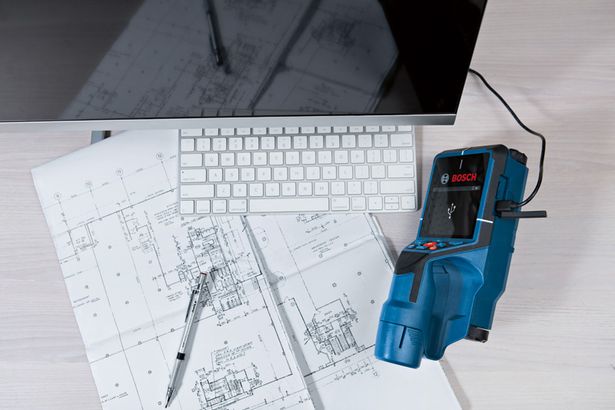

- Screenshot feature supports quick and easy documentation; screenshots are downloadable via USB-C® and SD card slot
Functions & key features
Your Selection
- with 4 x battery (AA), accessory set
Wallscanner D-tect 200 C Professional
Your Selection
Order number: 0 601 081 600

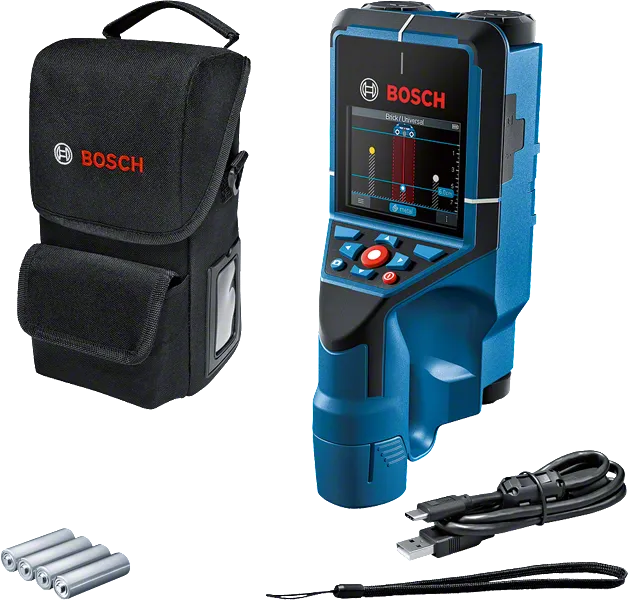

Included in this variant
-
Hand strap
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Battery adapter (1600A017HF/1600A017HH)
-
USB-C® Cable
Technical data
Additional data |
|
|---|---|
| Bosch Radar Technology | yes |
| Max. detection depth | 200 mm |
| Detectable objects | magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, Empty plastic pipes, water-filled plastic pipes, wooden substructures |
| Dust and splash protection | IP 5X |
| Battery voltage | 12.0 V |
| Detection depth, dry concrete, max. | 200 mm |
| Detection depth, early age concrete, max. | 60 mm |
| Detection depth, other wall types, max. | 80 mm |
| Detection depth, wooden substructures, max. | 38 mm |
| Accuracy | ± 5 mm* (*plus use-dependent deviation) |
| Views | Object view, Spot view, Signal View 2D, Signal View |
| Wall types | Brick/Universal, Concrete, Drywall, Panel Heating, Early age concrete, Horizontal coring brick, Vertical coring brick |
| Documentation via | USB-C, SD-Card |
| Updatable | yes |
| Material identification | Live cable, Magnetic metal, Non-magnetic metal, Non-metal material |
| Power supply | 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA), 4 x 1.2 V HR06 (AA) |
| Weight, approx. | 0.7 kg |
| Additional function | Leakage detection, distance measurement |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
Wallscanner D-tect 200 C Professional: Further information
Product Highlights
The D-tect 200 C Professional detects all common objects and illustrates them clearly, while making documentation easy. Equipped with Bosch Radar Technology and an improved user interface, it stands for safer and more precise construction work. Multiple views allow for conveniently choosing the best option for different applications, such as Spot View, that makes detection in hard-to-reach locations especially easy. To provide solid evidence, the wallscanner´s innovative screenshot feature enables quick documentation.
Equipment & Application

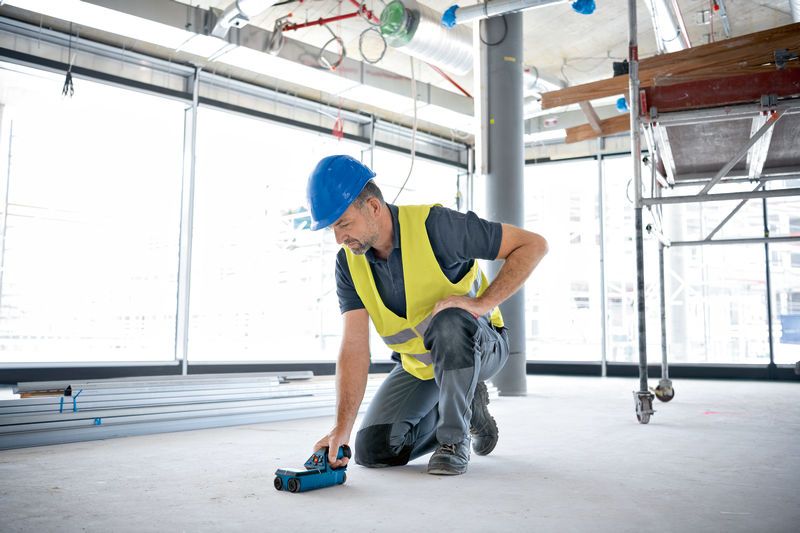

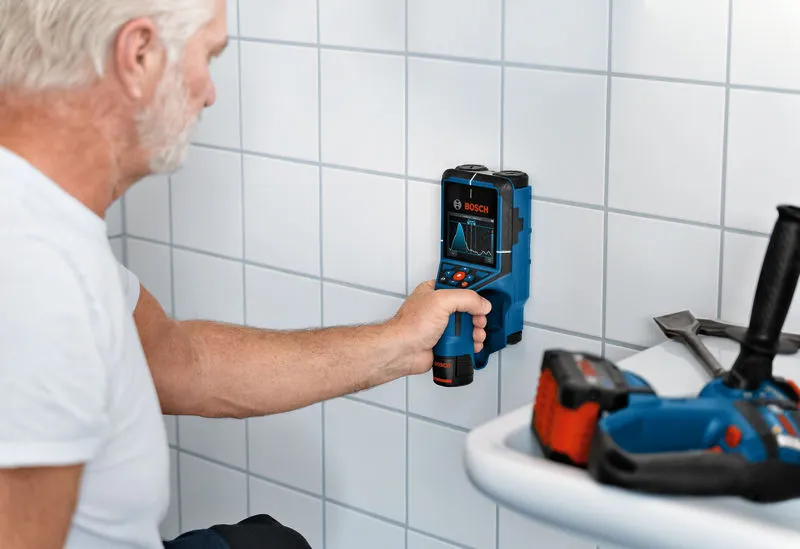

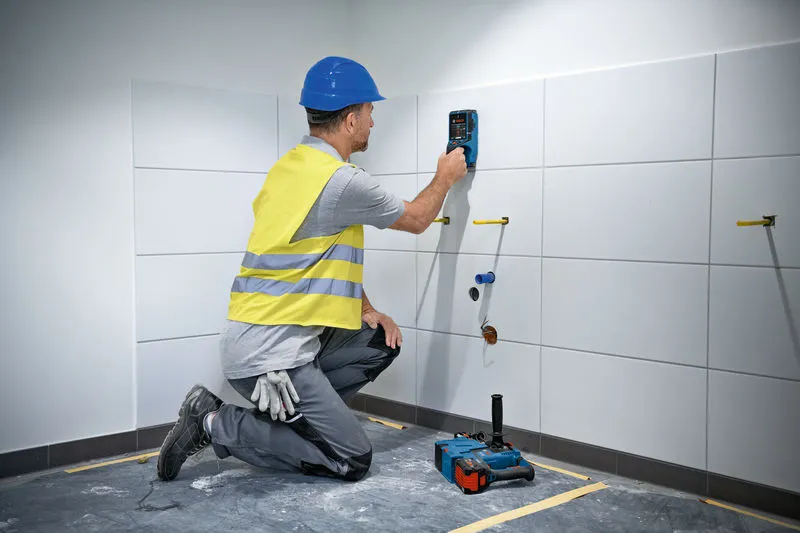

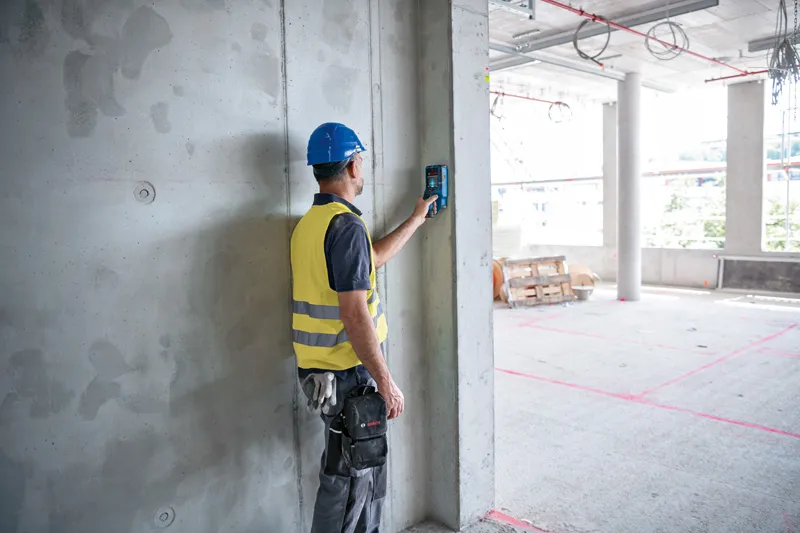

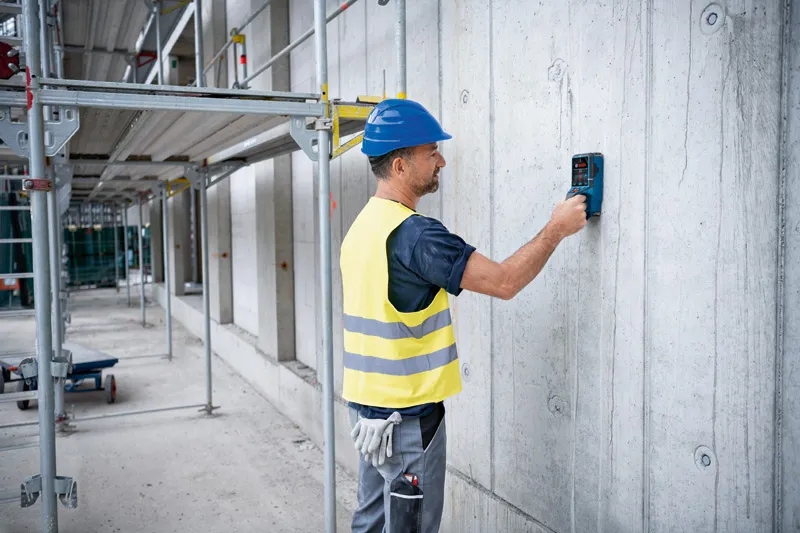

The D-tect 200 C Professional supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage.
Additional Information
The wallscanner detects objects in depths up to 20 cm and indicates the object´s depth.
